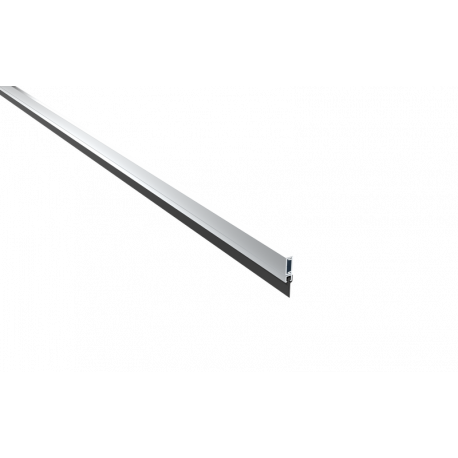

Pemko 29326_V Door Bottom w/ Aluminum Retainer & Vinyl Rubber Fin Seal

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$21.17

Details: Pemko 29326_V Door Bottom w/ Aluminum Retainer & Vinyl Rubber Fin Seal

The 29326_V Door Bottom features a concealed fastener design, an aluminum retainer, and a vinyl rubber fin seal that fills gaps up to 9/16". It effectively blocks dust, light, fire, smoke, and insects. The aluminum casing with a snap-on cover adds durability and convenience.

Features

  • Consists of vinyl rubber fin seal encased in a high quality aluminum retainer
  • Ideally suited for hollow metal and wood door applications
  • Slotted holes allow for adjustments during installation
  • Cover snaps securely into place to prevent vandalism
  • Aluminum snap cover conceals mounting screws to provide clean, aesthetic appearance
  • Economical bio-based material, contains no phthalates or heavy metals
  • Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
  • Meets the standards for compression and tensile strength, which provides exceptional energy-saving performance
  • Prevents air leakage
  • Plasticizers from renewable carbon sources, stabilizers are organic-based and zinc free
  • Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions
  • Certifications:- GREENGUARD Gold Certified, UL 4L10 listed, UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives, UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies, ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems

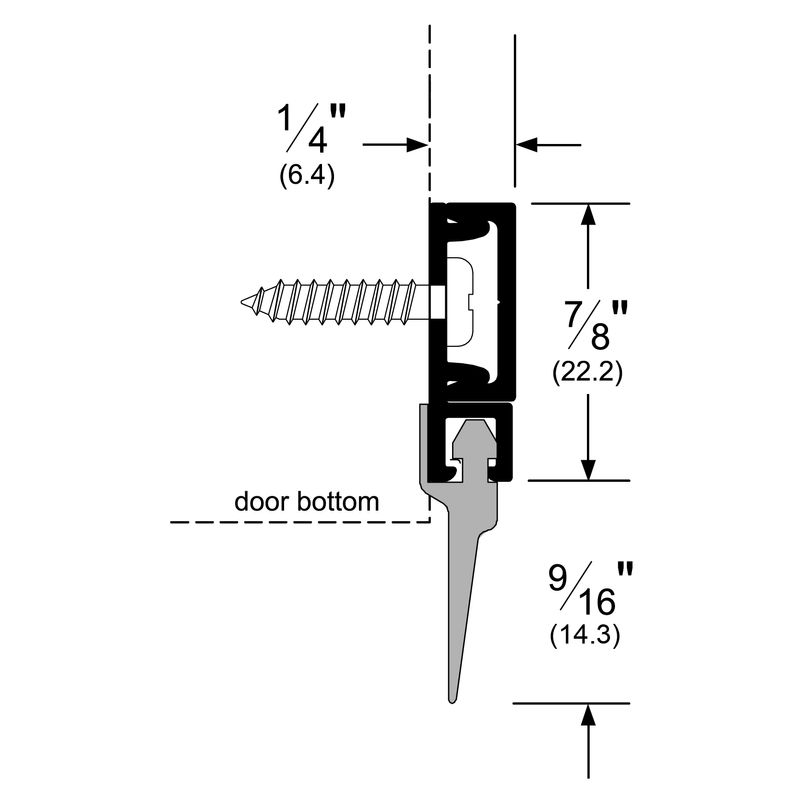

Specifications

Base Material
Aluminum
Fasteners
PHSMS No.6 x 5/8"
Overall Height
1 7/16"
Width
5/16"

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
