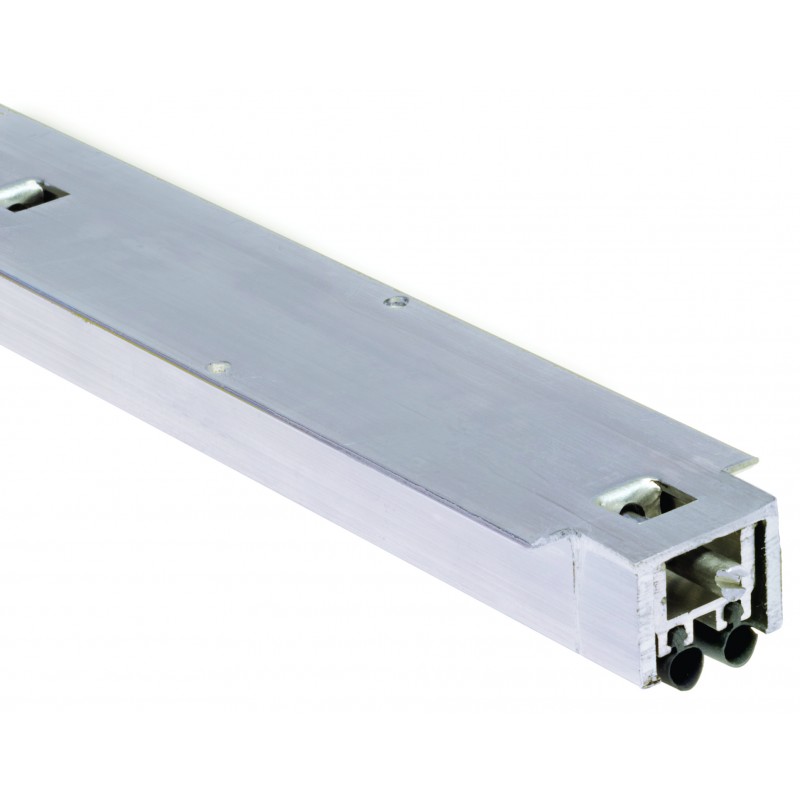

NGP 320S Aluminum Automatic Door Bottom with Silicone Seal

Model: 320S

Write a review

Item is normally shipped within 2-3 weeks from manufacturer. Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: NGP 320S Aluminum Automatic Door Bottom with Silicone Seal

Features

Aluminum alloy 6063, T5 temper
Synthetic rubber polymer: Siloxane
Excellent flexibility and memory
Flame resistant
Moisture resistant
Temperature range -100°F to 500°F, remains flexible at extreme temperatures
Excellent resistance to ozone, UV and aging
Recommended for areas using FM200 or Halon Fire Suppression Systems
BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration

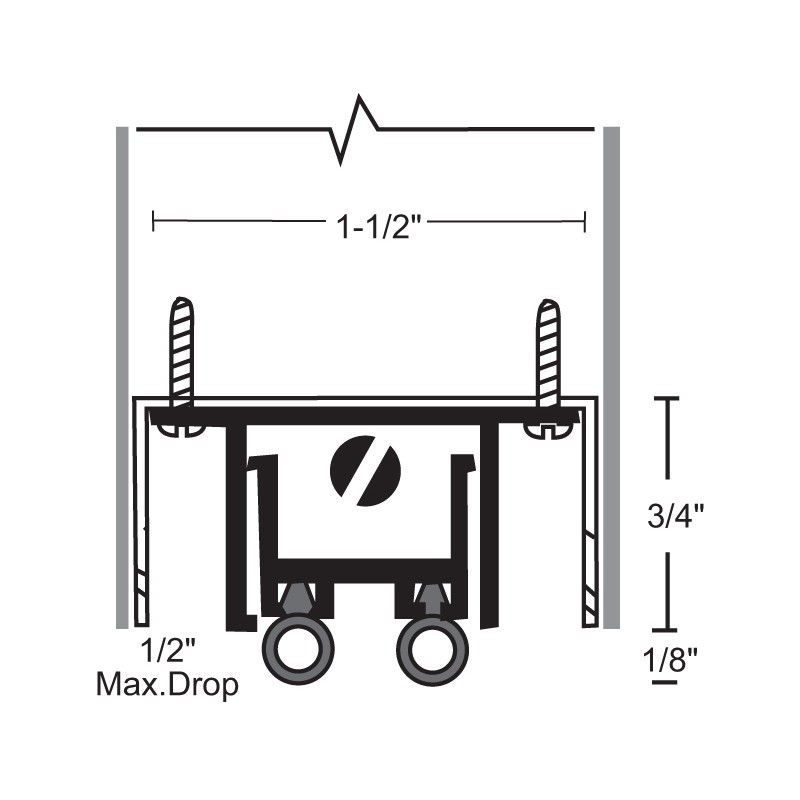

Fits in 1-5/8" × 3/4" channel. A "furring strip" may be used to lower automatic door bottom when a deeper channel is used
Furnished 1/2" shorter than ordered to fit within net door size. (i.e. 36" is furnished 35-1/2") Length may be field cut up to 4"
Fire ratings apply to metal doors only
#4 × 5/8" SMS furnished
End caps not available
Available 24" to 48" in length
1/2" max drop
Silicone is gray
Mill aluminum

Options

Standards

CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Downloads

National Guard Products Warranty

NGP LEED Recycled Content Percentage Chart

	Post-Consumer Recycled %	Pre-Consumer Recycled %
Aluminum Thresholds, Rain Drip Guards	18%	49%
Architectural Bronze Thresholds, Rain Drip Guards	70%	25%
Stainless Steel Thresholds, Rain Drip Guards	25%	3%
Rubber Ramps	0%	0%
Gasketing with Aluminum Retainers	13%	37%
Gasketing with Bronze Retainers	52%	19%
Gasketing with Stainless Steel Retainers	19%	2%
Self-Adhesive Gasketing	0%	0%
Finger Guard 2248	13%	37%
Finger Guard 2252	0%	0%
Metal Edge/Astragal sets (Steel)	25%	3%
Lite Kits & Louvers (Steel)	15%	5%
Aluminum Lite Kits & Louvers	18%	49%
Stainless Steel Lite Kits	25%	3%
Continuous Geared Aluminum Hinges	18%	49%
Stainless Steel Continuous Hinges	25%	3%
