National Guard Products

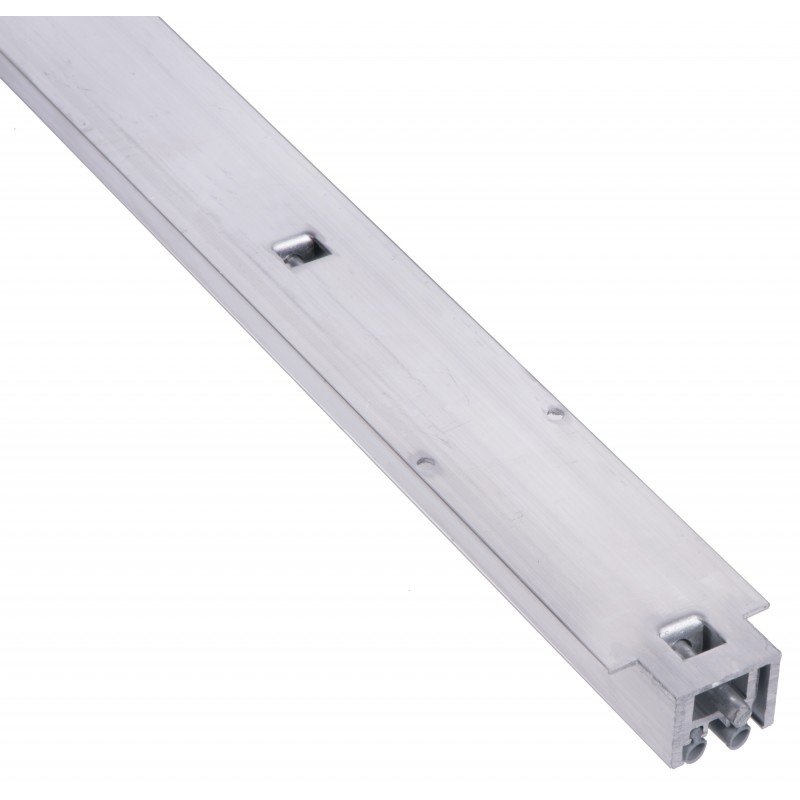

NGP 320V Vinyl Auto Door Bottom for Metal Doors with Vinyl Seal

320V

Item is normally shipped within 2-3 weeks from manufacturer. Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$104.28

20% Off

$130.35

Details: NGP 320V Vinyl Auto Door Bottom for Metal Doors with Vinyl Seal

Features

  • Aluminum alloy 6063, T5 temper
  • Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
  • Economical
  • Flame resistant
  • Moisture resistant
  • Temperature range 0°F to 140°F
  • Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration

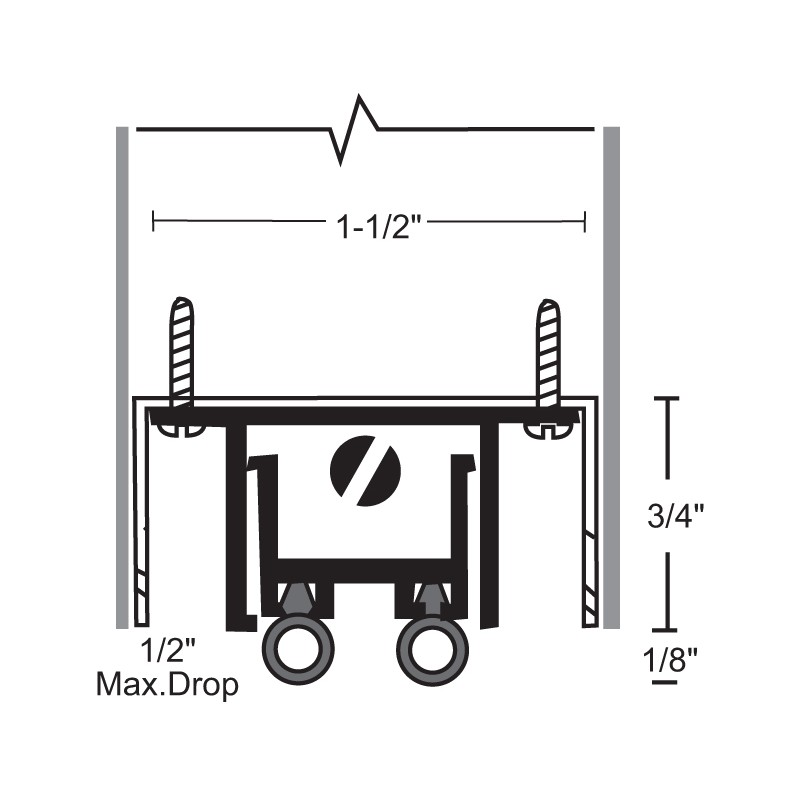

  • Fits in 1-5/8" × 3/4" channel. A "furring strip" may be used to lower automatic door bottom when a deeper channel is used
  • Furnished 1/2" shorter than ordered to fit within net door size. (i.e. 36" is furnished 35-1/2") Length may be field cut up to 4"
  • Fire ratings apply to metal doors only
  • #4 × 5/8" SMS furnished
  • End caps not available
  • Available 24" to 48" in length
  • 1/2" max drop
  • Vinyl is gray
  • Mill aluminum

Options

Standards

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
  • SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Downloads

NGP LEED Recycled Content Percentage Chart

Available Model Numbers and Combinations

Model/SKUAttributes
320V-36 36"
320V-48 48"
