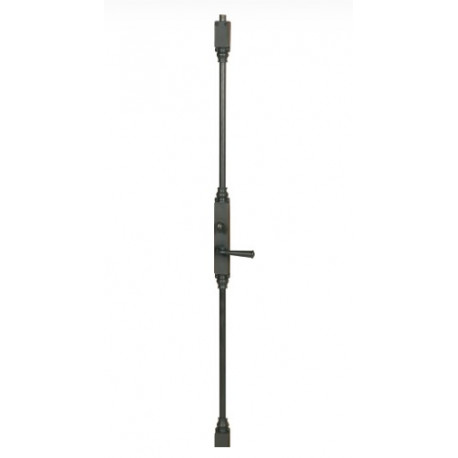

Von Morris 2700 Privacy/Locking Cremone Bolt For Door View larger

Von Morris

Von Morris 2700 Privacy/Locking Cremone Bolt For Door

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$2,497.53

Details: Von Morris 2700 Privacy/Locking Cremone Bolt For Door

Von Morris Cremone Bolts feature forged, solid brass case and guides with an internal mechanism of brass and stainless steel. The Locking Cremone case is very narrow, less than 1.5", for use on narrow stiles of French doors and windows. Cremone Bolt locks from the exterior with a rim cylinder and inside with a turnpiece. Cremone case contains a cassette mechanism that can be handed simply by reversing the cassette. The Cremone can also be easily changed from lever operation (90° rotation) to knob operation (180°) simply by relocating the spindle. Shoot Bolts are attached to the Cremone mechanism with machine screws. These machine screws are covered with interchangeable Frogs. Cremone Bolt design is very clean, featuring concealed Shoot Bolt guides. Various Frogs are available to allow you to suite the Cremone Bolt. Includes Art Deco Knob or Lever

Features

  • Solid Forged Brass
  • Hand Polished
  • Perfect for French Doors and Windows
  • Bolts can be used with any Von Morris Knob or Lever.
  • Locking Cremone Bolts lock from the exterior. Any appropriate Von Morris trim can be used on the outside.
  • Dummy (Non-Functioning) Trim is Available
  • Knobs, Levers and Trim Must be Ordered Separately

Guide and Frogs

  • End Guides have a flat spring operating on the front of the bolt to prevent rattling. The length of the Guide and placement of the spring conceals any scratches on the bolt caused by the spring. This End Guide design allows the bolts to be installed on the door and then cut to length at the job site. Two Frogs are attached to the ends of the Cremone case with #8 × 1.0" screws and hide the attachment of the Shoot Bolts. One Frog is attached to the end of each End Guide.

Specifications

Spindle Height
Standard spindle height is 42"
Standard Lengths
7', 8' and 10'. Other sizes by special order. Bolts can be cut to size at job site
Spindle
Cremones are supplied with a special spindle for double sided operation
Strikes
Cremone Bolts are supplied with Mortise and Universal strikes. Angle strikes and Box strikes are available at an additional cost
Length from end of Frog to end of Frog
10.04"
Width
1.463"
Height to edge of case
0.787"
Height to face of knob/lever boss
1.024"
Spindle hub to turnpiece spacing
2.250"
Spindle hub to cylinder spacing
2.467"
Knob
180° rotation
Lever
90° rotation
Knob Operation
1.00"
Lever Operation
0.75"

Downloads

2700 Privacy Cremone
