  6. ABH Hardware 1869 Universal Top Automatic Flush Bolt w/ Bottom Fire Bolt for Metal/Wood Doors
Reduced price! ABH Hardware 1869 Universal Top Automatic Flush Bolt w/ Bottom Fire Bolt for Metal/Wood Doors View larger

ABH Hardware

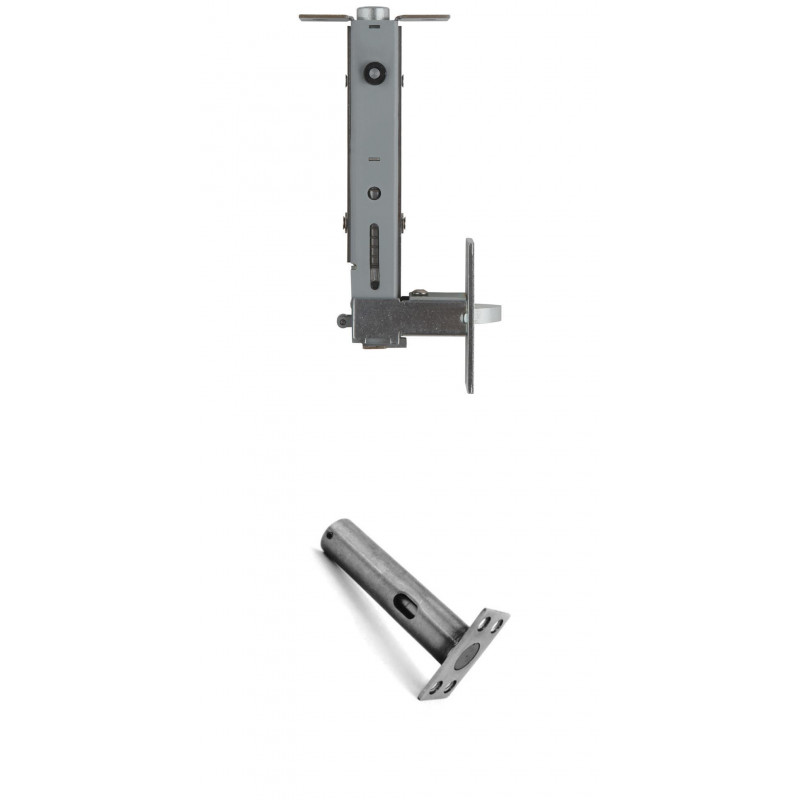

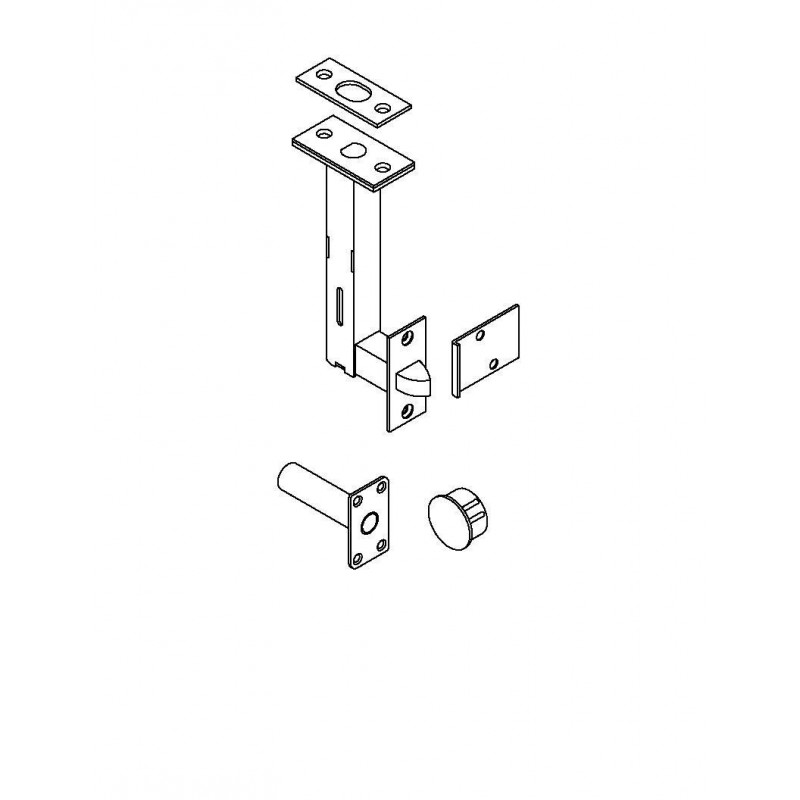

ABH Hardware 1869 Universal Top Automatic Flush Bolt w/ Bottom Fire Bolt for Metal/Wood Doors

1869

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$114.00

40% Off

$190.00

?

Details: ABH Hardware 1869 Universal Top Automatic Flush Bolt w/ Bottom Fire Bolt for Metal/Wood Doors

Features

  • Smaller profile adds stability to the door
  • Only two 1-1/8" diameter holes for easier door preparation
  • Preparation prevents the veneer from splitting at the corners of the door
  • Quiet & smooth activation
  • Fully automatic; opening active door retracts top bolt
  • Non-handed
  • Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike
  • Low (3 lbs. maximum) closing force. ADA Compliant
  • Adjustable Bolt Head Rod: bolts can be vertically adjusted 1/2" for unusual clearances
  • For up to 4'w × 8'h fire rated wood core & composite doors up to 20 minutes fire rating
  • UL Listed

Specifications

Material
Brass, Steel

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
1869US10B Dark Bronze, Not Included
1869US32DEXT-30 Satin Stainless Steel, 30", Not Included
1869US10BSEC Dark Bronze, Included
1869US32DEXT-30SEC Satin Stainless Steel, 30", Included
1869US10BEXT-18 Dark Bronze, 18", Not Included
1869US32DEXT-36 Satin Stainless Steel, 36", Not Included
1869US32DEXT-36SEC Satin Stainless Steel, 36", Included
1869US10BEXT-18SEC Dark Bronze, 18", Included
1869US32DEXT-48 Satin Stainless Steel, 48", Not Included
1869US10BEXT-24 Dark Bronze, 24", Not Included
1869US32DEXT-48SEC Satin Stainless Steel, 48", Included
1869US10BEXT-24SEC Dark Bronze, 24", Included
1869US26D Satin Chrome Plated, Not Included
1869US10BEXT-30 Dark Bronze, 30", Not Included
1869US26DSEC Satin Chrome Plated, Included

View All Model Numbers and Options
