Reduced price! Yale 8800FL Electrified Mortise Lock, w/ AR-PN-JN-VI Levers

View larger

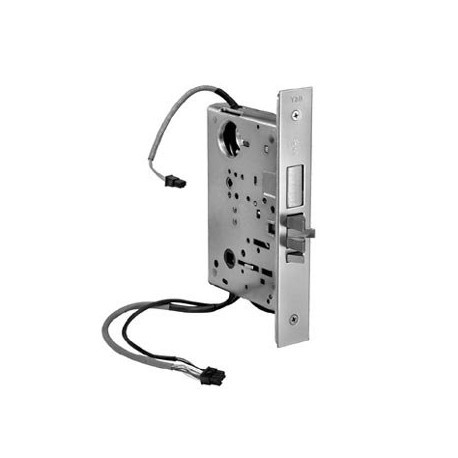

ACCENTRA (formerly Yale) 8800FL Series Electrified Mortise Lock w/ Standard Lever

Model:

Write a review

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$860.38

40% Off

$1,433.97

Quantity

Lever Design

Rose & Escutcheon

Function

Handing

Choose a Finish

MicroShield-Antimicrobial Coating

Keying

Request-To-Exit (REX)

Deadbolt Monitoring

Latchbolt Monitoring

Knurling/Abrasive Coating

Torx Security Screw

Details: ACCENTRA (formerly Yale) 8800FL Series Electrified Mortise Lock w/ Standard Lever

Features

Featuring EcoFlex:
Reduces energy consumption up to 92 percent as certified by GreenCircle
Lower operating costs
Assists with load reduction in optimizing energy performance credit in LEED
Reduces number of power supplies required
Field configurable to fail safe or fail secure
Operates from 12-24VDC, offering greater flexibility in system design
Innovative actuator design provides superior reliability
Higher performance and reduced maintenance
Ability to have longer cable runs without negatively impacting lock function
Reduces risk of voltage drops and eliminates inductive kickback
Lower total cost of ownership
Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon meet Security Grade 1).
Note: Operating voltage not to exceed +/- 10 pecent.

Specifications

Fail Safe/Fail Secure: Current draw: 15mA @ 12V or 24V Continuous, Peak current draw: 500mA @ 12V or 24V (Max 2 locks per 1A Power Supply), Monitor switch rating: 2A Max to 30VDC

Applications

Stair tower doors, office doors, classrooms, interlocks, elevator lobby doors, laboratories, computer rooms, cashier stations, hospital equipment rooms and pharmaceutical storage rooms.

ACCENTRA Commercial Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
8899FL x VIR5 x 693 LH	R5 (2-3/4") Rose, Black Painted,
8899FL x VIE3 x 612 RH	Satin Bronze w/ Clear Coated,
8894-2FL x ARR5 x 613E RH	R5 (2-3/4") Rose,
8894-2FL x ARR x 618 RH	R-Copenhagen Rose, Bright Nickel Plated w/ Clear Coated,
8894-2FL x PNR4 x 611 LH	R4 (2-3/4") Rose, Bright Bronze,
8894-2FL x PNR8 x 693 LH	R8 (2-3/16") Rose, Black Painted,
8894-2FL x JNR3 x WSP LH	R3 (2-3/4") Rose, White Suede Powder Coat,
8894-2FL x JNR7 x BSP LH	R7 (2-3/16") Rose, Black Suede Powder Coat,
8894-2FL x JNE4 x 619 LH	Satin Nickel Plated w/ Clear Coated,
8895-2FL x ARCN x 630 RH	CN-Camden Escutcheon, Satin Stainless Steel w/ Nickel Plated Lever,
8895-2FL x JNR5 x 613E LH	R5 (2-3/4") Rose,
8895-2FL x JNR x 629 RH	R-Copenhagen Rose, Bright Stainless Steel w/ Nickel Plated Lever,
8896-2FL x JNE3 x 613E LH
8896-2FL x VIR7 x 605 LH	R7 (2-3/16") Rose, Bright Brass w/ Clear Coated,
8897-2FL x ARR3 x 625 RH	R3 (2-3/4") Rose, Bright Chrome Plated,
