Reduced price! Von Duprin 4200 Series Electric Strikes for cylindrical and deadlatch locks in Satin Stainless Steel

View larger

Von Duprin 4200 Series Electric Strike for Cylindrical & Deadlatch Lock, Satin Stainless Steel

Model:

Write a review

Item is normally in stock and ships out within 10-15 Business days (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Von Duprin 4200 Series Electric Strike for Cylindrical & Deadlatch Lock, Satin Stainless Steel

Overview

The 4200 Series electric strikes are easy to order, configure in the field and install. This makes it a great choice for commercial applications where traffic control is the primary function.

Compatible with a wide range of cylindrical devices, the 4200 series makes electrifying an opening simple. It is designed and tested to work will all Schlage and Falcon cylindrical locks as well those of many other manufacturers'.

With a variety of field configurable options, the 4200 series is able to address a broad range of needs. The power failure mode (fail safe or fail secure) can be changed in the field without disassembling the strike. The 4200 series also features a 12/24 dual-voltage solenoid for field wiring of either input voltage.

Additional factory orderable options provide even greater flexibility. The 4200 series can be ordered with or without latchbolt monitor. Square face plate is offered standard to accommodate hollow metal frames, and rounded corner faceplates are available as an option for aluminum frames. An entry buzzer and rectifier kits are also available options.

The 4200 was developed with Von Duprin's high standards and engineering expertise. Its heavy duty stainless steel construction is designed to withstand abuse.

Features

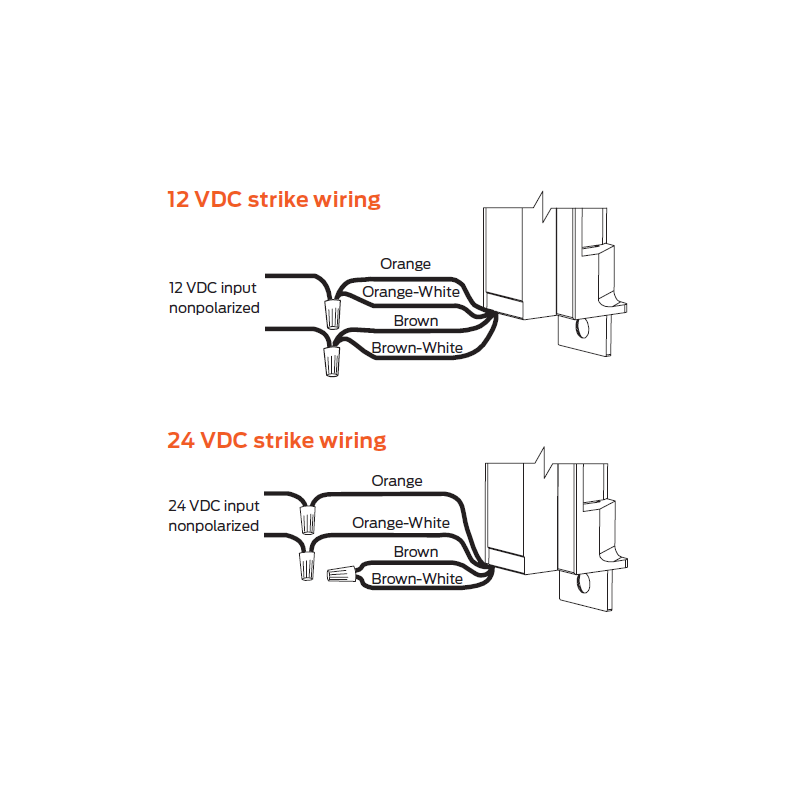

Field configurable 12/24 voltage utilizing dual-voltage internal solenoid
Field configurable power failure mode (fail-safe/fail-secure)
Non-handed, internal solenoid design
Heavy duty stainless steel faceplate
Latchbolt monitoring standard on 4212 only
Optional entry buzzer and rectifier kits available for AC to DC operation
1 year electrical product warranty

Lockset compatibility

The 4200 series is compatible with all Schlage and Falcon cylindrical locks as well as cylindrical and deadlatch locks of many other manufacturers.
The 4211 is compatible with locksets with 5⁄8" (15 mm) throw latchbolts, or up to 3⁄4" (19mm) throw latchbolts with a 1⁄8" door gap.
The 4212 is compatible with locksets with 1⁄2" (12.7mm) throw latchbolts, or up to 5⁄8" (15 mm) throw latchbolts with a 1⁄8" door gap.

Standard features

Power failure mode: Field configurable fail-secure/ fail-safe
Voltage: Field configurable 12 VDC/24 VDC dual voltage solenoid
Finish: 630 satin stainless steel

Technical specifications

Strike	12 VDC	12 VDC
Current (amps)	0.20 A	0.10 A
Latchbolt monitor	30 VDC
Current (amps)	0.20 A

Model specifications

Model number	4211	4212
Latchbolt throw	3/4"	5/8"
Latchbolt monitor switch	---	✓
Face plate length	4 7/8"	4 7/8"
Backbox depth	1 3/8"	1 3/8"

Lockset

Cylindrical	✓	✓
Deadlatch	✓	✓
Mortise	---	---
Rim exit devices	---	---

Number of doors

Single	✓	✓
Pair	---	---

Door and frame type

Hollow metal	✓	✓
Aluminum	✓	✓
Wood	---	---

Options

EB (entry buzzer - fail-secure only)	✓	✓
SO12 & SO24 rectifier kit for AC to DC operation	✓	✓
Round corner faceplate	✓	✓

Von Duprin Warranty

Electric Strike Wire Size Selection

Current Requirement at 24VDC
Length of wire run (in feet)	0-.5 Amp	.5-1 Amp	1-2 Amp	2-3 Amp
0-100	18	18	18	18
100-200	18	18	18	16
200-300	18	18	16	14
300-450	18	16	14	12
450-600	18	16	12	NR
600-900	16	14	NR	NR
900-1200	14	12	NR	NR
NR=Not recommended

6100 Series Electric Strike Cross Reference

Name	Strike/Lock mounting	# Doors	Frame material (SGL DR) Door Material (BL DR)	Faceplate length	Drop in replaces Von Duprin	Drop in replaces Folger Adam
6111	Rim device	Single¹	All	6"	3031
6112	Rim device	Single	All	9"		310-44
6113	Rim device	Single	All	6"	3011,3021
6114	Rim nightlatch	Single	All	7"		310-55
6121	Rim device	Double-closed back	All	9"		310-4-1005
6210	Mortise	Single	HM/Alu	4 7/8"
6211	Mortise or cylindrial	Single	HM/Alu	4 7/8"	3140	712
6211AL	Mortise or cylindrial	Single	Aluminum	4 7/8"		722
6211WF	Mortise or cylindrial	Single	Wood	4 7/8"		7326
6212	Mortise or cylindrial	Single	HM/Alu	6 3/8"	3146
6212WF	Mortise or cylindrial	Single	Wood	6 3/8"
6213	Mortise or cylindrial	Single	All²	6"	3041,42,61,62
6214	Mortise or cylindrial	Single	All³	9"		310-2 3/4
6215	Mortise or cylindrial	Single	All³	9"		310-2
6216	Mortise or cylindrial	Single	HM/Alu	9"		310-3-1
6221	Mortise or cylindrial	Double-open back	All	6"	3071,72
6222	Mortise or cylindrial	Double-open back	HM/Alu	9"		310-2 3/4 OB
6223	Mortise or cylindrial	Double-closed back	All	6"	3091,3092
6224	Mortise or cylindrial	Double-closed back	HM/Alu	9"		310-2 3/4
6224AL	Mortise or cylindrial	Double-closed back	Aluminum	9"		310-2 RF
6225	Mortise or cylindrial	Double-open back	HM/Alu	9"		310-2 OB
6226	Mortise or cylindrial	Double-closed back	HM/Alu	9"		310-2

¹Includes double door with mullion.

²Recommended on wood frames only if drop in replacement is needed for 3041,42,61,62 on wood frames. Otherwise use 6211WF.

³Recommended on wood frames only if drop in replacement is needed for 310-2 3/4,310-2 on wood frames. Otherwise use 6211WF.

⁴Strike lip area cutout is slightly larger than Folger Adam.

⁵Surface applied strike. Mounting hole locations different from Folger Adam.

⁶Wood frame horizontal solenoid location differs from Folger Adam. May require frame prep modification when retrofitting.

Finishes

US number	BHMA number	Description	Von Duprin number
US3	-	Plated polished brass on stainless steel	85
US4	-	Plated dull brass on stainless steel	84
US10	639	Plated dull bronze on stainless steel	06
US10B	640	Planted dark bronze on stainless steel	86
US32	629	Stainless steel,polished	31
US32D	630	Stainless steel,satin	32

Available Model Numbers and Combinations

Model/SKU	Attributes
4211 US32D	1/2"-3/4", Not Included, Not Included, Square Corner
4211 US32D EB	1/2"-3/4", Not Included, Included, Square Corner
4211 US32D S012	1/2"-3/4", Not Included, Square Corner
4211 US32D S012 EB	1/2"-3/4", Included, Square Corner
4211 US32D S024	1/2"-3/4", Converts 24 VAC to 24 VDC, Not Included, Square Corner
4211 US32D S024 EB	1/2"-3/4", Converts 24 VAC to 24 VDC, Included, Square Corner
4212 US32D	1/2"-5/8", Not Included, Not Included, Square Corner
4212 US32D EB	1/2"-5/8", Not Included, Included, Square Corner
4212 US32D S012	1/2"-5/8", Not Included, Square Corner
4212 US32D S012 EB	1/2"-5/8", Included, Square Corner
4212 US32D S024	1/2"-5/8", Converts 24 VAC to 24 VDC, Not Included, Square Corner
4212 US32D S024 EB	1/2"-5/8", Converts 24 VAC to 24 VDC, Included, Square Corner
