Reduced price! TownSteel FME 4000 RFID Electronic Intruder Classroom Mortise Lockset

View larger

TownSteel FME-4000 Grade 1 Standalone RFID Classroom Security Mortise Lockset

Model:

Write a review

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: TownSteel FME-4000 Grade 1 Standalone RFID Classroom Security Mortise Lockset

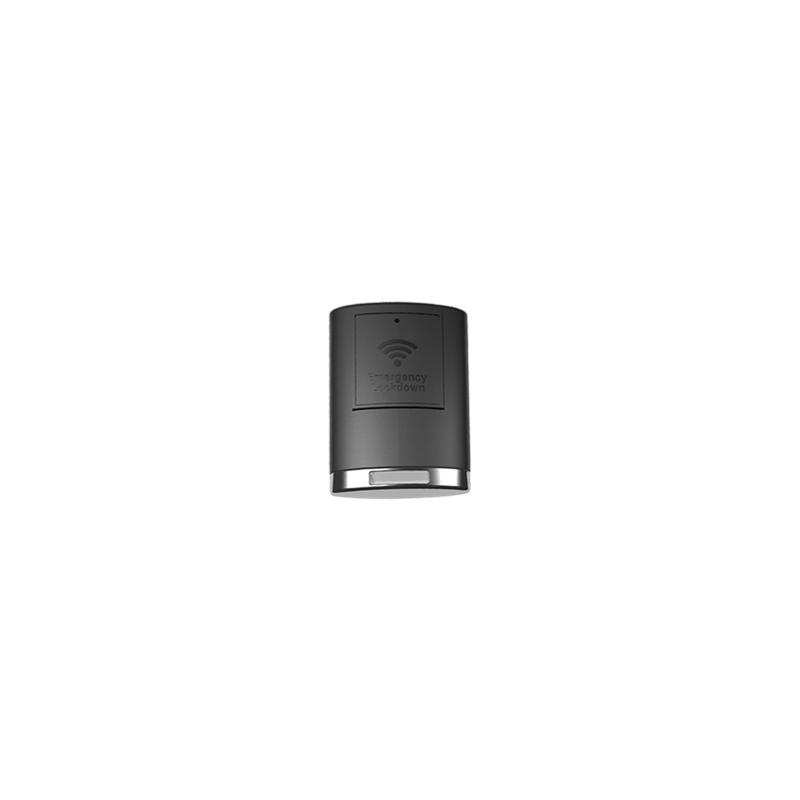

The FME4000 Series is a standalone electronic function lock that provides a RFID technology with the security afforded by using grade 1 heavy duty mortise lockset. It features classroom lockdown function for integration of School Safety Program. RFID technology simplifying the management of the system provides ease of use. Maximum keycard capacity includes 250 office keycards and user keycards, and 120 Remote Control Units per lock. Programming is quick and easy. See options for more.

Features

ELECTRONIC FEATURES
Capacity of User/Office Keycards per Lock:250
Capacity of Remote Control Unit (RCU) per Lock:120
Credential Verification Time:Less than 0.5 second
Keycard Maximum Read/Write Distance:3/4"
RCU Minimum Working Distance:75 feet
Communication:Multi-colored LED indicator and sound
Power Supply:4AA batteries
Battery Life:Up to 2 years
Operating Temperature:-31 to 151 F (-35 to 66C

Specifications

MECHANICAL
Door Thickness: 1-3/4"standard, others upon request
Backset: 2-3/4"
Trim: Outside lever is rigid when locked
Latch Bolt: Stainless Steel, split, anti-friction, 3/4" projection
Guard Bolt: Stainless Steel
Faceplate: Stainless Steel, 1-1/8" × 8"
Strike: ASA Strike standard, 1-1/4" × 4-7/8"
Escutcheon: Wrought steel or zinc alloy, plated to match finish symbols
Lever: Forged brass or cast zinc, plated to match finish symbols
CYLINDER: 6 pin Schlage "C" Keyway, standard<br>Small Format IC with or without core available, 6 or 7 pin core, Best "A" keyway<br>Schlage Large Format ICless core available<br>Corbin Large Format IC less core available, for 6 pin core
CODE COMPLIANCE
ANSI/BHMA A156.13: A156.13-2012 Grade 1 certified
ANSI/BHMA A156.25: Meets or exceeds all applicable requirements
UL/ULC: UL 10C 3-hour rated
BAA: Meets guidelines of the Buy American Act
ADA: Meets requirements of the Americans with Disabilities Act
RoHS: Meets requirements of EU RoHS Directive 2002/95/EC
FCC: FCC part 15 certified

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Cut Sheet

Videos

TownSteel Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
FME-4040626SRCUIC7TLRB300TLBR600	Satin Chrome, Not Included,
FME-4040626PPSRCUIC7TLBR200TLBR300	Satin Chrome, Included,
FME-4040626PPQKeyIC6TLRB300TLBR400	Satin Chrome, Included,
FME-4040622SIC7TLRB300	Flat Black, Not Included,
FME-4040622QRCUKeyIC7TLRB300TLBR300	Flat Black, Not Included,
FME-4040622PPSIC7TLBR400TLBR400	Flat Black, Included,
FME-4040622PPSRCUTLBR100TLBR600	Flat Black, Included,
FME-4040622PPQRCUKeyTLBR100TLBR300	Flat Black, Included,
FME-4010626QTLBR300	Satin Chrome, Not Included,
FME-4010626QKeyIC6TLRB300TLBR600	Satin Chrome, Not Included,
FME-4010626QRCUKeyTLBR100TLBR300	Satin Chrome, Not Included,
FME-4010626QRCUKeyIC7TLBR200TLBR400	Satin Chrome, Not Included,
FME-4010626PPSRCUTLBR200TLBR400	Satin Chrome, Included,
FME-4010626PPQIC6TLBR100TLBR400	Satin Chrome, Included,
FME-4010622SIC6	Flat Black, Not Included,
