Sugatsune LIN-X800 Lateral Door Opening System

View larger

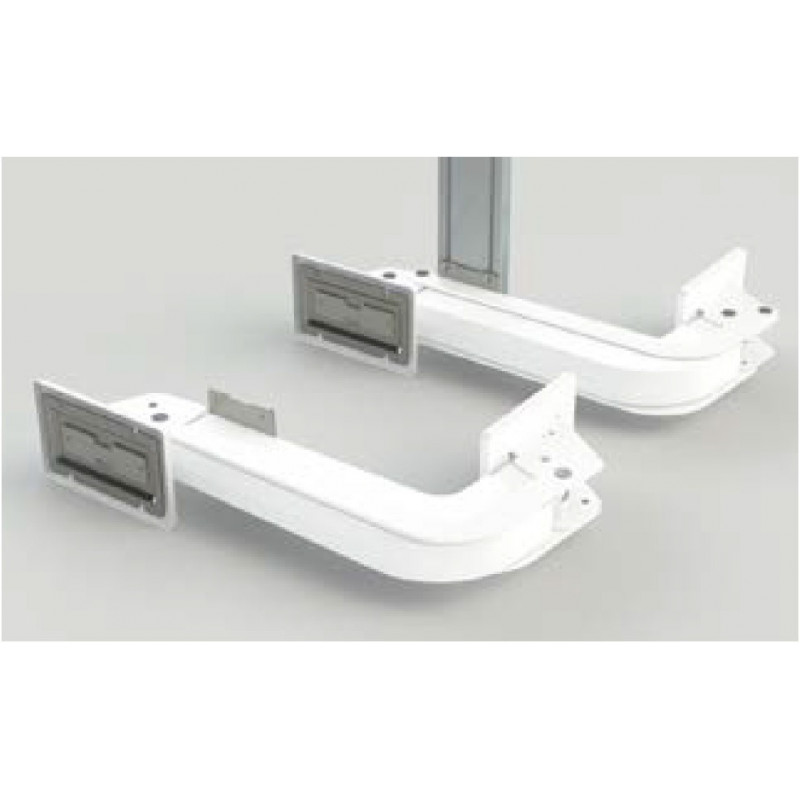

Sugatsune LIN-X800 Lateral Cabinet Door Opening System

Model:

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sugatsune LIN-X800 Lateral Cabinet Door Opening System

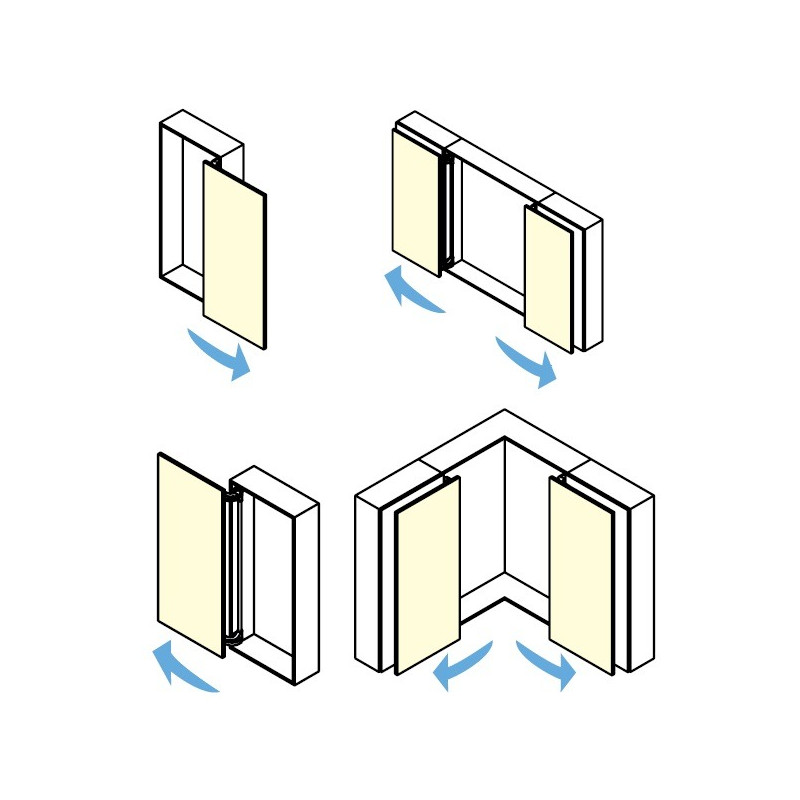

Not all doors swing alike, this one is designed to swing out. The Lateral Door Opening System ensures doors swing smoothly within a minimal radius, making it ideal for tight spaces and great for Universal Design planning.. It includes a soft-close mechanism to prevent slamming, enhancing usability and durability. Its 4-way adjustability-horizontal, vertical, depth, and parallel-ensures precise installation for various setups. It's a versatile and reliable door-opening system designed for 88 lbs and 94.5 inches tall doors. The Sugatsune LIN-X800 stands out for its compact, efficient lateral system tailored to modern functional needs. Get it now at Sugatsune.

Specifications

Material: Steel, Aluminum
Weight of Item (g): 17937
Length or Depth of Item when closed (in): 8.6875
Height of Item (in): 82.5625
Width of Item (in): 21.125
Max. Door Height (in): 94.5
Max. Door Width (in): 33.4375
Min. Door Width (in): 29.5
Max. Door Thickness (in): 1.5625
Min. Door Thickness (in): 0.9375
Max. Door Weight (lbs): 88
Soft Closing: Y
Are Fasteners Included: Y
Are Fasteners Required: Y
Fasteners Size: 6 x 25mm, M5 x 10, M5 nut
Fasteners Type: Self tapping screw,Truss head screw,Fastening nut
Is RoHS Compliant: RoHS 3

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
