Sugatsune DC-200 Damper Catch

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$39.30

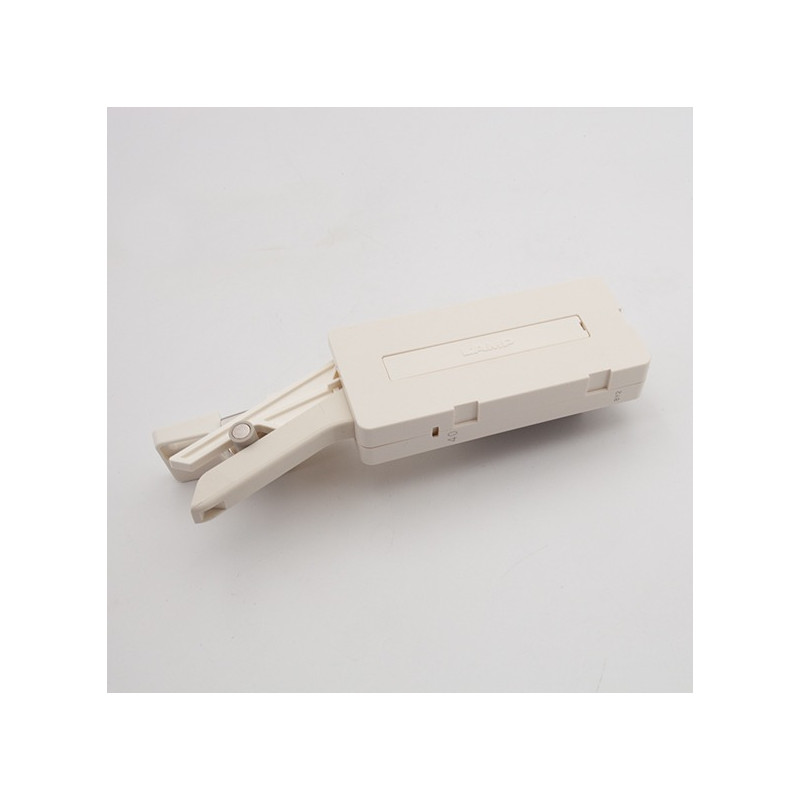

Details: Sugatsune DC-200 Damper Catch

Features

  • Damper and catch combination for sideways opening doors.
  • Prevents doors from slamming.
  • Holds doors in closed position.
  • Easy to install by simply aligning body with the interior wall.
  • Non handed.
  • Can handle doors up to 40 kg. (When using DC 200 40).
  • Passed 50,000 open/close cycles in a private test.

Specifications

Material
Plastic (PC)
Weight of Item (g)
105
Length or Depth of Item when closed (in)
2.0625
Height of Item (in)
0.75
Width of Item (in)
6.25
Max. Door Height (in)
94.5
Max. Door Width (in)
35.4375
Min. Door Width (in)
17.75
Max. Door Weight (lbs)
51
Soft Closing
Y
Are Fasteners Included
Y
Are Fasteners Required
Y
Fasteners Size
4 X 30, 3.5 X 30
Fasteners Type
Cross Binding Head Screw
Strike can be adjusted post installation
horizontally - plus or minus 5 mm, vertically - plus or minus 4 mm.

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Catalog

Available Model Numbers and Combinations

Model/SKUAttributes
DC-200-25WT White, 15 - 55 lbs
DC-200-25BL Black, 15 - 55 lbs
DC-200-40WT White, 55 - 88 lbs
DC-200-40BL Black, 55 - 88 lbs
