Reduced price! Schlage RCK15 Wall Mount IP Reader Controller w/ Keypad

View larger

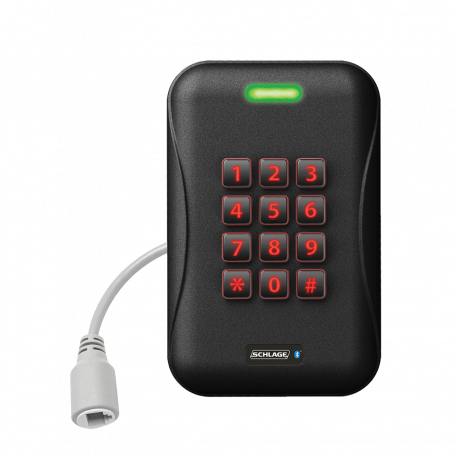

Schlage RCK15 Wall Mount IP Reader Controller w/ Keypad

Model:

Write a review

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Schlage RCK15 Wall Mount IP Reader Controller w/ Keypad

The RCK15 wall mount with keypad is a next-generation IP reader controller designed for scalable and flexible real-time access control in perimeter and high security applications. The all-in-one device leverages the comprehensive ecosystem from Schlage and offers simplified architecture, installation and integration into open PACS solutions, including Pure Access Cloud.

Features

Electronics bring more visibility and control to the opening
Communication is secured using industry standard TLS 1.2 encryption
Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader
Accommodates interior, exterior, metal and non-metal installation environments
Commission via ENGAGE mobile app for easy configuration
Local mode results in faster response times, less network traffic and reduced host system loading
Connects to existing IT networks via a single PoE cable, reducing install time by eliminating need to run separate power to the door
Three configurable inputs; Door Position (DPS), Request to Exit (REX), and Auxiliary (AUX)
Designed with technology to support Bluetooth, NFC and smart credentials for flexible migration paths
The Schlage RCK15 IP reader controller will read Schlage Mobile Bluetooth Credentials, industry-leading smart credentials as well as proximity credentials. When installed as part of a proximity credential based system, the multi-technology reader will enable you to step up over time to more secure and versatile smart or mobile technology.
The Schlage RC reader controller is designed to work in open physical access control software (PACS) systems including Pure Access Cloud.
10/100 Ethernet, half or full duplex
Cat5e, Cat6 or better cable
Network host or client modes supported
DHCP addressing supported
LED signal for reader status
On/off audible indicator
FCC Certification
IC Certification
UL294 V7 / cUL Listed
RED Directive
CE Mark
IP65
REACH
Bluetooth SIG
RoHS 3

Specifications

Power option: Power over Ethernet (PoE), (IEEE 802.3af, Class 0)
DC power: 10-13 VDC; please note: 24 VDC is not approved for this device
Operating temperatures: -31 deg. F to 151 deg. F (-40 deg.C to 66 deg. C)
Host mode: real time connectivity; unlimited credentials, events, time schedules, and holidays capacity
Local mode: decisions made at the device when connection is offline or configured to local; 64,000 credentials, 5,000 events and 32 time schedules

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
