RCI P 125 kHz Readers

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$136.19

44% Off

$243.20

Details: RCI P 125 kHz Readers

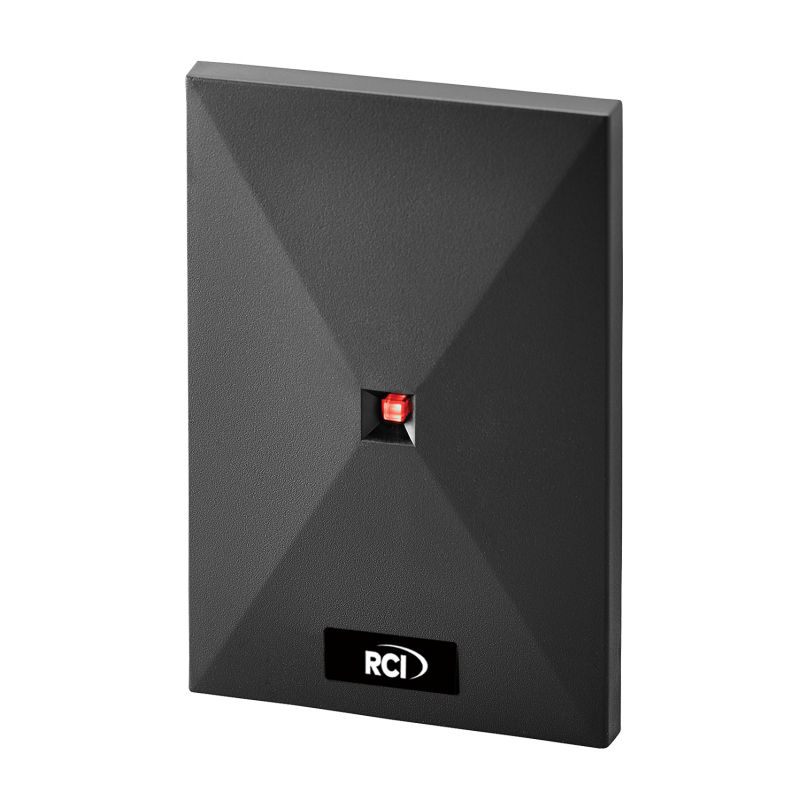

RCI Pyramid P-300-H-A and P-500-H-A sets the electronic security benchmark for 125kHz proximity readers. Based upon proven contactless digital radio frequency identification (RFID) technology, RCI Pyramid readers interface with a wide range of electronic access control systems by complying with either the legacy Wiegand or the latest bi-directional Open Supervised Device Protocol (OSDP). They offer value-add features such as MAXSecure™, fleaPower™ and can support several proximity card and tag technologies.

  • MAXSecure a unique security feature
  • Contactless read range up to 5 inches
  • Limited lifetime warranty
  • Mullion mount (P-300-H-A)
  • Single Gang mount (P-500-H-A)
  • Wiegand or ODSP output interface
  • fleaPower energy conservation technology
  • Suitable for indoor and outdoor use

Technical data

P-300-H-A

  • Technology: 125 kHz standard security mini mullion reader
  • Dimensions: 1.7" W × 3.2" H × 0.7" D (43 mm × 81 mm × 18 mm)
  • Weight: 3 oz (85 g)
  • Current draw: 30 mA typical, 75 mA peak @ 12 VDC
  • Voltage: +5 to 16 VDC
  • LED: Four-state standard (red, green, amber, and off)

P-500-H-A

  • Technology: 125 kHz standard security reader
  • Dimensions: 3" W × 4.6" H × 0.4" D (76 mm × 117 mm × 10 mm)
  • Weight: 4 oz (113 g)
  • Current draw: 35 mA typical, 75 mA peak @ 12 VDC
  • Voltage: +5 to 16 VDC
  • LED: Four-state standard (red, green, amber, and off)

Applications

  • These readers are suitable for interior or exterior doors and entrance systems in virtually all applications Retail and Commercial; Industrial; Education, Healthcare facilities and more.
