Reduced price! Sargent 6500 Cylindrical Lever Lock

View larger

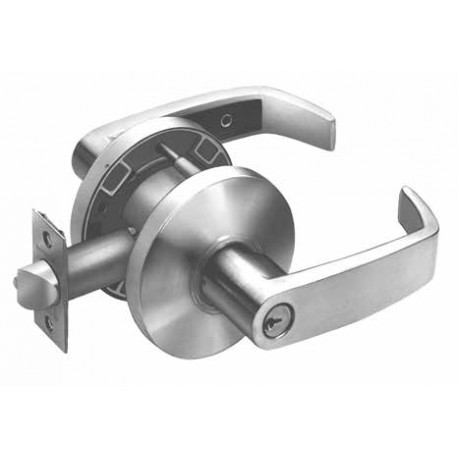

Sargent 6500 Series Cylindrical Lever Lock w/ Lever & K Rose

Model:

Write a review

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sargent 6500 Series Cylindrical Lever Lock w/ Lever & K Rose

The 6500 Series is a standard lever duty lock designed for increased usability. Created to exceed ANSI/BHMA Grade 2 standards, this lock is non-handed, installs easily, and is available in eight functions and six different finishes to match existing facility aesthetics.

Features

Available in 8 functions and 8 finishes
Non-handed
Certifications - ANSI/SDI 250.13 Certified, ASTM E330 Certified, Florida Building Code Approved FL 2998, Americans with Disabilities Act (ADA) Compliant, UL-cUL Fire-Rated Up to 3 Hours, ASTM E1996 Certified, ASTM E1886 Certified, NFPA 80 Compliant, TAS 201 Certified, TAS 202 Certified, TAS 203 Certified, ICC A117.1 Compliant, ANSI/BHMA A156.41, ANSI/BHMA A156.2, Series 4000, Grade 2

Specifications

For Doors 1-3/8" (35mm) to 1-3/4" (44mm) only
Backset: 2-3/4" (70mm) standard, 2-3/8" (60mm) optional (20- option)
Cylindrical Housing: Steel zinc dichromate finish
Front: Wrought brass and stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm)
Strike: 800 Curved Lip, Brass or Stainless Steel Standard, 808 ANSI Curved Lip available (28- option), 505 Full Lip strike available (14- option)
Hand: Universal, non-handed
Latch: Brass 1/2" (13mm) throw
Keys: Two, nickel silver
Cylinder: Brass, 6- pin, LA keyway standard
Door Prep: ANSI/BHMA A156.115
Minimum Stile: 4-1/2" (114mm)

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

Sargent Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
65 U15x 03 KBLHR	Passage, B Lever Design,
65 G04x BSP KPRHR	Black Suede Powder Coat, P Lever Design,
65 G37x 03 KPLHR	Classroom, P Lever Design,
65 G15-310B KPLHR	P Lever Design,
65 U15x 10BE KPLH	Passage, P Lever Design,
65 U15x 04 KLLHR	Passage, L Lever Design,
65 U1510B KPRHR	Passage, P Lever Design,
65 G04x 04 KBRHR	B Lever Design,
65 G05x 04 KLRHR	L Lever Design,
65 G3710B KBRHR	Classroom, B Lever Design,
65 G15-3x BSP KBLH	Black Suede Powder Coat, B Lever Design,
65 U94x 26D KPLH	Satin Chrome, P Lever Design,
65 G15-3x 10BE KPRHR	P Lever Design,
65 U93x BSP KPLH	Black Suede Powder Coat, P Lever Design,
65 U94x 10BE KLRHR	L Lever Design,
