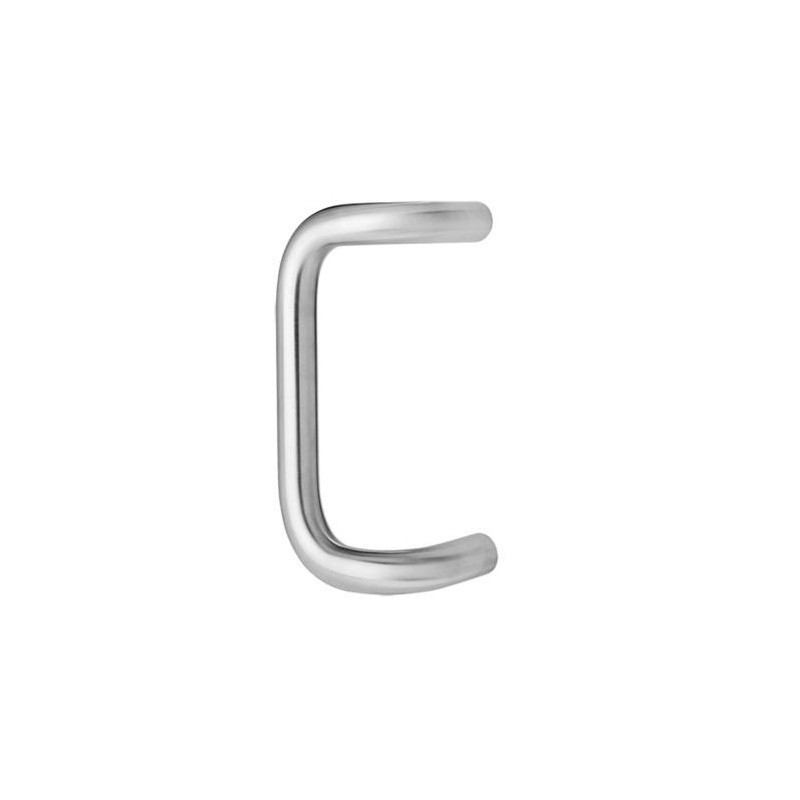

Rockwood TBF15 90D Offset Tubular Door Pull, Barrier Free 2-1/2" Clearance

Model:

Write a review

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Rockwood TBF15 90D Offset Tubular Door Pull, Barrier Free 2-1/2" Clearance

Years of prestigious experience. Legends in the door hardware and industry. Countless developments forging the foundation upon which Rockwood produces their most recent products. Founded in Pennsylvania in the 1940's. The American tradition of Rockwood keeps many people out of places they don't belong. The TBF157 offers a sturdy grip and sleek design for any door. Provided with an outstanding Warranty, high levels of satisfaction, this item is sure to please for many years.

Specification:

Material: Brass, Bronze, or Stainless Steel

Fastener: 1/4 -20 × 2-1/4 Thru Bolt & Finish Washer standard 1-3/4" door).

Option:

Back to back mounting in pairs - use BTB suffix and mounting type number (TBF156BTB16).
Concealed mounting single pulls - use C suffix and mounting type number (TBF156C17).
Advise if door thickness is other than 1-3/4".

Feature:

Recommended for ADA openings.

Material Size: 1" dia.

CTC: 8"

Overall: 9"

Base: 1"

Offset: 4"

Weight: 1.3 lbs.

ANSI A156.6: J402

Warranty Information

Here

Rockwood Mfg Warranty

Rockwood Door Pulls Cross Reference Chart

Rockwood Part No.	Description	Burns	Donjo	Hager	Hiawatha	Ives	Trimco
47-PB	Push Bar	422	147	130S	1081 LPB	9100	1741
90	Combination Plate	100	1874	121L	D251	---	1821
91-RKW	Combination Plate	89	---	120L	1456	---	1820
94	Flush Pull	459	1848	15N	1459	---	1115
106-RKW	Door Pull	25A	15	3E	523E	8102-6	1194-1
107	Door Pull	25B	16	3G	523A	8102-8	1194-2
110-RKW	Door Pull	26B	19	4G	535B	8103-8	1195-1
111-RKW	Door Pull	26C	20	4J	536B	8103-0	1195-2
112	Door Pull	26D	21	4L	537B	8103-2	1195-3
122-RKW	Door Pull	20A	30	2E	559A	8105-6	1139-1
123	Door Pull	20B	31	2G	559	8105-8	1139-2
130-RKW	Door Pull	14	36	7N	---	8113-5	1102T
131-RKW	Door Pull	16	35	8N	---	8112-5	1102S
132-RKW	Door Pull	---	10	6N	5 1/2 P	8111	1117-1
137	Door Pull	12	---	5N	5 Series	8114-5	1109-1
193	Door Pull	19	44	19N	1458A	8121	1134
290	Corner Guard	---	1290	185G	---	---	---
295	Corner Guard	---	1290	185G	---	---	---
308	Door Edge	306	---	181H	DE-1AJ	7308	KE35-1
309	Door Edge	307	---	181K	DE-2AJ	7309	KE36-1
310	Door Edge	308	---	181M	DE-3C	7310	KE37-1
311	Door Edge	309	---	181Q	DE-4CJ	7311	KE38-1
400	Wall Stop	560	1412	230W	---	WS402CVX	1270CXCP
403	Wall Stop	565	1413	234W	---	WS402CCV	1270CVCP
406	Wall Stop	570	1406	232W	---	WS407CVX	W1276CS
409	Wall Stop	575	1407	236W	---	WS406CCV	W1276CCS
441	Dome Stop	510	1440	241F	---	FS438	1210
442	Dome Stop	520	1442	243F	---	FS438	1212
443	Dome Stop	520	1443	243F	---	FB17	1212
449	Dome Stop Riser	525	1446	246B	---	R435	1210AR
455	Straight Roller Stop	632	1488	273W	---	RS470	1245
456-RKW	Straight Roller Stop	630	1486	272W	---	RB471	1244
467-RKW	Floor Mount Door Stop	---	---	---	---	FS18L	---
470	Floor Mount Door Stop	535	---	267S	---	FS448	1201
471	Floor Mount Door Stop	535	1471	267F	---	FS444	1201
473	Floor Mount Door Stop	536	1473	268F	---	FS446	1224-5
475	Floor Mount Door Stop	530	1475	255W	---	WS11X	1205
476	Floor Mount Door Stop	531	---	256W	---	WS449	1207
477	Floor Mount Door Stop	531	1477	256W	---	WS445	1207
485	Floor Mount Door Stop	529	1453	258F	---	FS451	1234
490	Floor Mount Door Stop	533	1514	326W	---	WS40	1254
491-RKW	Floor Mount Door Stop	534	1520	326F	---	FS40	1261
505-RKW	Door Stop	---	1501	325W	---	61	1235
528	Heavy Duty Hinge Pin Stop	578	1502	BL6212	---	69	---
555	Manual Flush Bolt	590	1555	282D	1520	FB458	3917
557	Wood Door Flush Bolt	591	1557	283D	---	FB358	3913
570	Dust Proof Strike	545	1570	280X	382	DP1	3910
576	Coordinator	7500	2080	298D	---	COR7G	3093
580	Surface Bolt	598	1580	275D	---	SB453-8	3922
590	Roller Latch	500	1700	1442	---	RL30	---
591	Roller Latch	550 X SP2	1702	1443	---	RL30A	1559C
593	Roller Latch	555	---	318S	---	RL1152	1559BL
608-RKW	Door Silencer	500	1608	307D	---	SR64	1229A
622	Door Viewer	852	ULDV-180	1756	---	698	976
640	Residential Flush Bolt	592	1640	1413	---	261	3999SE
802	Coat Hook	600	300	---	---	571	3070-1
890	Pocket Door Pull	---	PDL-100	330D	---	990	1064
891	Privacy Latch	---	PDL-101	330L	---	991	1065
2672	Door Coordinator	7672	2021	297D	---	COR52	3094B2
2842	Auto Flush Bolt	7842	1560	292D	---	FB31P	3810X3810
2942	Auto Flush Bolt	7942	1562	291D	---	FB41P	3815X3815
11147	Push Bar & Straight Pull Set	422 X 26C	20147	153D	---	9103-0	1731
106 X 70B	Pull Plate	5325A	7015	33E	---	8302-6	1017-2
107 X 70C	Pull Plate	5425B	7116	33G	---	8302-8	1017-3B
110 x 70C	Pull Plate	5426B	---	34G	---	8303-8	1018-3
111 X 70C	Pull Plate	5426C	---	34J	---	8303-0	1018-3B
132 X 70B	Pull Plate	5310	7010	36N	---	8311-5	1010-2
441H	High Dome Stop	521	1447	242F	---	FS439	1211
461L	Kick Down Door Stop	585	1487	271D	---	FS452-5	1220-5
630-4	Surface Bolt	---	1630	279D	---	54	3920-4
70B	Push Plate	53	70	30S	200D	8200	1001-2
70E	Push Plate	56	72	30S	200H	8200	1001-9
70F	Push Plate	57	73	30S	200K	8200	1001-11
73C	Push Plate	74	78	80S	300F	---	1809-4
BF150	Offset Door Pull	29B	1150	11G	668	---	1191-1
BF156	Offset Door Pull	---	1156	12G	658	8190-8	---
BF157	Offset Door Pull	---	1157	12J	658A	8190-0	1191-3
BF15747	Push Bar & Offset Pull Set	422 X 39C	1157147	159D	---	9190-0	1737
BF158	Offset Door Pull	39D	1158	12L	658B	8190-2	1191-4
DF86	Door Edge Filler Plate	---	EF-86	336B	---	---	---
DFF4	Frame Hinge Filler Plate	---	HF-45	336L	---	---	---
DHF4B	Beveled Door Hinge Filler Plate	---	SHF-45	336F	---	---	---
K1038	Kick Plate .038	---	---	198S	---	---	KA038
K1050	Kick Plate .050	---	---	190S	---	8400	KS050
RM201	Door Pull	M39D	---	---	HG121	M39D	1191-4J
RM202	Door Pull	---	---	23Q	HG122	---	1191-5J
RM301	Door Pull	M26D	---	10L	HG111	M26D	1195-3J
RM302	Door Pull	---	---	10Q	HG112	---	1195-6J
TYPE 1	Mounting Hardware	1	1	TYPE1	---	TYPE STD	E
TYPE 5	Mounting Hardware	5	3	TYPE3	---	TYPE N	G
TYPE 6	Mounting Hardware	6	6	TYPE5	---	TYPE L	J
VRT24	Vandal Resistant Trim	---	---	---	---	VR900	1096HA
VRT26	Vandal Resistant Trim	---	---	---	---	VR900LLP	1097HA

Available Model Numbers and Combinations

Model/SKU	Attributes
TBF156-10/612	9"
TBF156-32D/630	9"
TBF156-3/605	9"
TBF156-32/629	Polished Stainless Steel, 9"
TBF156-10B/613	9",
TBF156-4/606	9"
TBF156-10BE/BSP	9", Black Suede Powder Coat
TBF156-32DMS	9",
TBF157-10/612	11"
TBF157-32D/630	11"
TBF157-3/605	11"
TBF157-32/629	Polished Stainless Steel, 11"
TBF157-10B/613	11"
TBF157-4/606	11"
TBF157-10BE/BSP	Black Suede Powder Coat, 11"
