  6. Rockwood 2600 Series Door Coordinator w/ Filler
Reduced price! Rockwood 2600 Series Door Coordinator w/ Filler View larger

Rockwood Mfg

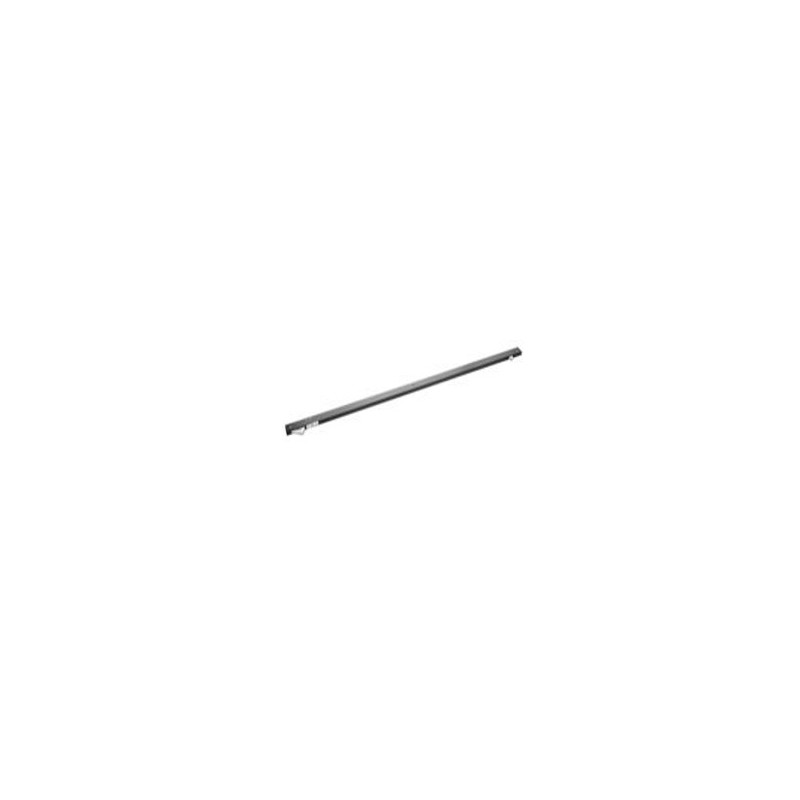

Rockwood 2600 Series Door Coordinator w/ Filler

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$151.42

20% Off

$189.28

?

Details: Rockwood 2600 Series Door Coordinator w/ Filler

Specification:

Material: Steel.

Fastener: 7 ea. #12-24 × 1¼ TH

Type C tapping screws.

Size: Standard device size ⅝" × 1⅝" × 52".

Opening: 60".

Weight: 7.0 lbs.

ANSI A156.3: Type 21.

Options: Specify make and model of exit device for vertical rod preparation.

Feature:

Non-handed.

Override protection to prevent damage in case of abnormal force on door.

Mechanism and filler bar completely fill width of opening and when painted to

match frame it becomes virtually invisible.

Custom Sizes: The 2600 Series coordinators are manufactured in different housing

lengths to coordinate the full range of door sizes including:

NX2600 Series
For jamb opening widths 48" - 54"; coordinator length 42".
2600 Series
For jamb opening widths 54" - 96"; coordinator length 52".

Determining Coordinator Item Number:

  • Active door widths plus Inactive door width equals the last two or three digits
of all 2600 Series coordinator item number (2680 is for 80" door openings).
  • Less than 48" jamb widths - N2600 Series (N2644 = 44" opening).
  • Larger sizes are available (XL, XXL), contact the factory.

Note: Some panic hardware requires the coordinator to be factory prepped. Contact factory.

Note: Contact the factory for other available smaller or larger sizes.

Available Model Numbers and Combinations

Model/SKUAttributes
2672-BLK Prime Coat Black, 72"
2672-28/689 Satin Aluminum, Clear Anodized, 72"
2696-BLK Prime Coat Black, 96"
2696-28/628 96"
2660-BLK Prime Coat Black, 60"
2660-28/689 Satin Aluminum, Clear Anodized, 60"
