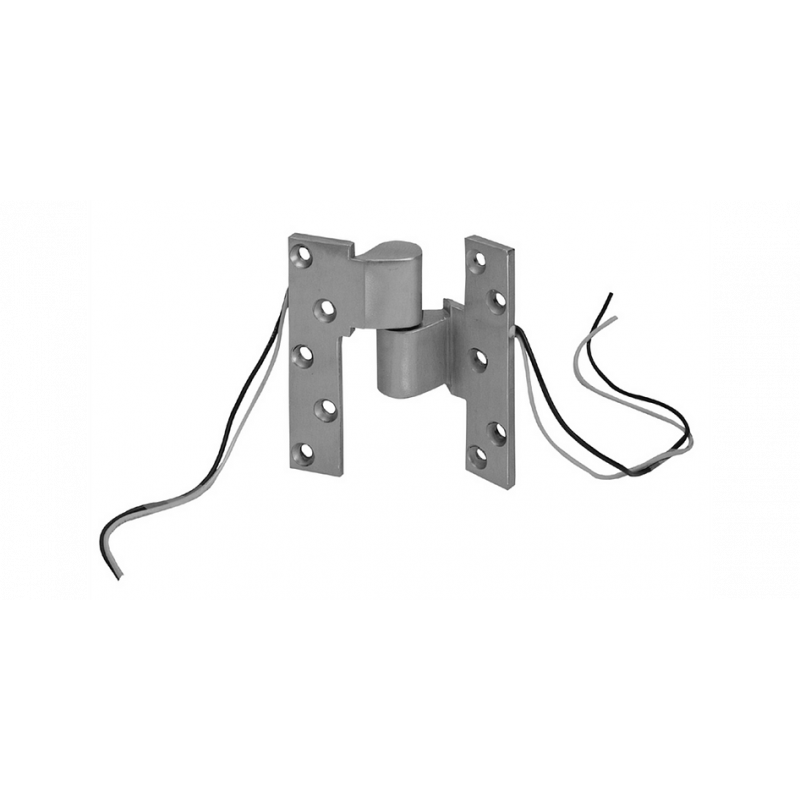

Rixson EM19U 3/4" Offset Power Transfer High Inrush Pivot, 2-Wires Only
EM19U
- Write a review
Item normally ships out within 7-10 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Details: Rixson EM19U 3/4" Offset Power Transfer High Inrush Pivot, 2-Wires Only
The E-M19U is an offset-hung, electrified power transfer pivot designed for panic devices with large inrush currents.
Features
- Offset hung
- Electric pivot for power transfer
- Handed
- For electrified panic devices with large inrush current
- Not load-bearing
- Always use M19 intermediate pivot to install door
- Door and jamb portion are factory assembled and cannot be separated
- Junction boxes are supplied with pivots
- Two each 18 gauge wires (each wire is rated at 2 amps continuously) - UL listed for 24-volt, class I wiring
- ElectroLynx option not available
- Not available in ferrous material
- 3/4" (19mm) offset
- Door edges must be beveled in 1/8" in 2"
- Furnished with wood and machine screws
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| EM19U-690RH | Right Hand |
| EM19U-690LH | Left Hand |
| EM19U-691RH | Right Hand |
| EM19U-691LH | Left Hand |
| EM19U-622/693RH | Right Hand |
| EM19U-622/693LH | Left Hand |
| EM19U-696RH | Right Hand |
| EM19U-696LH | Left Hand |
| EM19U-605RH | Right Hand |
| EM19U-605LH | Left Hand |
| EM19U-606RH | Right Hand |
| EM19U-606LH | Left Hand |
| EM19U-611RH | Right Hand |
| EM19U-611LH | Left Hand |
| EM19U-612RH | Right Hand |
