Richelieu WEBKIT10024 Magic Corner II Set for a Minimum Opening of 494 mm (19-7/16")

Model: WEBKIT10024

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Richelieu WEBKIT10024 Magic Corner II Set for a Minimum Opening of 494 mm (19-7/16")

Features

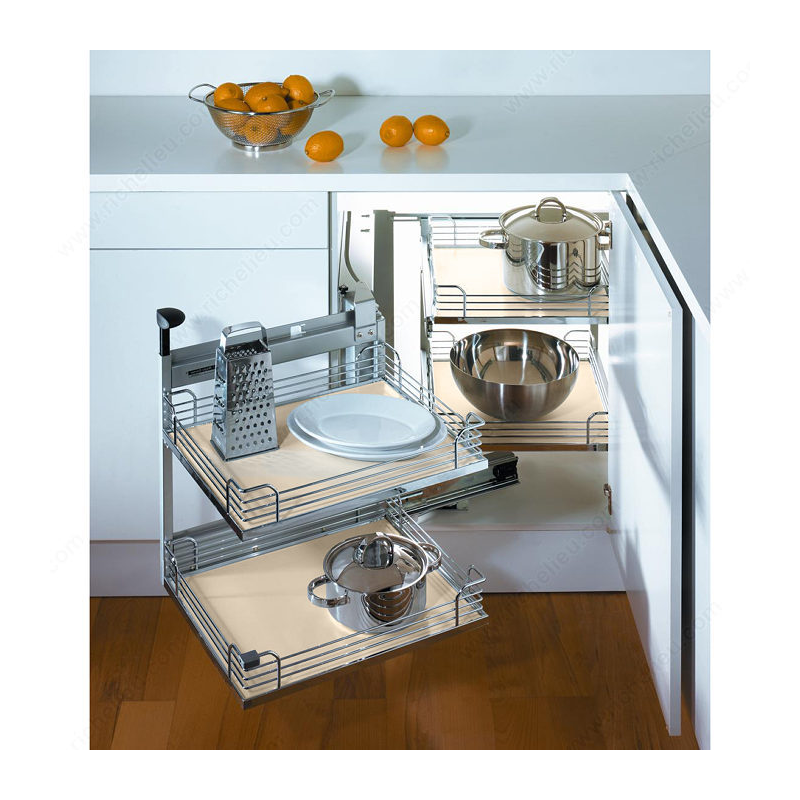

Mechanism designed to maximize available space in corner cabinets with hinged doors.
Brand new sliding technology ensures that all components slide silently and effortlessly even when the baskets are full.
Opens manually.
Front baskets pull out and swivel for easy viewing and access to the entire storage space.
Rear baskets slide out for a easy access to all stored items.
Depending on the configuration you use this system lets you make full use of over 80 Percent of the storage space available.

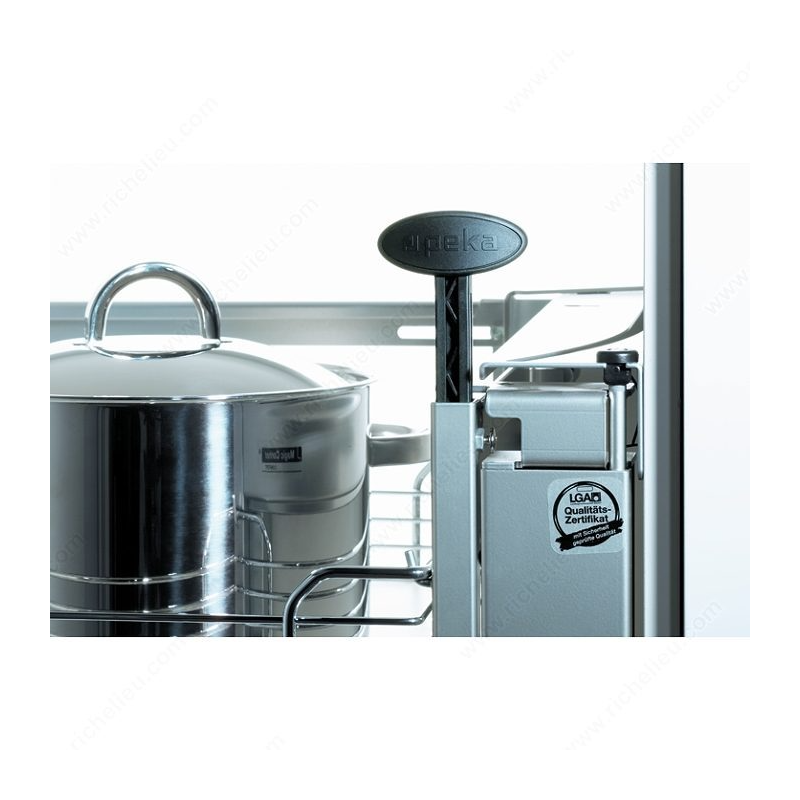

Features an ergonomic handle that can be adjusted in height.
Laterally mounted deflection clips prevent the door from being damaged.
An anti-slip covering on baskets prevents stored items from moving or falling when the system is operated.
Soft-motion slides for the rear baskets provide smooth closing
Rear baskets slide independently for the best access letting you reach right to the back of the unit
Features elegant chrome rails
SoftStopp included in the frame for the front baskets
Baskets sold in sets of 4
Frame can be width-adjusted
Load capacity of front baskets: 10 kg (22 lb.) per basket
Load capacity of rear baskets: 8 kg (17 lb.) per basket
Please note that the first page of the installation instructions shows a drawing representing left opening; the same dimensions apply to right-opening mechanisms.
Cabinet adjacent to opening side must not exceed 100 mm or the mechanism will not work. Please see the technical drawing.

Specifications

Interior Dimensions Required - Width: 862 to 971 mm
Interior Dimensions Required - Depth: Min. 500 mm
Interior Dimensions Required - Height: Min. 535 mm
Finish: Gray/Chrome
