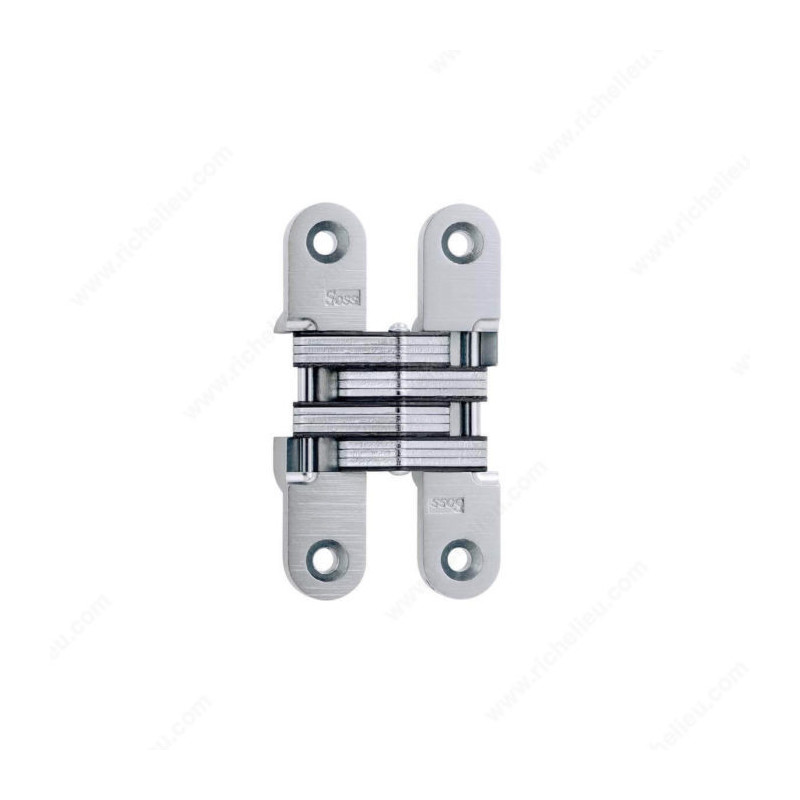

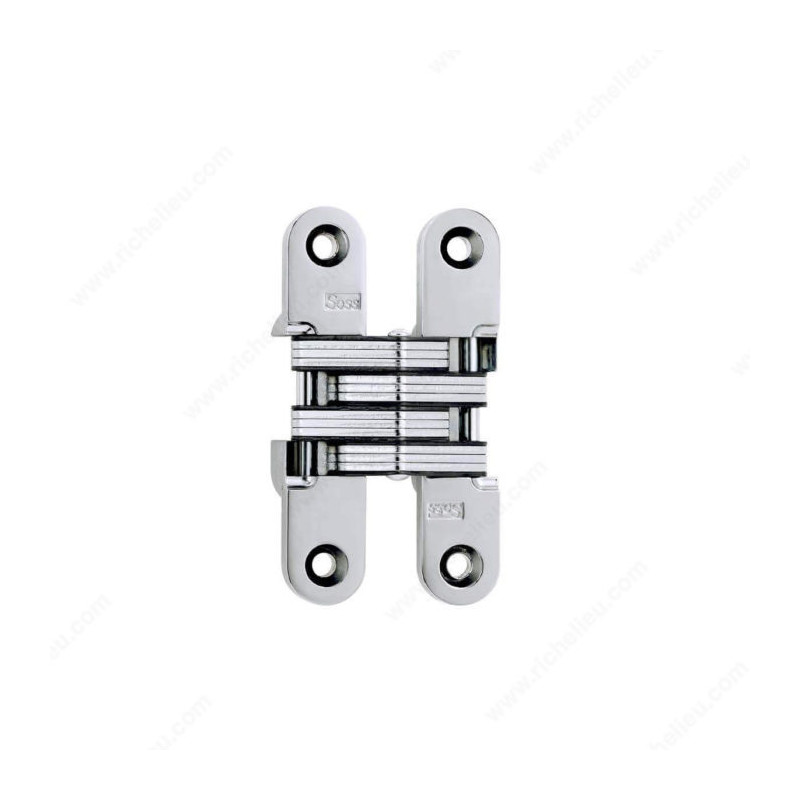

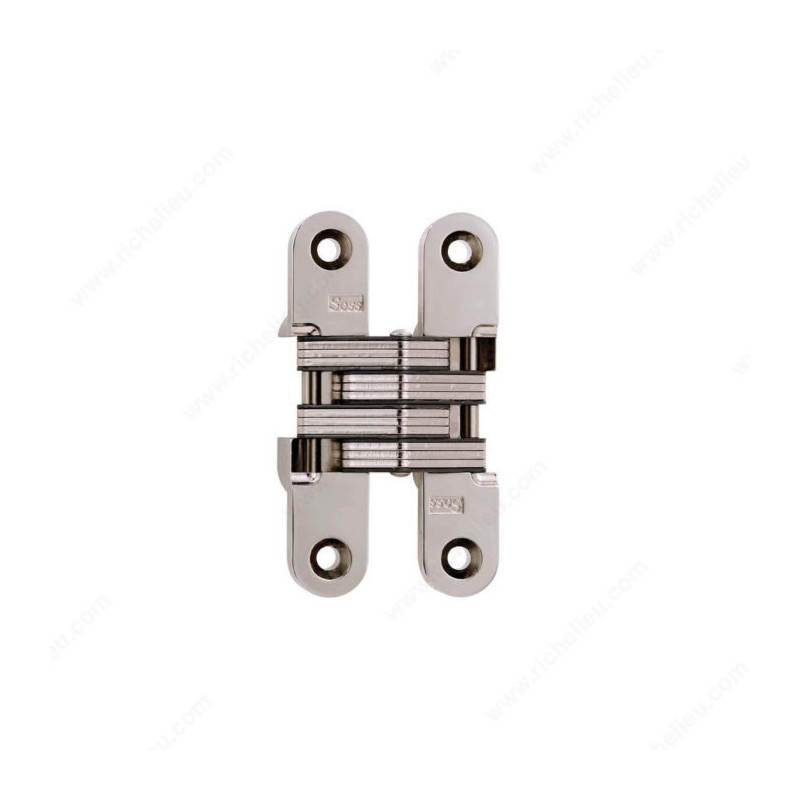

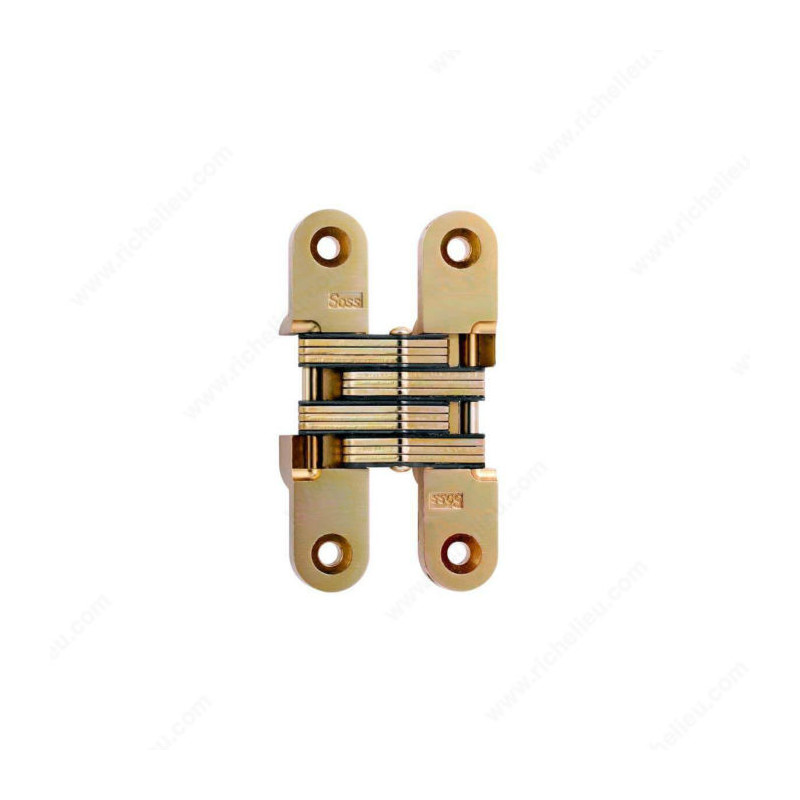

Richelieu 429212 Concealed Steel Hinge View larger

Richelieu

Previous Next

Richelieu 429212 Concealed Steel Hinge

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$245.88

Details: Richelieu 429212 Concealed Steel Hinge

Richelieu's concealed hinges offer superior appearance and durability with contemporary and functional style. They easily install and can be used for many applications on wood or metal doors to meet all your needs.

Features

  • Security: When closed, the SOSS concealed hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
  • Safety: The moving pivot point remains inside the hinge during movement until fully opened, eliminating an external pinch point on the back side of the door.
  • Strength: The installed hinge is firmly anchored in a deep, full mortise with screws to support the door and provide a rigid and secure installation.
  • Superior Construction: Concealed hinges are designed to ensure reliable operation for years. The standard hinges are made of high-strength steel and zinc alloy.
  • Smooth Operation: All hinges have been designed and developed to give smooth performance and reduce friction.

Specifications

Minimum Door Thickness
1-1/8 in
Material
Steel
Type of Hinge
Wood or Metal
For Hinge Number
212
Wood Screw Sizes
Number 10 x 1-1/4" (4.8 mm x 32 mm)
Center to Center (mm)
3 in
Door/Jamb Gap (mm)
5/32 in
Door/Jamb Inset (mm)
17/32 in
Screw/Nail
Screw/Nail (Included)
Fixing Type
Screw-On
Mounting Type
Mortise
Cabinet Angle
180 Degree
Width
3/4 in
Leaf Gap
35/64 in
Length
3-3/4 in
Door/Jamb Gap
11/64 in
Door/Jamb Inset
3/16 in
Leaf Body Mortise Length
2-1/16 in
Door/Jamb Gap in Closed Position
3/64 in
Height
1-5/64 in
Leaf Mortise Depth
3/8 in
Handedness
Reversible
Hinge Opening Angle
+180 Degree

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
