  4. Prime Line D 1541 Sliding Glass Door Roller Assembly, Steel Ball Bearing, 1-1/4 In.
Prime Line D 1541 Sliding Glass Door Roller Assembly, Steel Ball Bearing, 1-1/4 In. View larger

Prime Line

Prime Line D 1541 Sliding Glass Door Roller Assembly, Steel Ball Bearing, 1-1/4 In.

D 1541

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$6.29

Details: Prime Line D 1541 Sliding Glass Door Roller Assembly, Steel Ball Bearing, 1-1/4 In.

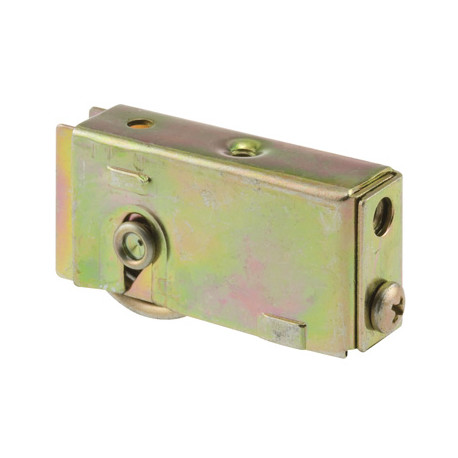

This is a plain back patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. It has a plain back housing that is 11/16 in. wide and 1-1/4 in. tall with a flare width of 13/16 in. with a rear adjusting screw. Features a 1/4-20 machine thread mounting hole on the plain back end and a #10-32 threaded optional use hole on the top. Used by Blomberg and a variety of other manufacturers of vinyl and metal sliding patio doors.

Features

  • Can be found on Blomberg and a variety of other sliding patio door manufacturers
  • 1/4-20 threaded mounting hole on the back end and an optional use 10-32 threaded hole on the top of the housing
  • 1-1/4 in. concave ball bearing steel roller
  • Made of stamped steel
  • Easy to install
  • Two mounting variations
  • A Phillips head screwdriver is required for Installation
  • For further dimensional information, please see the line drawing

Specifications

Roller Material
Steel - Ball Bearing
Housing Width
11/16"
Roller Width
5/16"
Roller Edge Type
Concave
Availability
N/A
Housing Length
2-3/8"
Housing Height
1-1/4"
Overall Housing Width
13/16" at Flare
No of Wheels in Roller Assembly
1 Wheel
Mounting Tab Type
Plain Back

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

D 1541-INS.PDF
