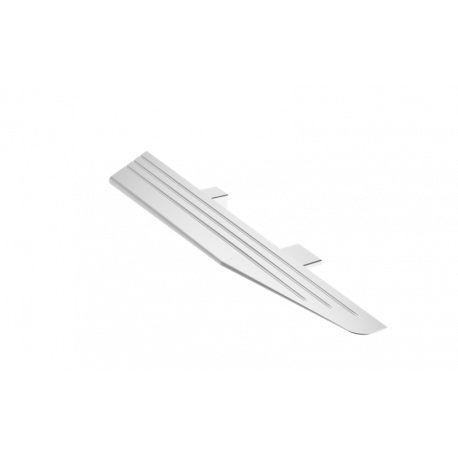

Pemko WING16 Miter Returns, 16" W View larger

Pemko

Pemko WING16 Miter Returns, 16" W

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$214.36

?

Details: Pemko WING16 Miter Returns, 16" W

The WING16 Series Miter Returns are 16" wide cast aluminum "wings" designed to fit into the end of a modular ramp threshold assembly. They provide a neat and tight-fitting solution, replacing traditional mitering methods. Please note that these miter returns are not ADA compliant. They are available in left-hand (WING16LH) and right-hand (WING16RH) options. These miter returns are BHMA certified and fire rated for positive pressure.

Features

  • For modular ramp thresholds
  • Wings fit into each end of modular ramp threshold assembly, and are fastened to ramp mid sections with self-tapping machine screws
  • Optional PemKote available
  • Cast aluminum
  • Match-drilled
  • Not ADA-compliant
  • Handed from the low end and are determined by which side of ramp it fits into
  • Can be trimmed to fit ramp assembly
  • Closes off ends of ramps up to 1-1/4"
  • Neat, tight-fitting, and compact design
  • Replaces traditional mitering methods
  • Certifications:- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies, ANSI/BHMA A117.1

Specifications

Base Material
Aluminum
Maximum Length
16"
Width
2"

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
