Reduced price! Medeco X4 33 SFIC Mortise Assembly View larger

Medeco

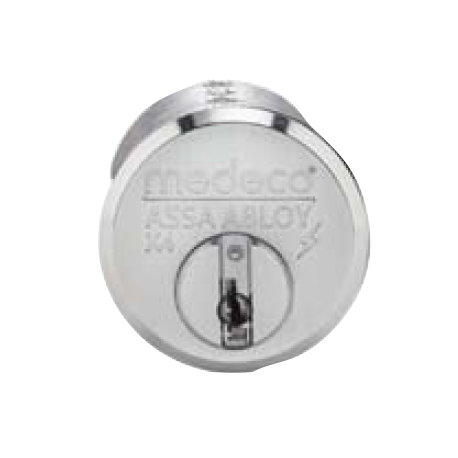

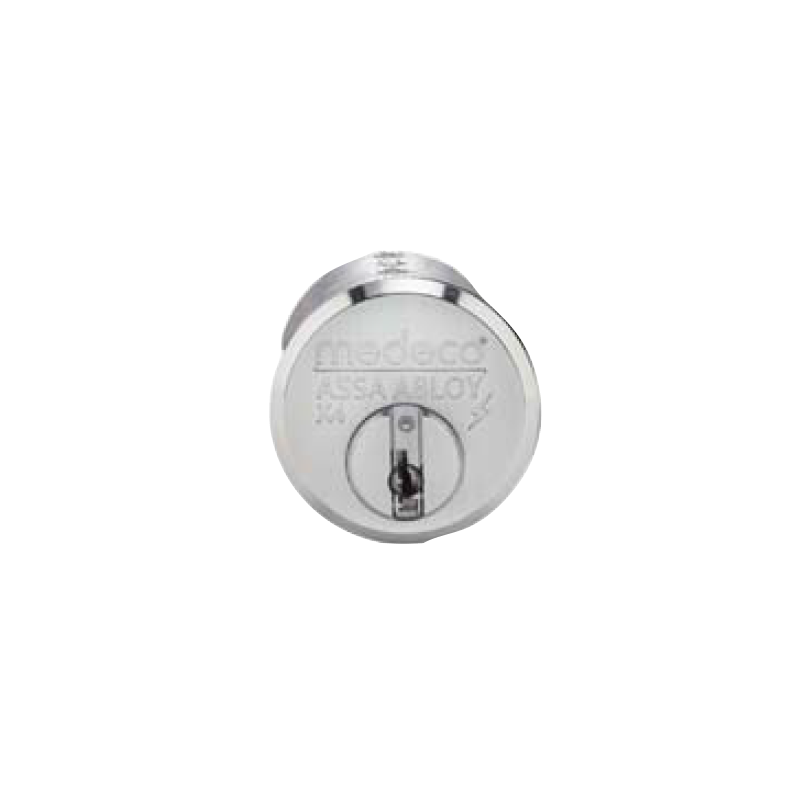

Medeco X4 33 SFIC Mortise Assembly

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Master Key

$99.65

40% Off

$166.09

Details: Medeco X4 33 SFIC Mortise Assembly

Features

  • Utilizes the standard A2 pinning system in conjunction with a bitted slider locking arrangement which allows for more master keying capabilities for large master key systems. Up to 65,536 unique change keys in a 7-pin master key system on a single keyway
  • ANSI A156.5 Grade 1 certification assures consistent quality for heavy use applications
  • Expandable, simple master keying available in SFIC and LFIC, as well as standard key-inknob/lever, mortise, and rim cylinders
  • SFICs are available in six or seven pin cylinders, and can replace Best style cores
  • Standard Medeco cams and tailpieces can be used on Medeco X4 cylinders
  • Keys can be cut using many standard code type key machines such as the Pro-Lok Blue Punch, A1 Green Machine, the ITL 9000/9700, HPC 1200 and HPC Code Max

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
33602012 P-5 1-1/4", 6 Pin, Bright Brass
33602012 P-6 1-1/4", 6 Pin, Satin Brass
33602012 P-9 1-1/4", 6 Pin, Antique Brass
33602012 P-10 1-1/4", 6 Pin, Satin Brass Blackened
33602012 P-11 1-1/4", 6 Pin, Bright Bronze
33602012 P-12 1-1/4", 6 Pin, Satin Bronze
33602012 P-13 1-1/4", 6 Pin, Dark Bronze/Oil Rubbed
33602012 P-18 1-1/4", 6 Pin, Bright Nickel
33602012 P-19 1-1/4", 6 Pin, Satin Nickel
33602012 P-20 1-1/4", 6 Pin, Antique Nickel
33602012 P-22 1-1/4", 6 Pin, Flat Black
33602012 P-24 1-1/4", 6 Pin, Dark Bronze/Clear Coat
33602012 P-25 1-1/4", 6 Pin, Bright Chrome
33602012 P-26 1-1/4", 6 Pin, Satin Chrome
33602012 P-BB 1-1/4", 6 Pin, Matte Black

View All Model Numbers and Options
