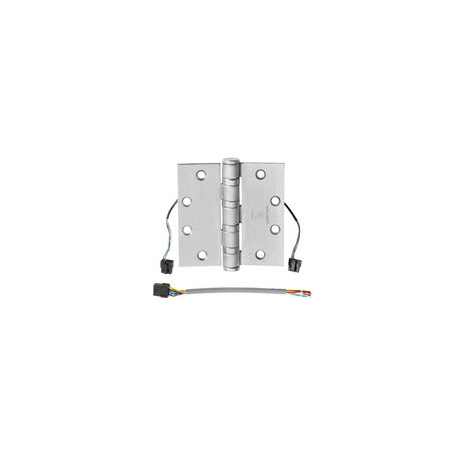

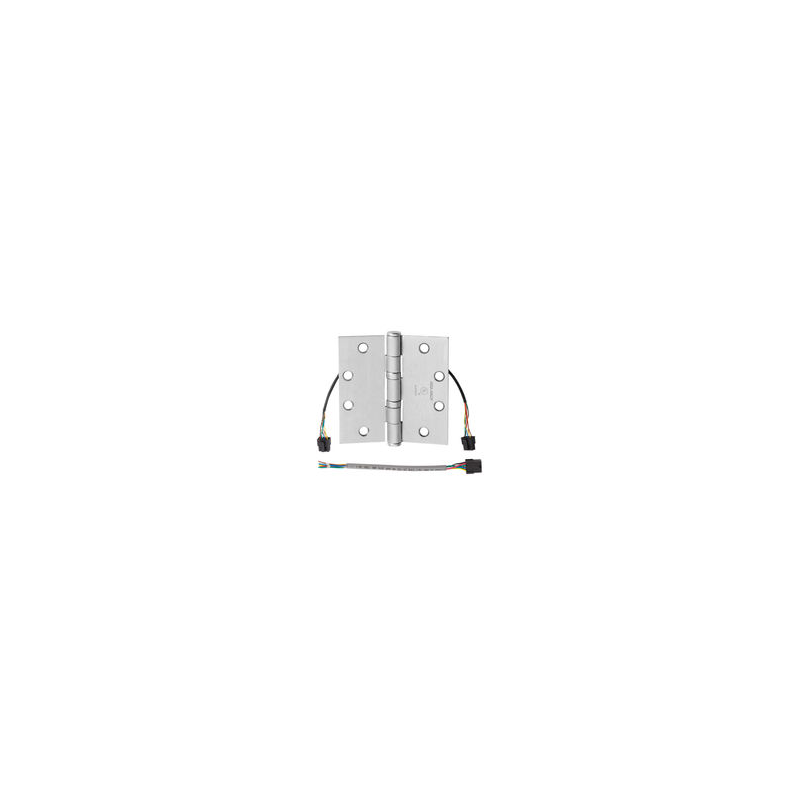

Details: McKinney T ElectroLynx Quick Connect Electric Hinge

Each hinge features concealed plug connectors that eliminate the need for separate or exposed wiring. Standard connectors make installation quick and simple. Brass eyelets add protection and durability.

Features

The QC option is available on standard and heavy weight full mortise bearing hinges as well as swing clear and wide throw hinges
Electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating tampering and improving the aesthetics of the door opening
Materials: brass, stainless steel, and steel
For 4 amp continuous at the rate 24 volts AC or DC per circuit, 28 gauge multi-strand wires are used.
An 8 position connector is used for QC4 and QC8 wire hinges. An 8 position and a 4 position connector is used for QC12 wire hinges.
Hand of hinge must be specified on two knuckle hinges
Can be used in conjunction with MM option on most full mortise hinges. QC12 × MM not recommended for wood or solid core doors
Full Mortise QC hinges are available in most BHMA and McKinney powder coat finishes
Wires are coordinated to work with other ASSA ABLOY Group brands electro-mechanical hardware
Model:-
T4A3386 - Non-Ferrous Heavy Weight 5 Knuckle Bearing Hinge
T4A3786 - Steel Heavy Weight 5 Knuckle Bearing Hinge
T4A4795 - Steel Swing Clear Heavy Weight Beveled Edge Bearing Hinge
T4A3795 - Steel Heavy Weight Swing Clear 5 Knuckle Bearing Hinge
TA2895 - Steel Standard Weight Swing Clear 5 Knuckle Bearing Hinge
TA314 - Standard Weight 3 Knuckle Non-Ferrous Bearings Hinge
TA386 - Heavy Weight 3 Knuckle Hinge
TA714 - Steel Standard Weight 3 Knuckle Bearing Hinge
TA786 - Steel Heavy Weight 3 Knuckle Bearing Hinge

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
