Reduced price! LCN 1261 Cast Iron Surface Mounted Door Closer

View larger

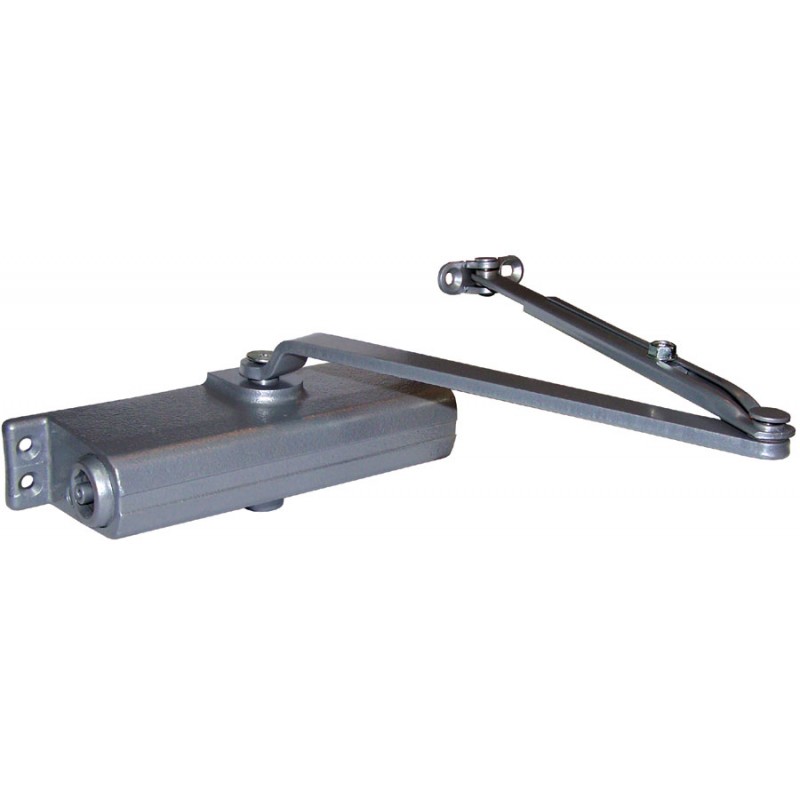

LCN 1261 Cast Iron Surface Mounted Door Closer

Model: 1261-

Write a review

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$325.65

30% Off

$465.21

Quantity

Choose a Finish

Arm Type

Handing

Primer

Cover

Screw Package

Details: LCN 1261 Cast Iron Surface Mounted Door Closer

Description

The LCN 1261 combines the best features from the 1070 and 1370 series into a single versatile, economical, cast iron closer. The dual mounting capability on the 1261 features adjustable spring sizes 1-5, and mounts to the most common commercial footprint. The 1261 also features a complete line of regular and extra duty arms and LCN's patented peel-n-stick installation templates. The cast iron body makes this one of the most durable door closing mechanisms on the market, and the all-weather hydraulic fluid it uses eliminates the need for seasonal adjustments. The LCN 1261 is available in six color finishes.

Applications

For aluminum, hollow metal, or wood swinging doors and frames
Can be used with hinge or pivot mounted door
Mounts on a 1¾" transom without adapter plates

Features

1000 series closers mount three ways. Closers with regular or hold-open arm mount hinge side or top jamb. Parallel mounting requires a PA shoe.
Non-handed for right and left swinging doors
Closers to meet ADA reduced opeing for requirements
Adjustable hydraulic backcheck cushions opening swing prior to 90 degrees
Separate regulation of general closing speed and latching speed
Joints in arm and shoe adapt to uneven trim
Reversible shoe to boost latching power on double lever arms

Specifications

Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
Non-sized (1-5) cylinder is adjustable for interior doors to 4'6" and exterior doors to 3'6"
Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
Mounts to most common commercial footprint (3/4" × 9 1⁄16")
Closer meets ADA requirements. See 1260 Series catalog page 10
Optional Quick Fix™ bracket kit
Standard or optional custom powder coat finish
Optional SRI primer for installations in corrosive conditions
Optional Slim Line cover

ADA: Yes
ANSI Certification: A156.4
Adjustable Spring: Yes
Approved for Commercial Use: Yes
Arm Style: Cush, Extra Duty, Extra Long,Hold Open, Long, Regular, Spring Cush
BHMA Certification: Grade 1
Closer Size: 1, 2, 3, 4, 5, 6
Collection: 1260
Configuration: No
Handing: Left, Right (Non-handed)
Height: 4.625
Material: Iron, Steel
Max Door Width: 42", 54"
Max Door Width (Exterior): 42"
Max Door Width (Interior): 54"
Mount Type: Parallel, Surface, Top Jamb
Product Class: Commercial
Product Weight: 12 lbs
Projection: 12"
Theme: Commercial
UL Listed: Yes
Width: 9.937

LCN has been developing door closer solutions for 88 years and they are trusted to work in even the most chaotic of times. The LCN 1261 Cast Iron Surface Mounted Door Closer high standards of performance give their customers a much needed peace of mind in knowing that their facilities are protected. With 35 different series of closers and door hardware to choose from with the guarantee of up to 15 to 20 years of product life, LCN has unmatched expertise to meet all security and safety challenges.
