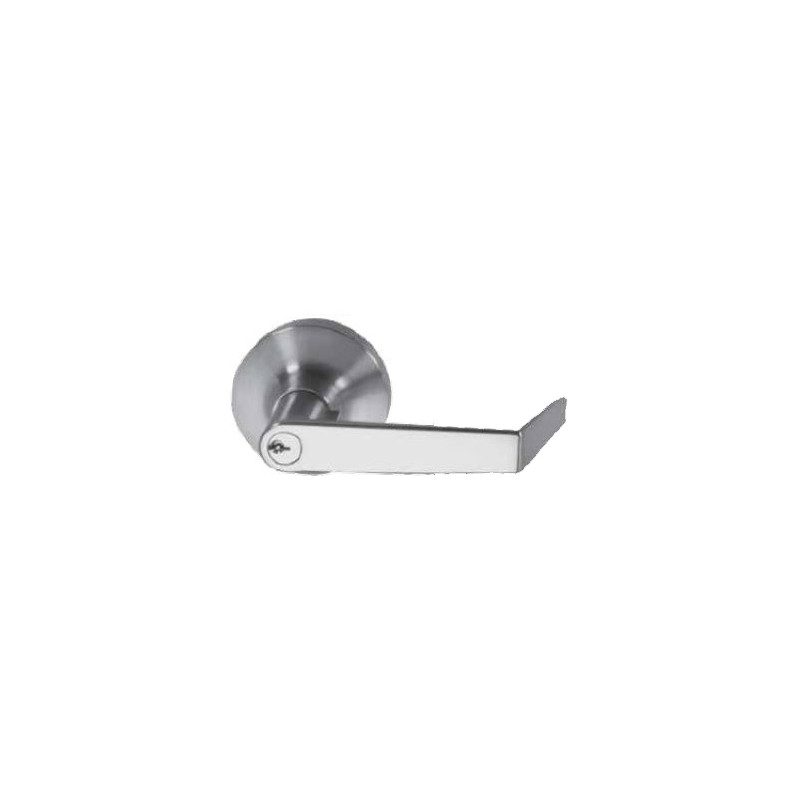

International Door Closers 5000 Series Exit Device Trim, 01 Lever Design

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$134.32

20% Off

$167.90

Details: International Door Closers 5000 Series Exit Device Trim, 01 Lever Design

Features

  • Non handed, easily installed with exit device.
  • Available finishes: US28(689) and US20A(690).
  • The trim has four (4) models to meet different functions use, see the chart below.
  • Easy operating lever handle allows convenient one hand operation.
  • Trim has two through-bolts to the device chassis directly for more security and durability.
  • The actuating shaft of this trim is made of hardened steel bar, it fits 1 3/4" (44mm) doors standard for 2" (51mm), 2 1/4" (57mm) thick door or the shim-mounted exit device, specify the door thickness when ordering.
  • Clutch freewheeling design. The lever rotates when the door is locked preventing excessive force from beingapplied to the horizontal lever.

Specifications

Escutcheon Plate Size
8 1/16" x 2 5/8" x 29/32" (205mm x 67mm x 23mm)
Dimensions 53 Series
Rose diameter 3 1/16" (78mm). Lever length 4 3/4" (121mm), Projection 3"(76mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

5000 Series

Available Model Numbers and Combinations

Model/SKUAttributes
53K01A-208-US20A Classroom/Cylinder, Interchangeable Core, Mortise Cylinder, Painted Dark Bronze
58L01B-NC-US20A Passage/Blank, No Cylinder, Painted Dark Bronze
53K01C-308-US28 Storeroom/Night Latch, Satin Aluminum
53K01A-208-US28 Classroom/Cylinder, Interchangeable Core, Mortise Cylinder, Satin Aluminum
58L01B-NC-US28 Passage/Blank, No Cylinder, Satin Aluminum
53K01A-308-US20A Classroom/Cylinder, Painted Dark Bronze
53K01D-NC-US20A Dummy, No Cylinder, Painted Dark Bronze
58L01B-426-US20A Passage/Blank, Painted Dark Bronze
53K01A-308-US28 Classroom/Cylinder, Satin Aluminum
53K01D-NC-US28 Dummy, No Cylinder, Satin Aluminum
58L01B-426-US28 Passage/Blank, Satin Aluminum
53K01D-426-US20A Dummy, Painted Dark Bronze
53K01B-NC-US20A Passage/Blank, No Cylinder, Painted Dark Bronze
58L01B-526-US20A Passage/Blank, Mortise Cylinder, Painted Dark Bronze
53K01B-NC-US28 Passage/Blank, No Cylinder, Satin Aluminum

View All Model Numbers and Options
