  6. INOX GT 311 Crest Interior Lockset With 2-1/16" (53mm) Dia. Rose
Reduced price! INOX GT 311 Crest Rose 2-1/16" (53mm) Dia. Interior Tubular Locksets View larger

Inox Unison

Previous Next

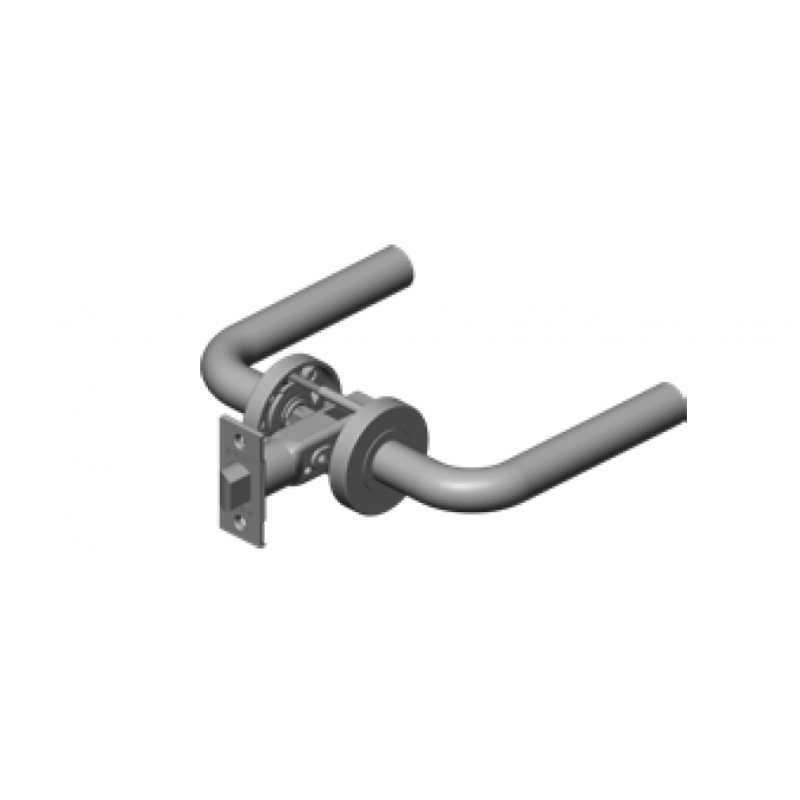

INOX GT 311 Crest Interior Lockset With 2-1/16" (53mm) Dia. Rose

GT 311

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

This product is currently not available for sale, please contact us for more information.

$166.40

20% Off

$208.00

Details: INOX GT 311 Crest Interior Lockset With 2-1/16" (53mm) Dia. Rose

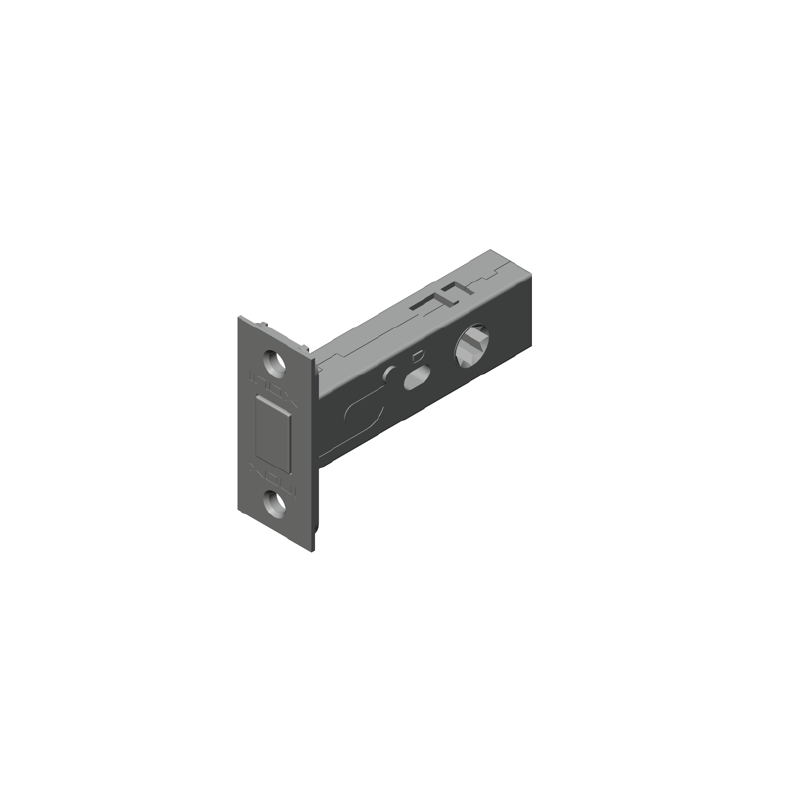

TL4:Our TL4 Latch is commercial grade with a 28 degree latch retraction to meet ADA requirements; pair with designer INOX trim for your most beautiful options. Also available with a 3-hour fire-rated latch.

TL7:A powerful magnetic latch that eliminates the need for lip strikes and door frame lip cut-outs. TL7 is applicable with all INOX decorative lever, knob, and escutcheon designs

Features

  • TL4:INOX TL4 series interior latch sets consist of beautifully designed trim made of stainless steel or forged brass, a spring-assisted interlocking chassis, and a commercial grade tubular latch, making it the perfect choice for high-end residential, mixed use, and hotel or other hospitality openings.
  • A 28 degree short retraction latch design makes for easier operation, and hardened steel hubs inside the latch prevent lever sag for extended life of the set
  • Meets ANSI/BHMA Grade 2 Standards. All lever sets meet ANSI A117.1 Accessibility (ADA Compliant). UL10B/UL10C fire rated TL4 latch available.
  • TL7:A new aesthetic option for homeowners or designers who want to eliminate unsightly or scratched, marred lip strikes, the TL7 is a perfect choice for frameless and flush-to-wall doors.
  • The TL7 magnetic latch is part of the interior leverset and available in both 2-3/8" (60mm) and 2-3/4" (70mm) backset.
  • For passage, privacy, or half passage functions, TL7 latch, bolt, and strike incorporate neodymium rare earth magnets, the most powerful magnet available for commercial use .
  • No special modifications required to use TL7 tubular magnetic latch with any INOX lever, knob, or escutcheon design.
  • Meets ANSI A117.1 Accessibility (ADA Compliant).

Specifications

Door Thickness
1-3/8" (35mm) to 1-3/4" (44mm)
Latch Backset
2-3/8" (60mm) or 2-3/4" (70mm)
Handing
Field reversible for Passage or Privacy functions; specify for Half Passage or Passage with Privacy Bolt
Latch Faceplate
1" x 2-1/4" standard square corner
Lever Spindle
8 x 8mm square
Lever Retraction
28 degree
Standard Latch
TL4 Tubular Latch
Standard Strike
Ships with both full-lip strike and T-strike with square corners.
Edge Bore(TL7 Magnetic)
1" Edge Bore, Latch face 2-1/4" x 1" square

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Data Sheet TL4
