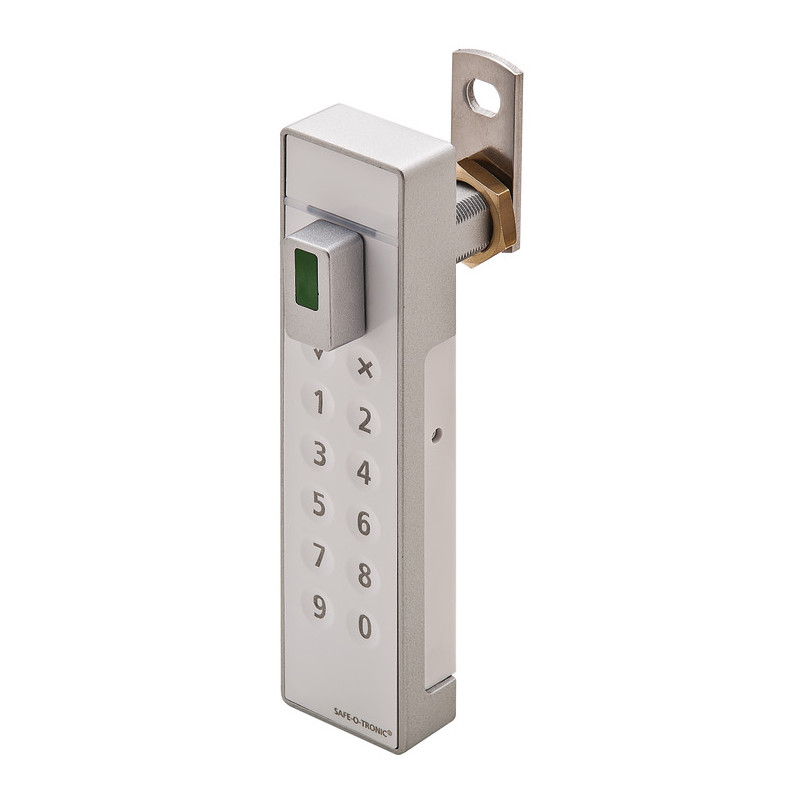

Hafele 231.98. Safe-O-Tronic, LS200 Keypad Lock, 151 x 38 x 33 mm

Model:

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hafele 231.98. Safe-O-Tronic, LS200 Keypad Lock, 151 x 38 x 33 mm

SAFE-O-TRONIC access LS 200 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use mode. Lock is electrically eleased with a correct PIN code entered on the keypad.

Features

Lock complies with ADA standards for door locks
Lock is easily programmed by user with easy to use keypad

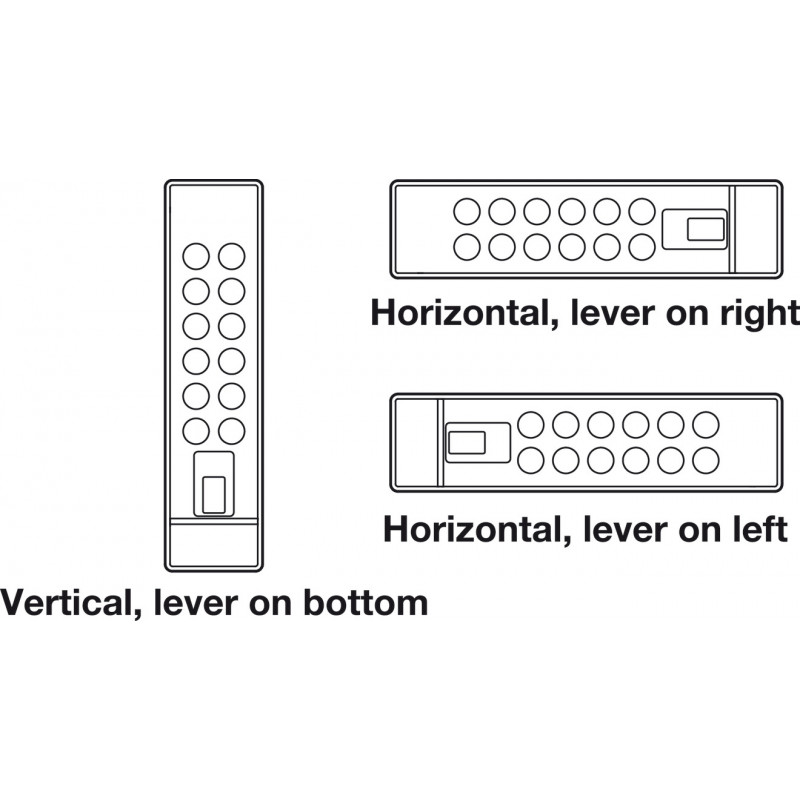

Lock mounts vertically for raised panel doors
Lock powered by a 3-AAA battery pack (included)(item 231.98.210)
Low battery indicator via external LEDs
Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification
Long battery life (10 lock cycles per day for four years)
Easy installation with only two drill points
One programming key set required for project

Specifications

Operation modes: Day Use Mode, Fixed Use Mode
Dim. (L x W x H): 151 x 38 x 33 mm
Model series: LS200
Material: Lock body - Aluminum, Face plate - Plastic, Cam - Steel
Supplied with: Nut, Straight cam, Mounting screw, Spacers, Instructions, 3-AAA battery pack

Applications

For installation in wood, laminate, plastic and metal doors and drawers
