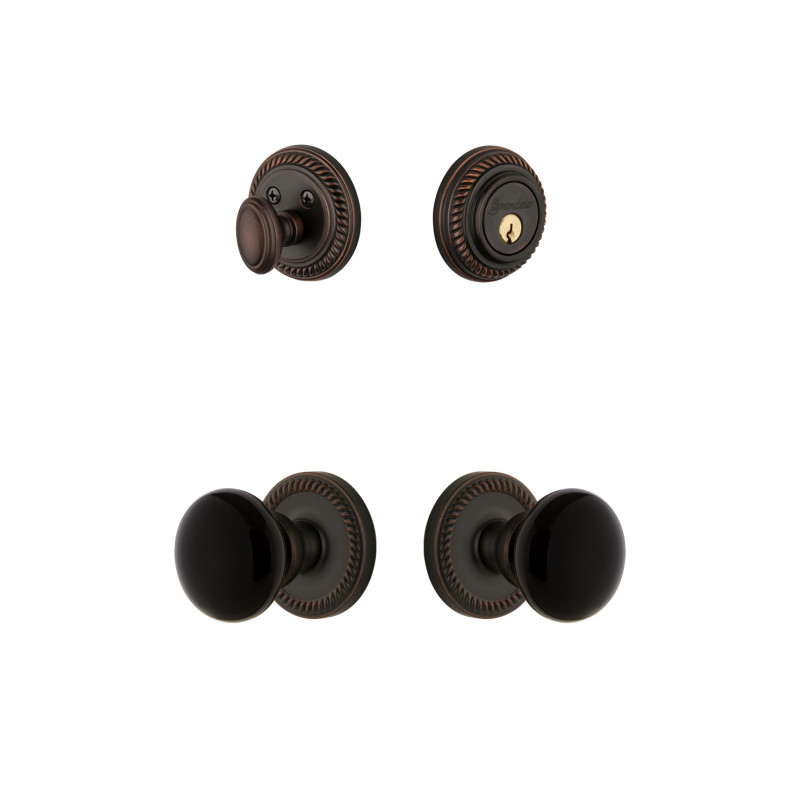

Grandeur Newport Rosette w/ Coventry Knob & Matching Deadbolt


853440

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$525.00

Details: Grandeur Newport Rosette w/ Coventry Knob & Matching Deadbolt

A consummate favorite for centuries, the Newport rosette and deadbolt set the standard in master craftsmanship with their rich, sculpted rope detail. Adding to our collection of porcelain knobs, the Coventry black porcelain knob holds an ageless design that radiates pure charm and style. All Grandeur products are created from solid (not plated) forged brass.

Exterior and interior trim deadbolt, deadbolt latch and kit, exterior and interior trim handleset, handleset latch and kit, screws to install and two keys.

  • Solid forged brass for fine detail
  • Complete set for one door (both sides)
  • Perfect for restoration and easy to install on modern pre-drilled doors
  • Hand assembled in the USA
  • Lifetime Mechanical Warranty
Design Code
NEWCOV
Collection
Newport
Category
Entry Set
ADA Rated
No
Finishes Available
Antique Pewter, Lifetime Brass, Polished Nickel, Satin Nickel, Timeless Bronze, Vintage Brass
Material
Brass/Porcelain
Door Handing
Non-Handed
Backset Options
2-3/8", 2-3/4"
Assembled In
YES

Dimensions

Rose Diameter Inches
2.7"
Knob Diameter
2.25"
Projection
2.9"
Cross Bore
2.125"
Door Thickness
1 3/8" - 1 3/4"
Max Height
8"
Max Width
2.62"
Thumb Turn Diameter
1.42"
Thumb Turn Projection
1.69"
Edge Bore Hole Diameter
1"
Door Bore Hole Diameter
2.125"
Strike Height
2.25"
Strike Width
1"
Deadbolt Throw Length
1"

Shipping

Box Size
7" × 5-1/8" × 8-1/4"
Shipping Weight
7.5 lbs

Grandeur Newport Collection

Available Model Numbers and Combinations

Model/SKUAttributes
NEWCOV 68 KA AP 238 Antique Pewter,
NEWCOV 68 KA AP 234 Antique Pewter,
NEWCOV 68 KA LB 234 Lifetime Brass,
NEWCOV 68 KA PN 234 Polished Nickel,
NEWCOV 68 KA SN 234 Satin Nickel,
NEWCOV 68 KA TB 234 Timeless Bronze,
NEWCOV 68 KA VB 234 Vintage Brass,
NEWCOV 68 KA LB 238 Lifetime Brass,
NEWCOV 68 KA PN 238 Polished Nickel,
NEWCOV 68 KA SN 238 Satin Nickel,
NEWCOV 68 KA TB 238 Timeless Bronze,
NEWCOV 68 KA VB 238 Vintage Brass,
