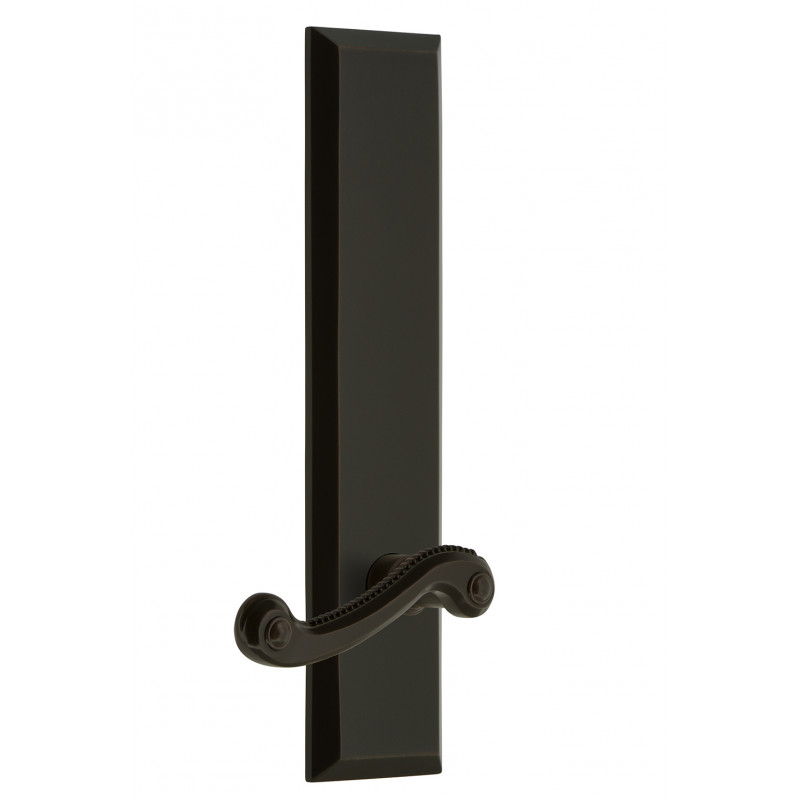

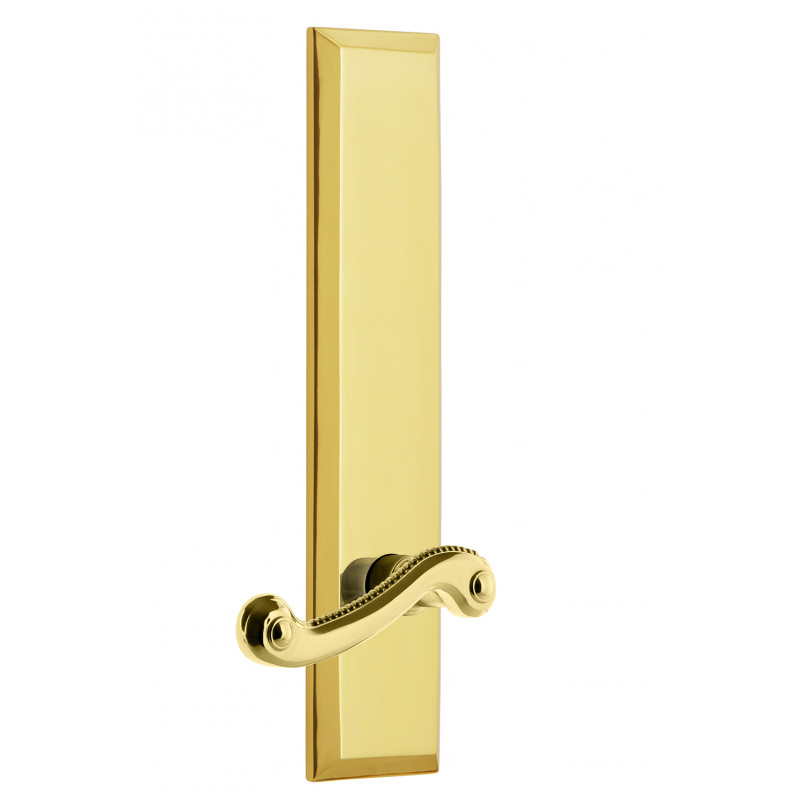

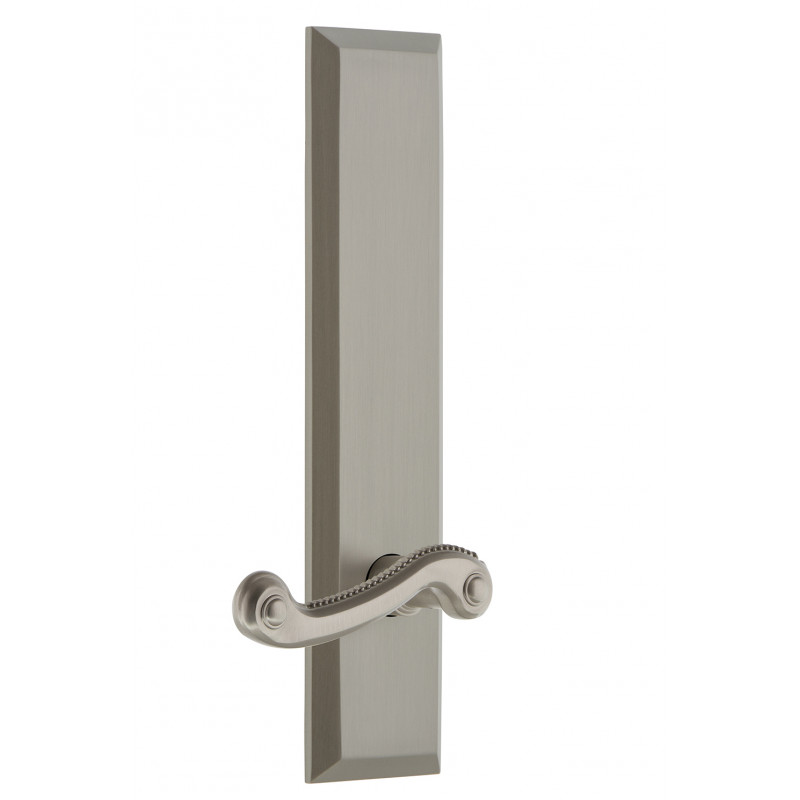

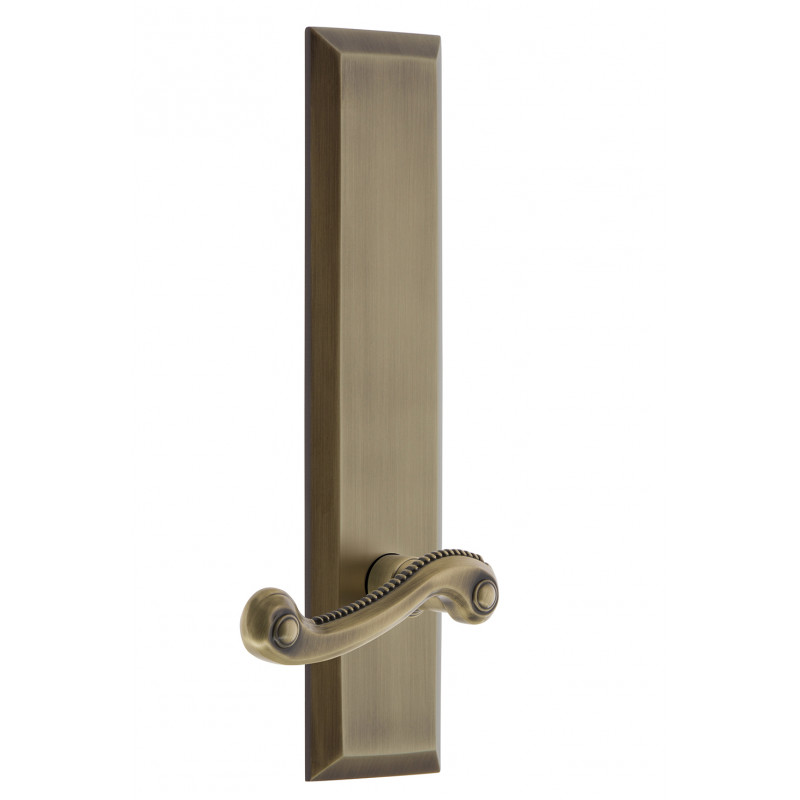

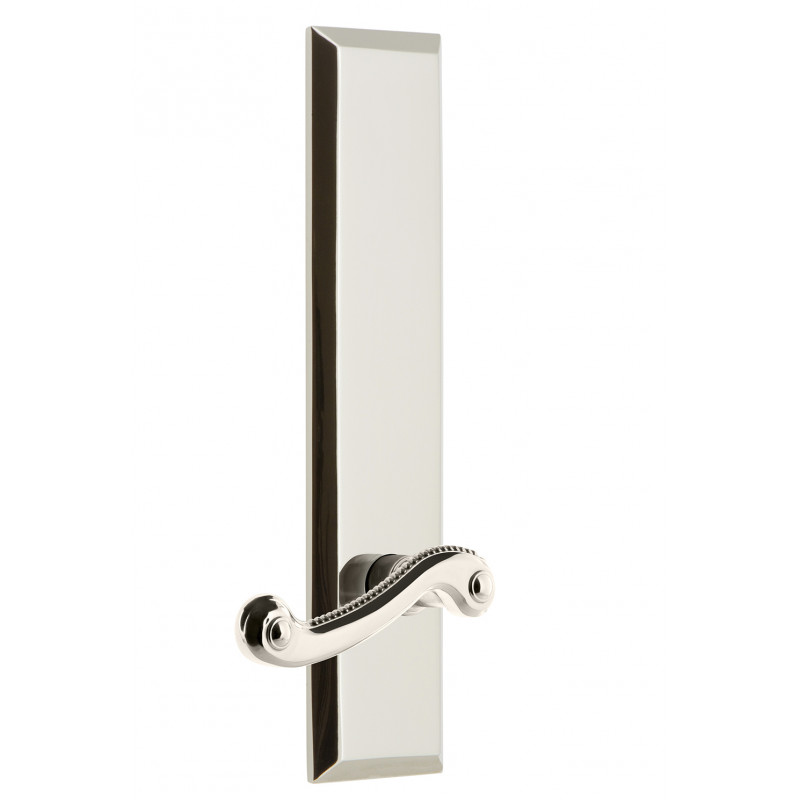

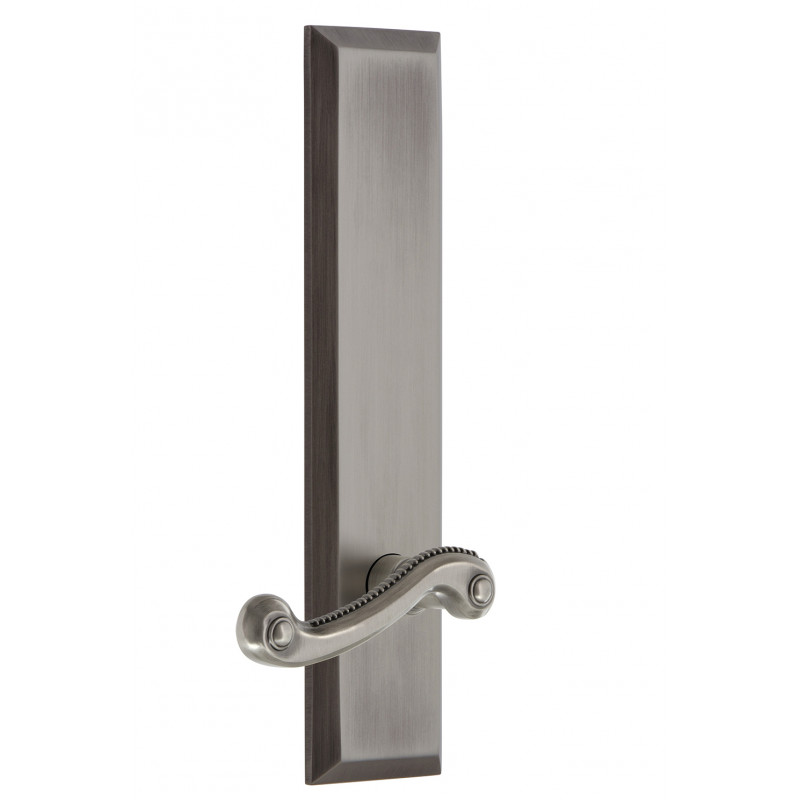

Grandeur Fifth Avenue Tall Plate w/ Newport Lever

Model:
Part #: 836206

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Grandeur Fifth Avenue Tall Plate w/ Newport Lever

The clean, crisp lines of the Fifth Avenue Tall Plate enhance the look of your door with a timeless design that will suit any home decor. These tall plates are ideal for doors that are taller in height providing an aesthetically pleasing plate-to-door ratio. This tall plate is available with any Grandeur Hardware knob, lever and finish to help you mix and match your door hardware.

Door lever and chosen tall plate for both sides of door, latch mechanism, standard spindle, strike plate and mounting screws.

Made of solid, forged brass for long lasting durability
Ideal for doors that are 84 inches or higher, where a standard height plate would not look to scale
Drilling template and mounting hardware included for easy installation
Available in 6 designer finishes from Grandeur Hardware
If the hinges are located on the left side of the door, then you will need a left-hand door knob. This means the privacy pin will be located on the right side of the knob.

Design Code: FAVNEW
Collection: Fifth Avenue
Category: Door Knobs
ADA Rated: YES
Finishes Available: Antique Pewter, Lifetime Brass, Polished Brass, Polished Nickel, Satin Nickel, Timeless Bronze, Vintage Brass
Material: Brass
Door Handing: LH
Backset Options: 2-3/8", 2-3/4"
Assembled In: YES

Dimensions

Tall Plate Height: 11"
Tall Plate Width: 2.625"
Plate Thickness: 0.39"
Lever Width: 4.75"
Projection: 2.625"
Cross Bore: 2.125"
Door Thickness: 1 3/8" - 2"

Shipping

Box Size: 7" × 5-1/8" × 19-1/4"
Shipping Weight: 6.75 lbs

Videos

Grandeur Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
FAVNEW 12 LH AP 238	Passage, Antique Pewter,
FAVNEW 12 LH AP 234	Passage, Antique Pewter,
FAVNEW 12 RH AP 238	Passage, Antique Pewter,
FAVNEW 12 RH AP 234	Passage, Antique Pewter,
FAVNEW 12 LH LB 238	Passage, Lifetime Brass,
FAVNEW 12 LH LB 234	Passage, Lifetime Brass,
FAVNEW 12 RH LB 238	Passage, Lifetime Brass,
FAVNEW 12 RH LB 234	Passage, Lifetime Brass,
FAVNEW 12 LH PB 234	Passage, Polished Brass,
FAVNEW 12 LH PB 238	Passage, Polished Brass,
FAVNEW 12 RH PB 234	Passage, Polished Brass,
FAVNEW 12 RH PB 238	Passage, Polished Brass,
FAVNEW 12 LH PN 234	Passage, Polished Nickel,
FAVNEW 12 LH PN 238	Passage, Polished Nickel,
FAVNEW 12 RH PN 234	Passage, Polished Nickel,
