  6. Grandeur Fifth Avenue One-Piece Handleset w/ Eden Prairie Knob
FAVCGREDN 83 KA AP 238-1.jpg View larger

Grandeur

Previous Next

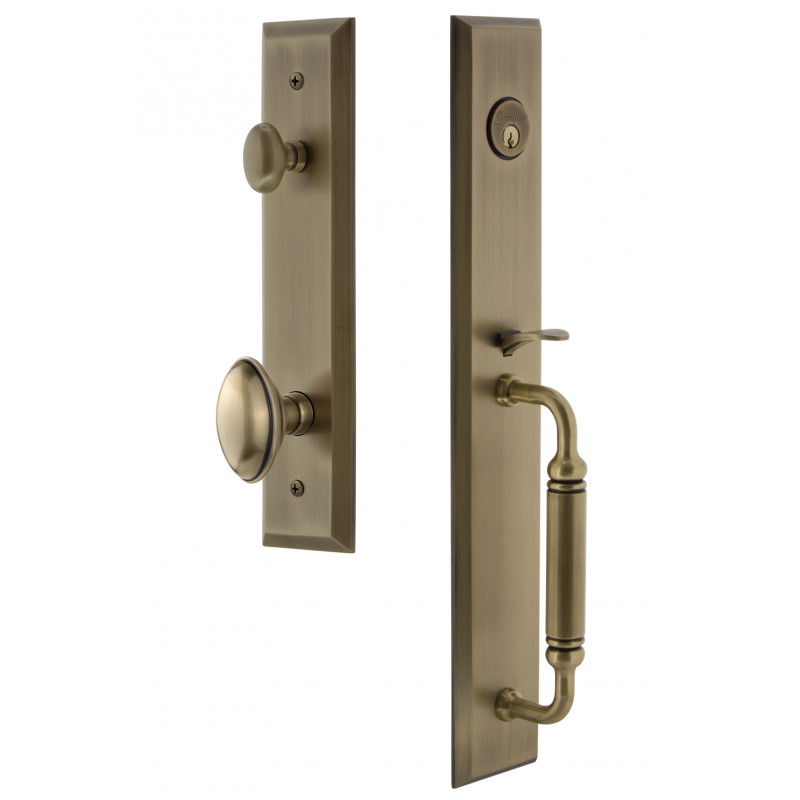

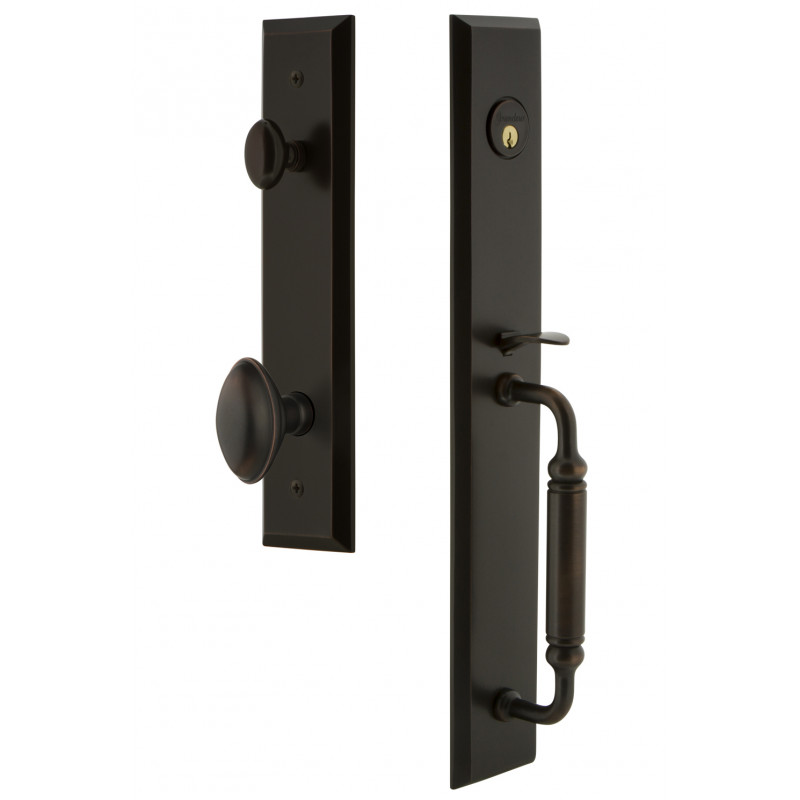

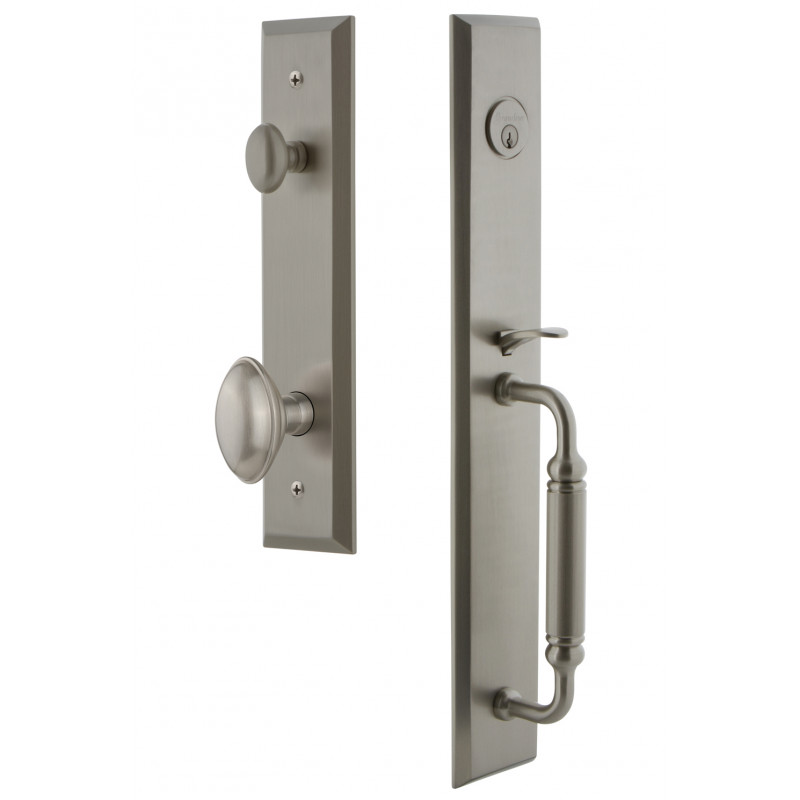

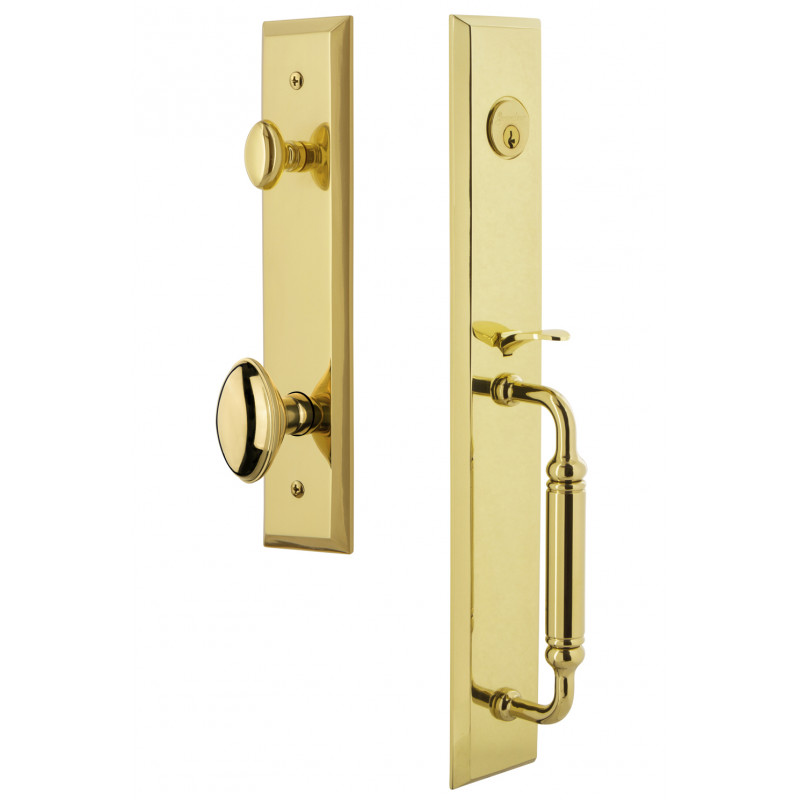

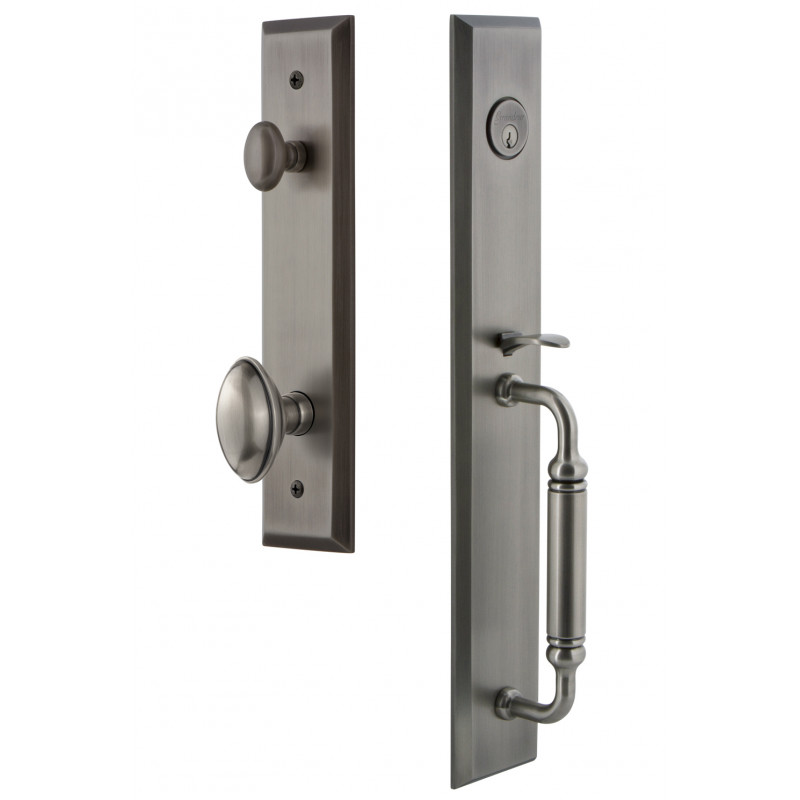

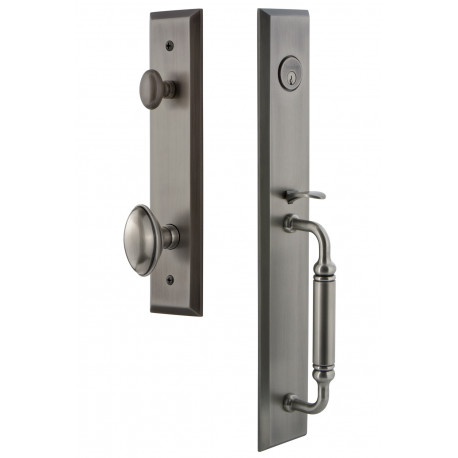

Grandeur Fifth Avenue One-Piece Handleset w/ Eden Prairie Knob


842658

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$875.00

Details: Grandeur Fifth Avenue One-Piece Handleset w/ Eden Prairie Knob

The simple, straight lines and tailored outer edges provide a custom look to your door giving it a broad appeal for almost any home. The Fifth Avenue One-Piece Handleset is available with any Grandeur Hardware knob and lever. Offered in the following Grandeur designer finishes to help you mix and match your door hardware: Vintage Brass, Antique Pewter, Satin Nickel, Timeless Bronze and Lifetime Brass.

Deadbolt latch and kit with cylinder, exterior one piece handleset trim with grip, interior tall plate trim with turn, passage latch and kit, screws to install and two keys.

  • Made of solid, forged brass for long lasting durability
  • Ideal for doors that are 84 inches or higher, where a standard height plate would not look to scale
  • Drilling template and mounting hardware included for easy installation
  • Available in 5 designer finishes
  • Available with all Grandeur Hardware door knobs and levers
Design Code
FAVCGREDN
Collection
Fifth Avenue
Category
Entry Set
ADA Rated
NO
Finishes Available
Antique Pewter, Lifetime Brass, Satin Nickel, Timeless Bronze, Vintage Brass
Material
Brass
Door Handing
Non-handed
Backset Options
2-3/8", 2-3/4"
Assembled In
YES

Dimensions

Grip Center to Center
8.46"
Exterior One Piece Handleset Height
19"
Exterior One Piece Handleset Width
3"
Exterior One Piece Handleset Plate Thickness
0.5"
Interior Tall Plate Height
11"
Interior Tall Plate Width
2.625"
Interior Tall Plate Thickness
0.39"
Knob Height
2.75"
Knob Width
2.75"
Projection
3"
Cross Bore Distance Center to Center
5.5"
Cross Bore
2.125"
Thumb Turn Diameter
1.375"
Thumb Turn Projection
1.55"
Edge Bore Hole Diameter
1"
Door Bore Hole Diameter
2.125"
Strike Height
2.25"
Strike Width
1"
Deadbolt Throw Length
1"

Shipping

Box Size
7" × 5-1/8" × 19 1/4"
Shipping Weight
8 lbs

Available Model Numbers and Combinations

Model/SKUAttributes
FAVCGREDN 83 KA AP 238 Keyed Alike, C Grip, Entry, Antique Pewter,
FAVCGREDN 83 KA AP 234 Keyed Alike, C Grip, Entry, Antique Pewter,
FAVCGREDN 83 KA LB 234 Lifetime Brass, Keyed Alike, C Grip, Entry,
FAVCGREDN 83 KA SN 234 Satin Nickel, Keyed Alike, C Grip, Entry,
FAVCGREDN 83 KA TB 234 Keyed Alike, Timeless Bronze, C Grip, Entry,
FAVCGREDN 83 KA VB 234 Vintage Brass, Keyed Alike, C Grip, Entry,
FAVCGREDN 83 KA LB 238 Lifetime Brass, Keyed Alike, C Grip, Entry,
FAVCGREDN 83 KA SN 238 Satin Nickel, Keyed Alike, C Grip, Entry,
FAVCGREDN 83 KA TB 238 Keyed Alike, Timeless Bronze, C Grip, Entry,
FAVCGREDN 83 KA VB 238 Vintage Brass, Keyed Alike, C Grip, Entry,
FAVCGREDN 83 KD AP 238 Keyed Different, C Grip, Entry, Antique Pewter,
FAVCGREDN 83 KD AP 234 Keyed Different, C Grip, Entry, Antique Pewter,
FAVCGREDN 83 KD LB 234 Lifetime Brass, Keyed Different, C Grip, Entry,
FAVCGREDN 83 KD SN 234 Satin Nickel, Keyed Different, C Grip, Entry,
FAVCGREDN 83 KD TB 234 Keyed Different, Timeless Bronze, C Grip, Entry,
