View larger

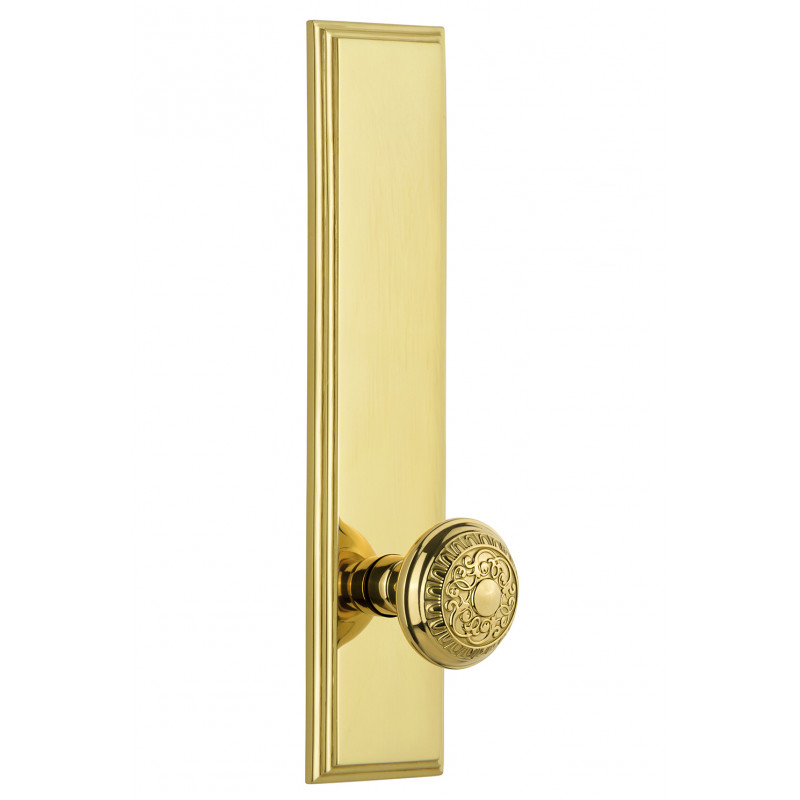

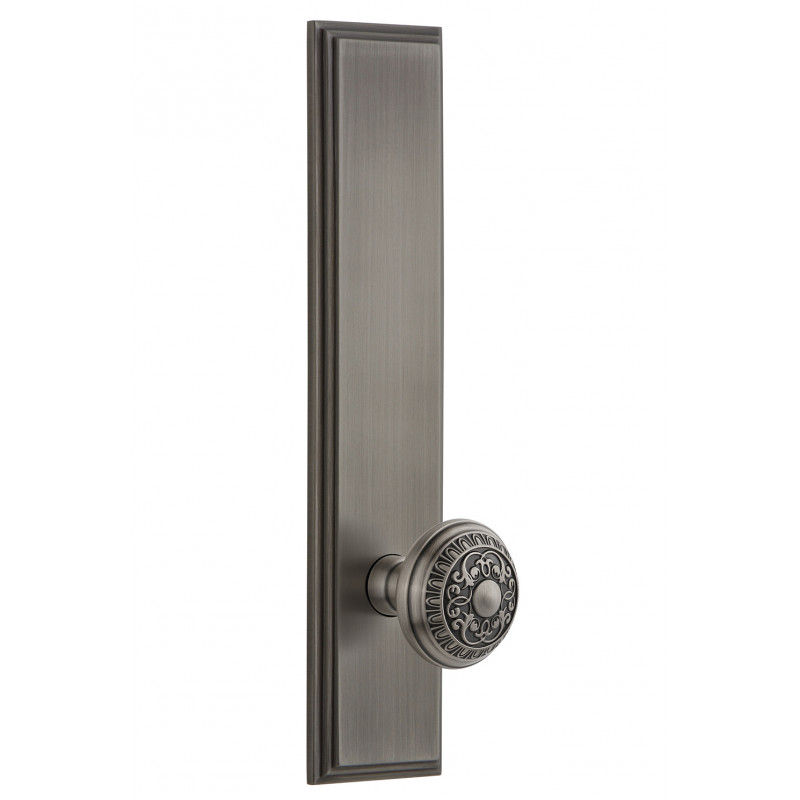

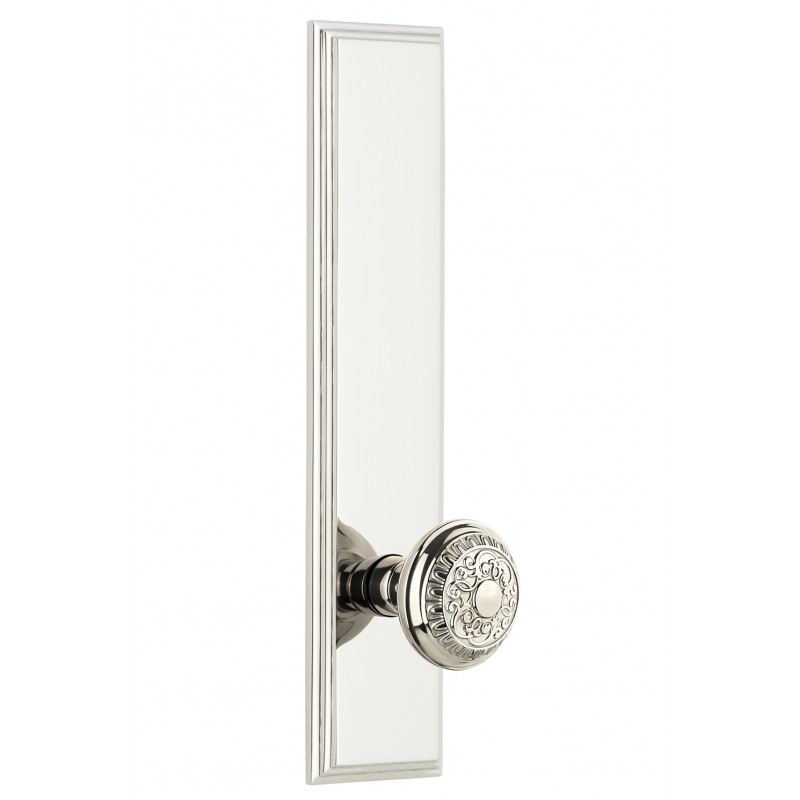

Grandeur Carre' Tall Plate w/ Windsor Knob

Model:
Part #: 803354

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Grandeur Carre' Tall Plate w/ Windsor Knob

The Carre Tall Plate offers an effortless design that brings a touch of glamor without compromising versatility. These tall plates are ideal for doors that are taller in height providing an aesthetically pleasing plate-to-door ratio. This tall plate is available with any Grandeur Hardware knob, lever and finish to help you mix and match your door hardware.

Door knob and chosen tall plate for both sides of door, latch mechanism, standard spindle, strike plate and mounting screws.

Made of solid, forged brass for long lasting durability
Ideal for doors that are 84 inches or higher, where a standard height plate would not look to scale
Drilling template and mounting hardware included for easy installation
Available in 6 designer finishes from Grandeur Hardware

Design Code: CARWIN
Collection: Carre
Category: Door Knobs
ADA Rated: NO
Finishes Available: Antique Pewter, Lifetime Brass, Polished Brass, Polished Nickel, Satin Nickel, Timeless Bronze, Vintage Brass
Material: Brass
Door Handing: Non-handed
Backset Options: 2-3/8", 2-3/4"
Assembled In: YES

Dimensions

Tall Plate Height: 11"
Tall Plate Width: 2.5"
Plate Thickness: 0.39"
Knob Diameter: 2.25"
Projection: 2.75"
Cross Bore: 2.125"
Door Thickness: 1 3/8" - 2"

Shipping

Box Size: 7" × 5-1/8" × 19-1/4"
Shipping Weight: 6.75 lbs

Videos

Grandeur Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
CARWIN 12 AP 238	Passage, Antique Pewter,
CARWIN 12 AP 234	Passage, Antique Pewter,
CARWIN 12 LB 238	Passage, Lifetime Brass,
CARWIN 12 LB 234	Passage, Lifetime Brass,
CARWIN 12 PB 238	Passage, Polished Brass,
CARWIN 12 PB 234	Passage, Polished Brass,
CARWIN 12 PN 238	Passage, Polished Nickel,
CARWIN 12 PN 234	Passage, Polished Nickel,
CARWIN 12 SN 238	Passage, Satin Nickel,
CARWIN 12 SN 234	Passage, Satin Nickel,
CARWIN 12 TB 238	Passage, Timeless Bronze,
CARWIN 12 TB 234	Passage, Timeless Bronze,
CARWIN 12 VB 238	Passage, Vintage Brass,
CARWIN 12 VB 234	Passage, Vintage Brass,
CARWIN 42 RH AP 238	Privacy, Antique Pewter,
