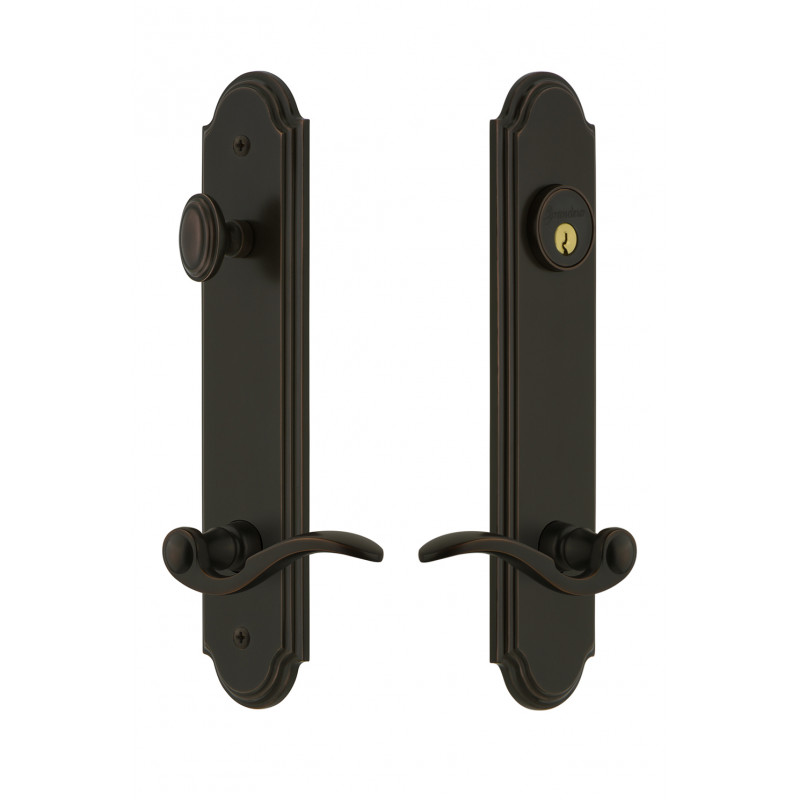

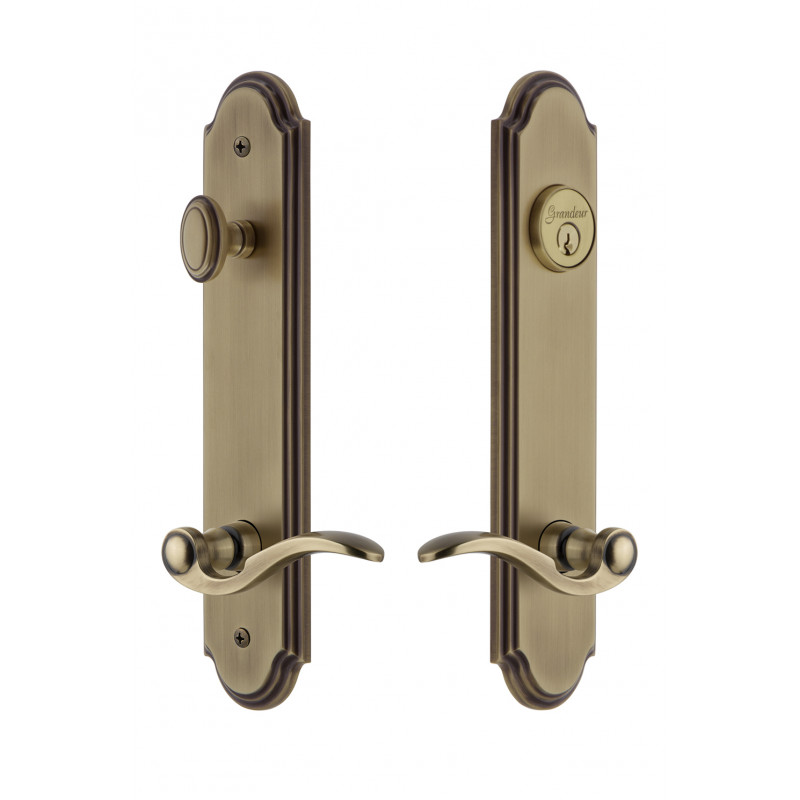

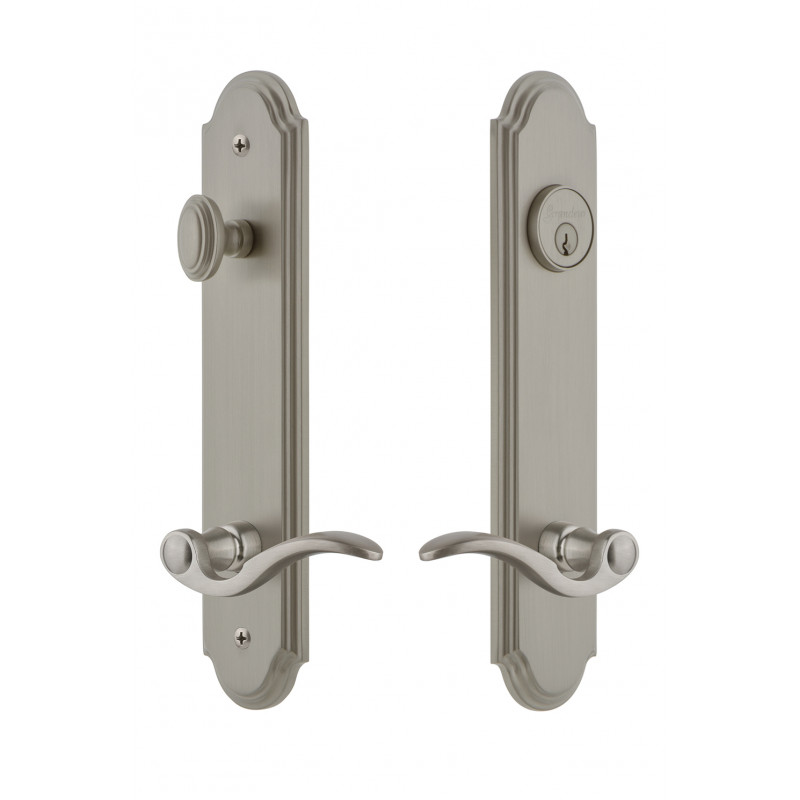

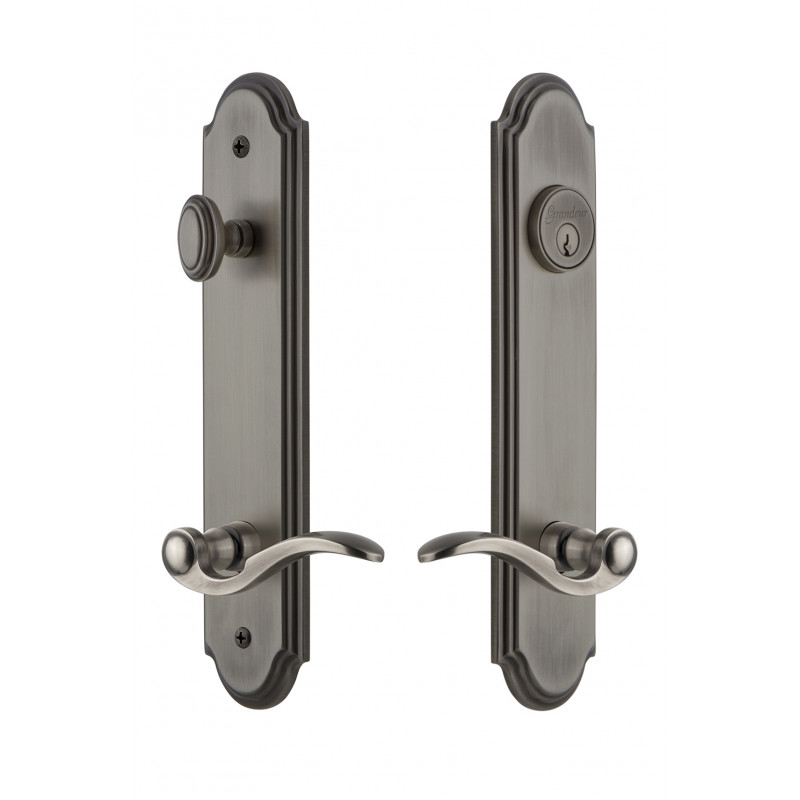

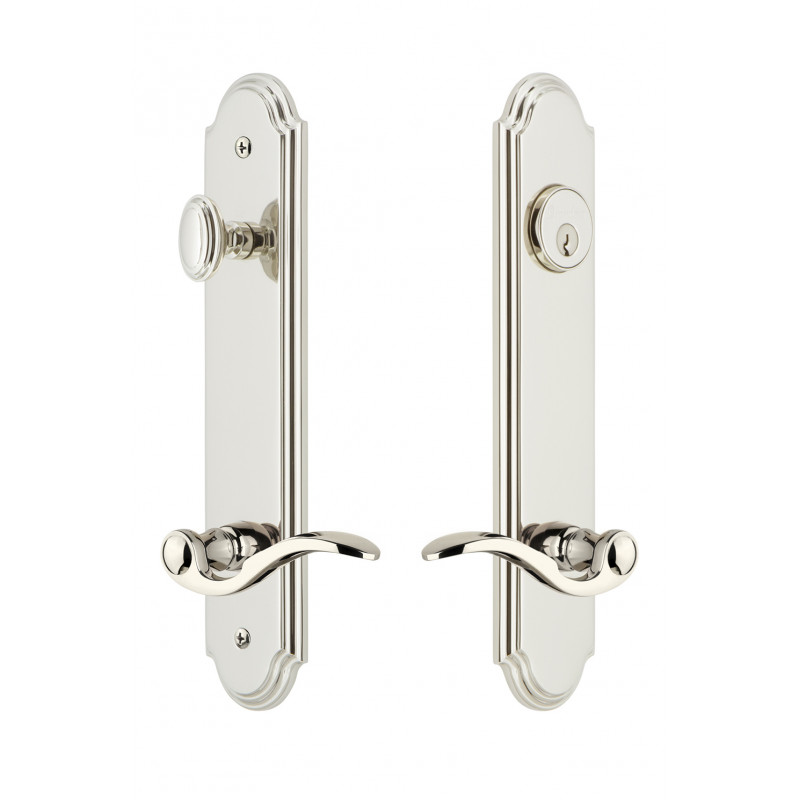

Grandeur Arc Tall Plate Complete Entry Set w/ Bellagio Lever

Model:
Part #: 841001

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Grandeur Arc Tall Plate Complete Entry Set w/ Bellagio Lever

The Arc Tall Plate conveys a thoughtful gentleness that is elongated to create an artistically graceful look to your door. These tall plates are ideal for doors that are taller in height providing an aesthetically pleasing plate-to-door ratio. This tall plate is available with any Grandeur Hardware knob, lever and finish to help you mix and match your door hardware.

Exterior and interior trim deadbolt, deadbolt latch and kit, exterior and interior tall plate trim, passage latch and kit, screws to install and two keys.

Made of solid, forged brass for long lasting durability
Ideal for doors that are 84 inches or higher, where a standard height plate would not look to scale
Drilling template and mounting hardware included for easy installation
Available in 6 designer finishes from Grandeur Hardware
If the hinges are located on the right side of the door, then you will need a right-hand door knob. This means the privacy pin will be located on the left side of the knob.

Design Code: ARCBEL
Collection: Arc
Category: Entry Set
ADA Rated: YES
Finishes Available: Antique Pewter, Lifetime Brass, Polished Nickel, Satin Nickel, Timeless Bronze, Vintage Brass
Material: Brass
Door Handing: RH
Backset Options: 2-3/8", 2-3/4"
Assembled In: YES

Dimensions

Tall Plate Height: 11"
Tall Plate Width: 2.5"
Plate Thickness: 0.39"
Lever Width: 4.5"
Projection: 2.32"
Cross Bore: 2.125"
Door Thickness: 1 3/4" - 2"
Thumb Turn Diameter: 1.375"
Thumb Turn Projection: 1.55"

Shipping

Box Size: 7" × 5-1/8" × 19-1/4"
Shipping Weight: 6.75 lbs

Grandeur Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
ARCBEL 82 LH KD VB 234	Vintage Brass, Keyed Different,
ARCBEL 82 RH KD AP 238	Keyed Different, Antique Pewter,
ARCBEL 82 RH KA AP 238	Keyed Alike, Antique Pewter,
ARCBEL 82 LH KA AP 238	Keyed Alike, Antique Pewter,
ARCBEL 82 LH KD AP 238	Keyed Different, Antique Pewter,
ARCBEL 82 RH KD AP 234	Keyed Different, Antique Pewter,
ARCBEL 82 RH KA AP 234	Keyed Alike, Antique Pewter,
ARCBEL 82 LH KA AP 234	Keyed Alike, Antique Pewter,
ARCBEL 82 LH KD AP 234	Keyed Different, Antique Pewter,
ARCBEL 82 RH KD LB 238	Lifetime Brass, Keyed Different,
ARCBEL 82 RH KA LB 238	Lifetime Brass, Keyed Alike,
ARCBEL 82 LH KA LB 238	Lifetime Brass, Keyed Alike,
ARCBEL 82 LH KD LB 238	Lifetime Brass, Keyed Different,
ARCBEL 82 RH KD LB 234	Lifetime Brass, Keyed Different,
ARCBEL 82 RH KA LB 234	Lifetime Brass, Keyed Alike,
