Grandeur Carre Plate w/ Burgundy Crystal Knob & Matching Deadbolt

View larger

Grandeur Carre Short Plate w/ Burgundy Crystal Knob & Matching Deadbolt

Model:
Part #: 826270

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

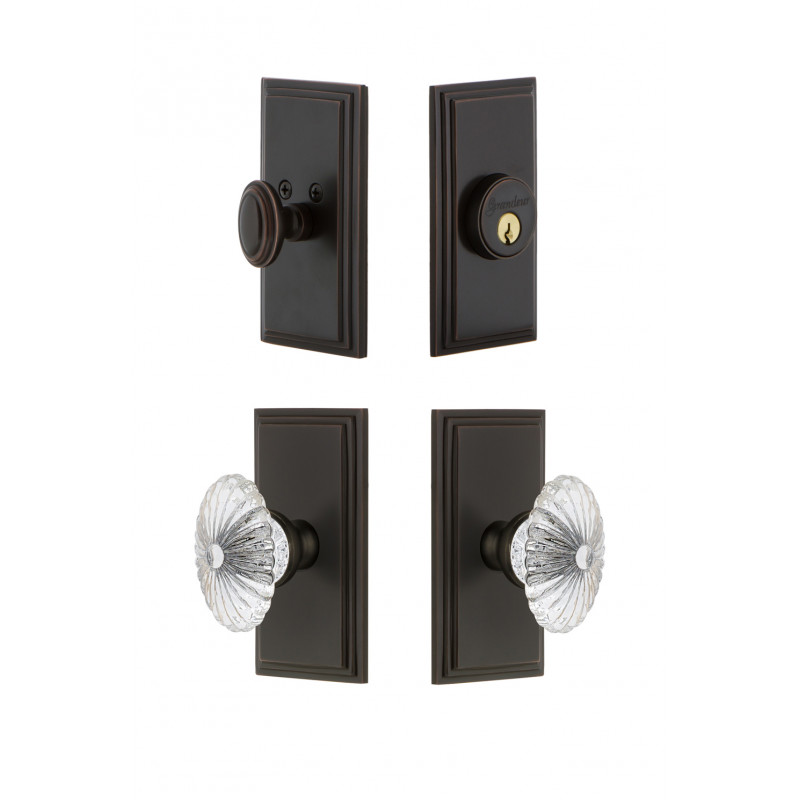

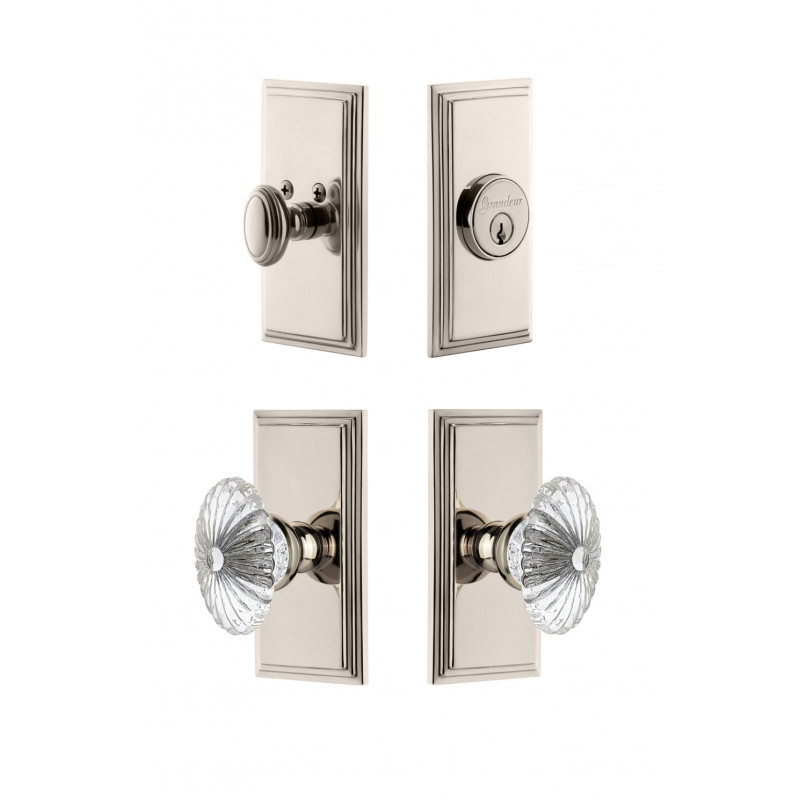

Details: Grandeur Carre Short Plate w/ Burgundy Crystal Knob & Matching Deadbolt

The Carre plate, with its clean parallel lines and uncomplicated shape provides for endless versatility. Combine our Burgundy Crystal Knob and matching Carre Deadbolt, and the result will appeal to both your visual and tactile senses. All Grandeur knobs are created from 24% lead crystal for unparalleled clarity and beauty, and mounted on a solid (not plated) forged brass base.

Exterior and interior trim deadbolt, deadbolt latch and kit, exterior and interior trim handleset, handleset latch and kit, screws to install and two keys.

Solid forged brass for fine detail
Complete set for one door (both sides)
Perfect for restoration and easy to install on modern pre-drilled doors
Hand assembled in the USA
Lifetime Mechanical Warranty

Design Code: CARBUR
Collection: Carre
Category: Entry Set
ADA Rated: NO
Finishes Available: Antique Pewter, Lifetime Brass, Polished Nickel, Satin Nickel, Timeless Bronze, Vintage Brass
Material: Brass/24% Lead Crystal
Door Handing: Non-handed
Backset Options: 2-3/8", 2-3/4"
Assembled In: YES

Dimensions

Long Plate Height: 4.75"
Long Plate Width: 2.5"
Knob Height: 2.75"
Knob Width: 1.75"
Projection: 2.75"
Cross Bore: 2.125"
Door Thickness: 1 3/8" - 1 3/4"
Thumb Turn Diameter: 1.42"
Thumb Turn Projection: 1.69"
Edge Bore Hole Diameter: 1"
Door Bore Hole Diameter: 2.125"
Strike Height: 2.25"
Strike Width: 1"
Deadbolt Throw Length: 1"

Shipping

Box Size: 19-3/8" × 7" × 5-3/4"
Shipping Weight: 7.5 lbs

Grandeur Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
CARBUR 68 KA SN 238	Satin Nickel, Keyed Alike,
CARBUR 68 KD SN 234	Satin Nickel, Keyed Different,
CARBUR 68 KD SN 238	Satin Nickel, Keyed Different,
CARBUR 68 KA TB 234	Keyed Alike, Timeless Bronze,
CARBUR 68 KA TB 238	Keyed Alike, Timeless Bronze,
CARBUR 68 KD TB 234	Keyed Different, Timeless Bronze,
CARBUR 68 KD TB 238	Keyed Different, Timeless Bronze,
CARBUR 68 KA VB 234	Vintage Brass, Keyed Alike,
CARBUR 68 KA VB 238	Vintage Brass, Keyed Alike,
CARBUR 68 KD VB 234	Vintage Brass, Keyed Different,
CARBUR 68 KD VB 238	Vintage Brass, Keyed Different,
CARBUR 68 KA AP 238	Keyed Alike, Antique Pewter,
CARBUR 68 KA AP 234	Keyed Alike, Antique Pewter,
CARBUR 68 KD AP 238	Keyed Different, Antique Pewter,
CARBUR 68 KD AP 234	Keyed Different, Antique Pewter,
