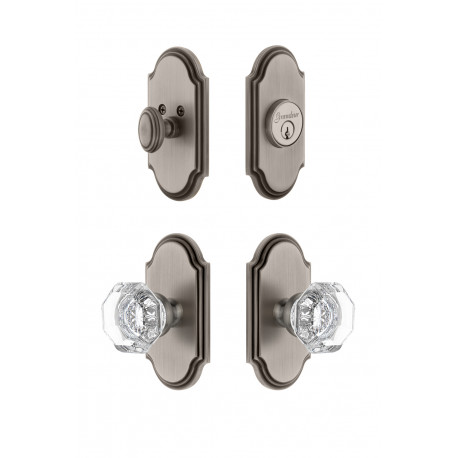

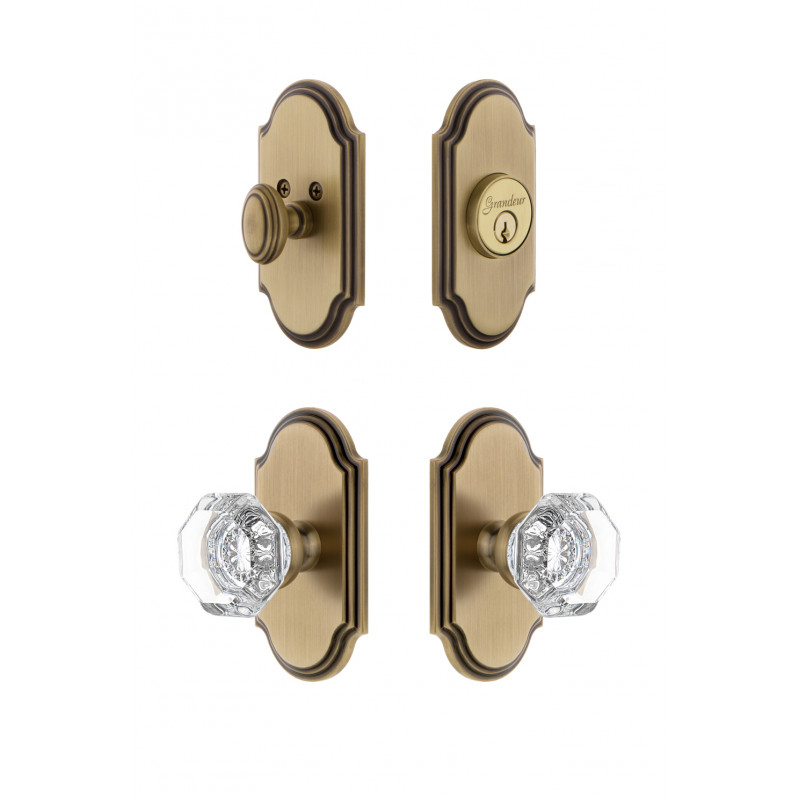

Grandeur Arc Short Plate w/ Chambord Crystal Knob & Matching Deadbolt


826365

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$585.00

Details: Grandeur Arc Short Plate w/ Chambord Crystal Knob & Matching Deadbolt

The Arc Plate, with its graceful top curve meeting a waterfall edge, conveys a gentleness augmented by strength. Pair this with the Chambord Crystal Knob and matching Arc Deadbolt for a clean, yet vintage, style. All Grandeur knobs are created from 24% lead crystal for unparalleled clarity and beauty, and mounted on a solid (not plated) forged brass base.

Exterior and interior trim deadbolt, deadbolt latch and kit, exterior and interior trim handleset, handleset latch and kit, screws to install and two keys.

  • Solid forged brass for fine detail
  • Complete set for one door (both sides)
  • Perfect for restoration and easy to install on modern pre-drilled doors
  • Hand assembled in the USA
  • Lifetime Mechanical Warranty
Design Code
ARCCHM
Collection
Arc
Category
Entry Set
ADA Rated
NO
Finishes Available
Antique Pewter, Lifetime Brass, Polished Nickel, Satin Nickel, Timeless Bronze, Vintage Brass
Material
Brass/24% Lead Crystal
Door Handing
Non-handed
Backset Options
2-3/8", 2-3/4"
Assembled In
YES

Dimensions

Long Plate Height
4.75"
Long Plate Width
2.5"
Knob Diameter
2.5"
Projection
2.75"
Cross Bore
2.125"
Door Thickness
1 3/8" - 1 3/4"
Thumb Turn Diameter
1.42"
Thumb Turn Projection
1.69"
Edge Bore Hole Diameter
1"
Door Bore Hole Diameter
2.125"
Strike Height
2.25"
Strike Width
1"
Deadbolt Throw Length
1"

Shipping

Box Size
19-3/8" × 7" × 5-3/4"
Shipping Weight
7.5 lbs

Available Model Numbers and Combinations

Model/SKUAttributes
ARCCHM 68 KA AP 238 Keyed Alike, Antique Pewter,
ARCCHM 68 KA AP 234 Keyed Alike, Antique Pewter,
ARCCHM 68 KD AP 238 Keyed Different, Antique Pewter,
ARCCHM 68 KD AP 234 Keyed Different, Antique Pewter,
ARCCHM 68 KA LB 238 Lifetime Brass, Keyed Alike,
ARCCHM 68 KA LB 234 Lifetime Brass, Keyed Alike,
ARCCHM 68 KD LB 238 Lifetime Brass, Keyed Different,
ARCCHM 68 KD LB 234 Lifetime Brass, Keyed Different,
ARCCHM 68 KA PN 234 Keyed Alike, Polished Nickel,
ARCCHM 68 KA PN 238 Keyed Alike, Polished Nickel,
ARCCHM 68 KD PN 234 Keyed Different, Polished Nickel,
ARCCHM 68 KD PN 238 Keyed Different, Polished Nickel,
ARCCHM 68 KA SN 234 Satin Nickel, Keyed Alike,
ARCCHM 68 KA SN 238 Satin Nickel, Keyed Alike,
ARCCHM 68 KD SN 234 Satin Nickel, Keyed Different,
