  5. D&D 750572 SureClose 57 AT90 Flush Mount Hinge & Closer, Finish-Dark Gray

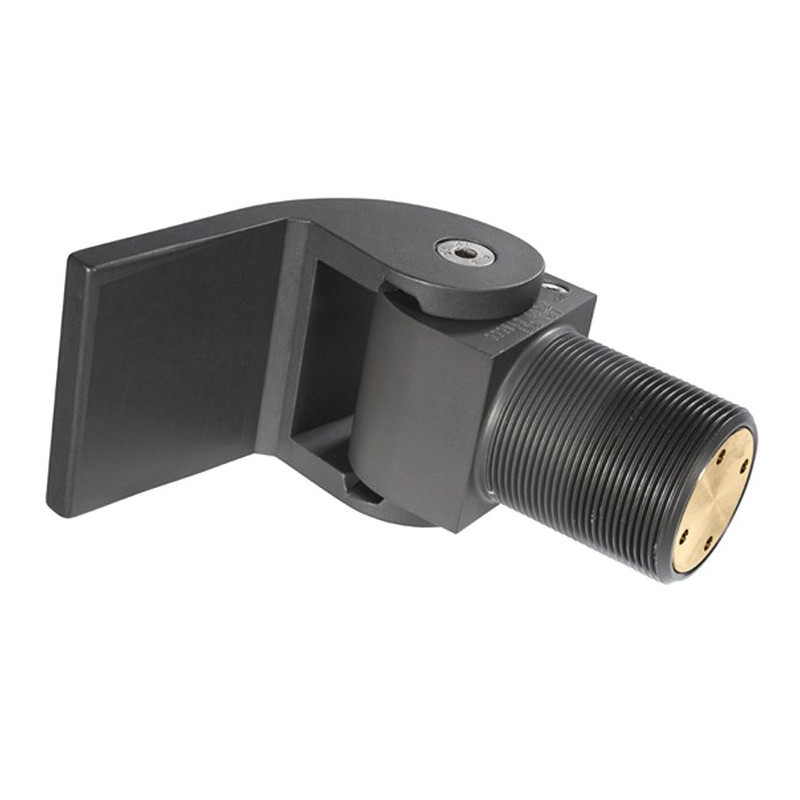

Reduced price! D&D 750572 SureClose 57 AT90 Hinge & Closer, Flush Mount View larger

D&D

Previous Next

D&D 750572 SureClose 57 AT90 Flush Mount Hinge & Closer, Finish-Dark Gray

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$228.80

5% Off

$240.84

Details: D&D 750572 SureClose 57 AT90 Flush Mount Hinge & Closer, Finish-Dark Gray

SureClose 57 is a concealed hydraulic gate closer. It is speed adjustable using the enclosed adjustment tool and designed to never leak hydraulic fluid. Extremely safe and does not offer resistance if closed quickly in an emergency. Soft, quiet closure also protects the latching/locking system. A real workhorse tested to 500,000 open/close cyles and a 1,500lb. (680kg) point load.

All SureClose hinges and closers come packaged with the gate mounting bracket included. Post mounting brackets sold separately.

Aluminum gate mounting brackets: Pre-drill using 3/16" (5mm) drill bit and use #14 countersunk through-bolts or fasteners. See post brackets for their fastener requirements.

Features

  • Self-Closing
  • Flush Mount Brackets
  • Available with Aluminum Screw-On Bracket (108 S) or Steel Weld-On Bracket (108 W)
  • Max Gate Swing: 178 - Self-Closing from 83, Holds open at 90
  • Fence Post Minimum: 2"+
  • Hinge Gap: 1/2"
  • ADA Compliant
  • Adjustable closing speed
  • Visibly small footprint
  • Highly tamper resistant
  • Maintenance free - No messy grease
  • Self-closes gates up to 180lbs.

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

SureClose 'Centre Mount' Installation
