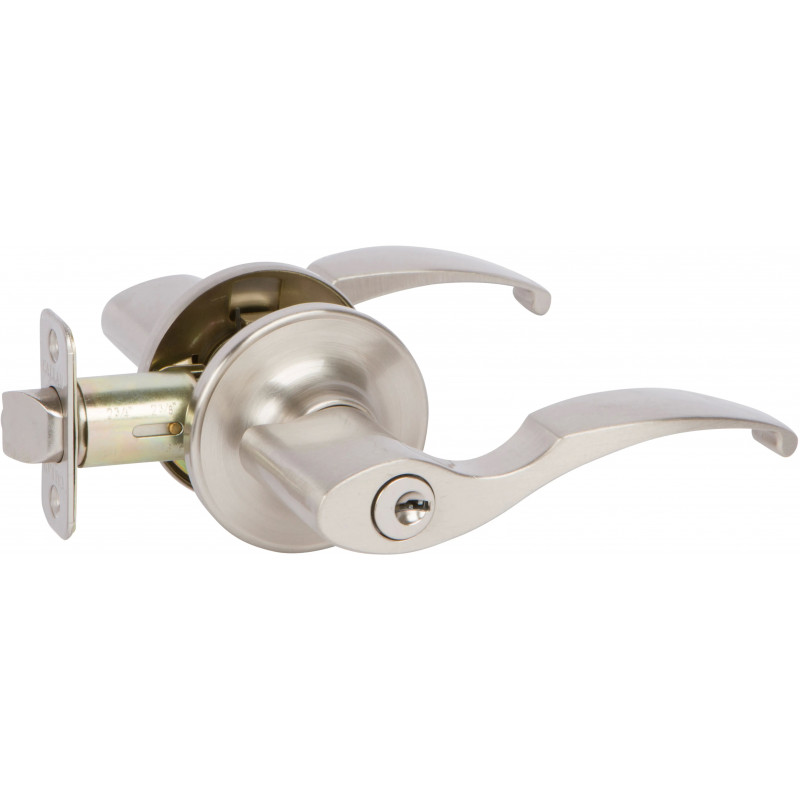

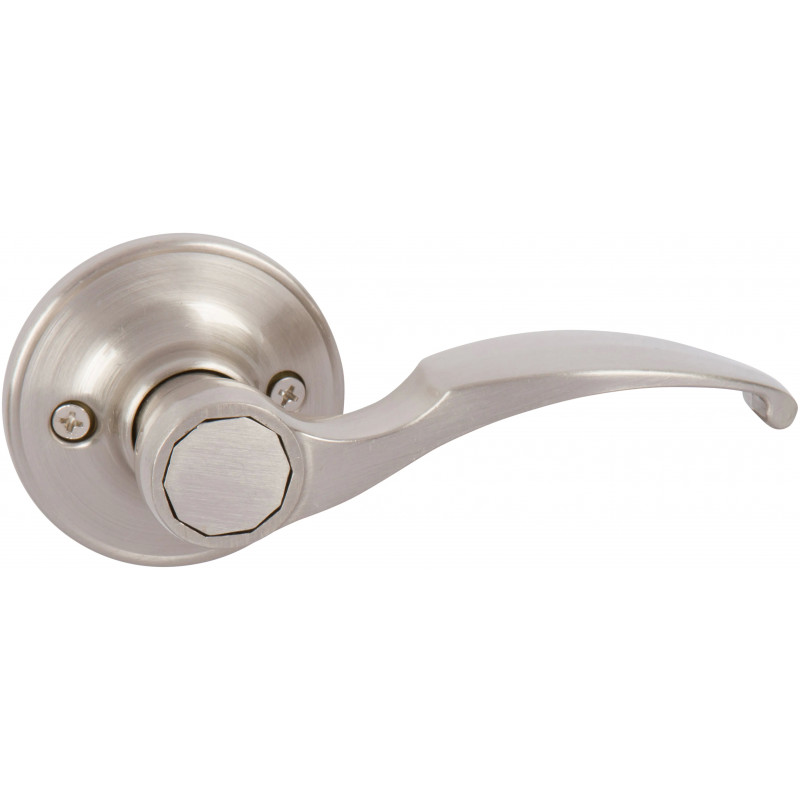

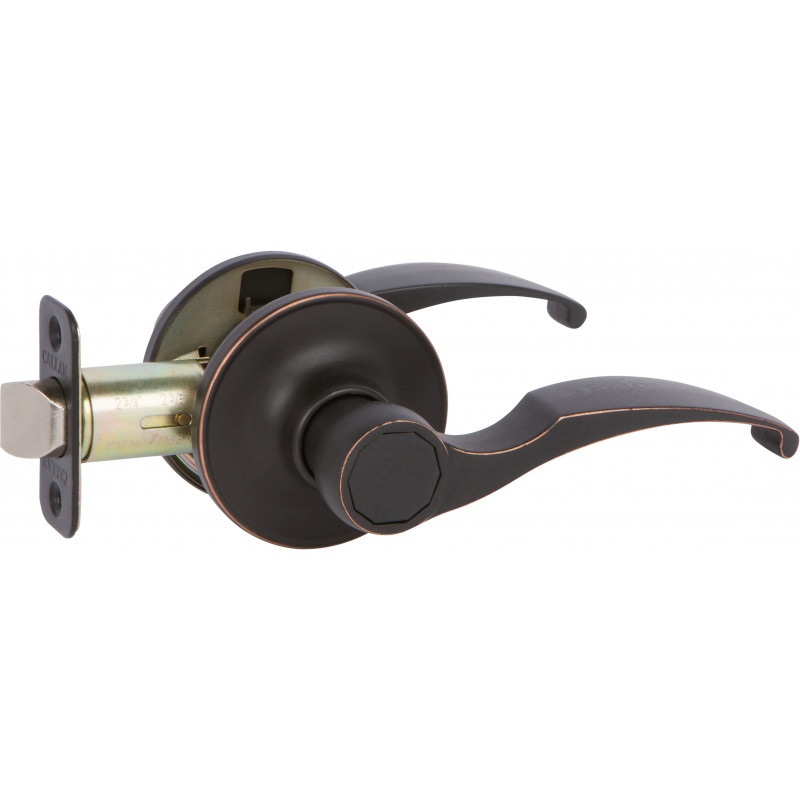

Delaney KI5 Callan Kendall Grade 3 Leverset, Round Trim

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$40.04

23% Off

$52.00

Details: Delaney KI5 Callan Kendall Grade 3 Leverset, Round Trim

Features

  • Meets BHMA security grade 3 requirements
  • Made of durable zinc
  • Fully reversible handing for left or right handed applications
  • Designed for an easy one person installation
  • Comes standard with a round corner latch faceplate and 1/2" throw
  • Meets the requirements for the American's with Disabilities Act (ADA) requirements

Specifications

Backset
Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Edge Bore
1"
Door Thickness
1-3/8" to 1-3/4"
Handing
Reversible Left or Right
Projection
2"
Latch Faceplate
Round Corner
Cylinder
5 Pin KW1
Concealed Screws
No
Material
Zinc

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
KI5011R Passage, Satin Nickel
KI5017R Passage, Edged Bronze
KI5021R Privacy, Satin Nickel
KI5027R Privacy, Edged Bronze
KI5101R Satin Nickel, Entrance
KI5107R Entrance, Edged Bronze
KI5051R Satin Nickel, Dummy
KI5057R Dummy, Edged Bronze
