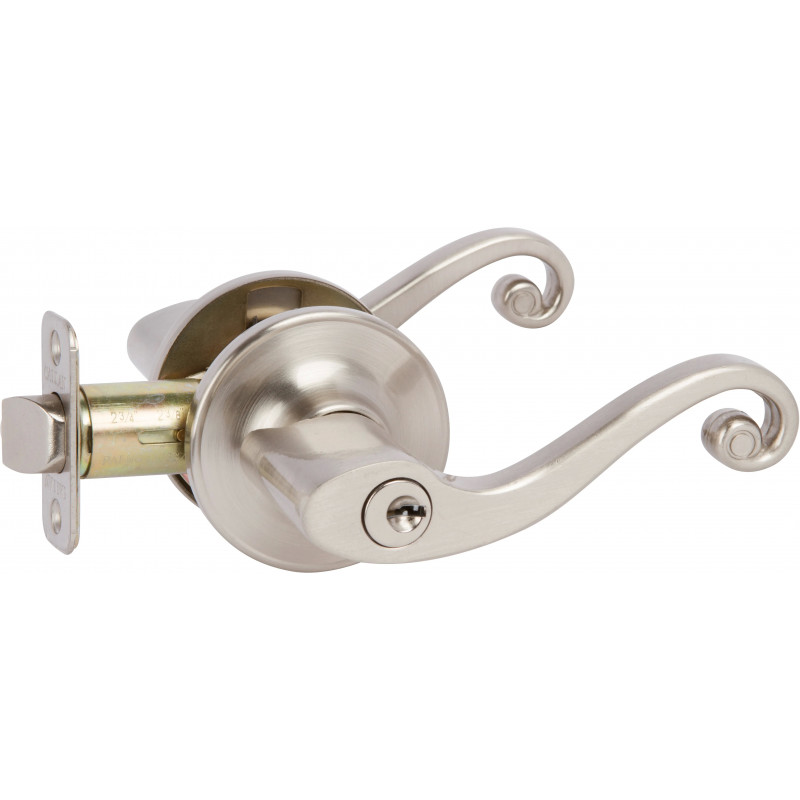

Delaney KA5 Callan Lexington Grade 3 Leverset, Round Trim, Finish - Satin Nickel

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$40.04

23% Off

$52.00

Details: Delaney KA5 Callan Lexington Grade 3 Leverset, Round Trim, Finish - Satin Nickel

Features

  • Meets BHMA security grade 3 requirements
  • Made of durable zinc
  • Fully reversible handing for left or right handed applications
  • Designed for an easy one person installation
  • Comes standard with a round corner latch faceplate and 1/2" throw
  • Meets the requirements for the American's with Disabilities Act (ADA) requirements

Specifications

Backset
Adjustable 2-3/8" or 2-3/4"
Cross Bore
2-1/8"
Edge Bore
1"
Door Thickness
1-3/8" to 1-3/4"
Handing
Reversible Left or Right
Projection
1-7/8"
Latch Faceplate
Round Corner
Cylinder
5 Pin KW1
Concealed Screws
No
Material
Zinc

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
KA5011R Passage
KA5021R Privacy
KA5051R Dummy
KA5101R Entrance
