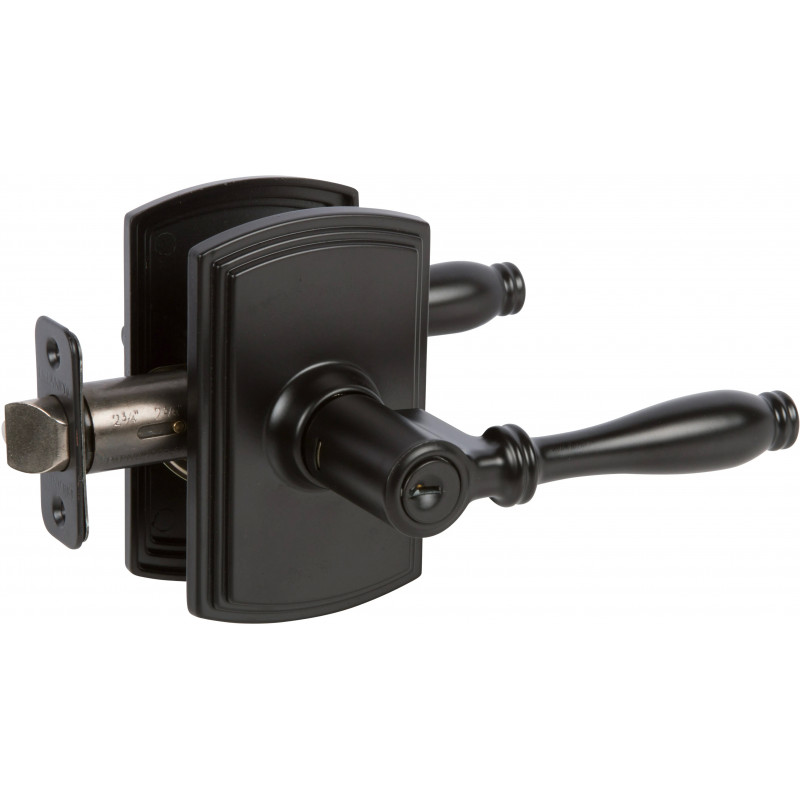

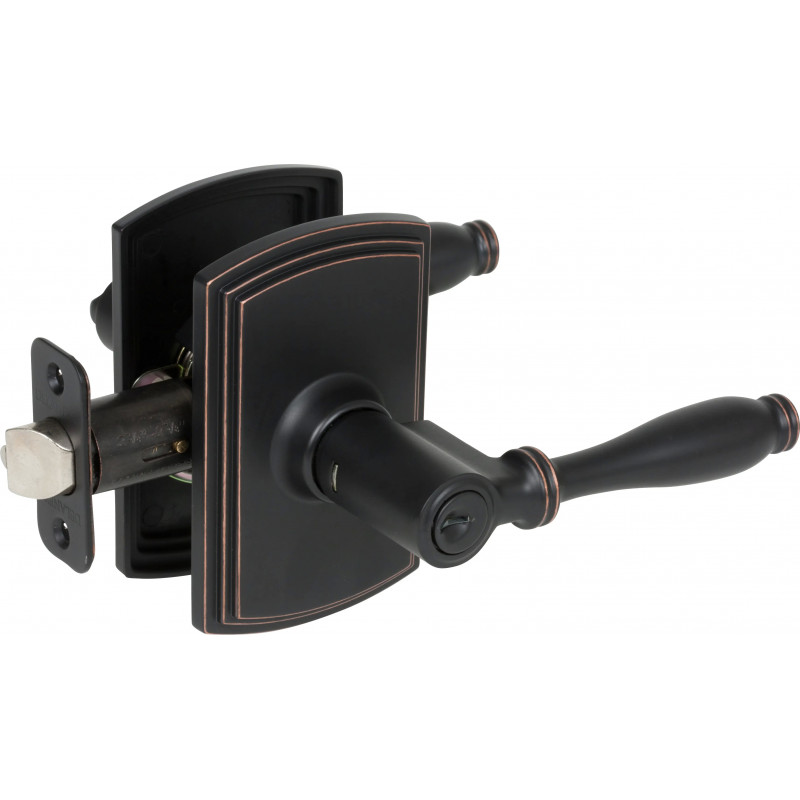

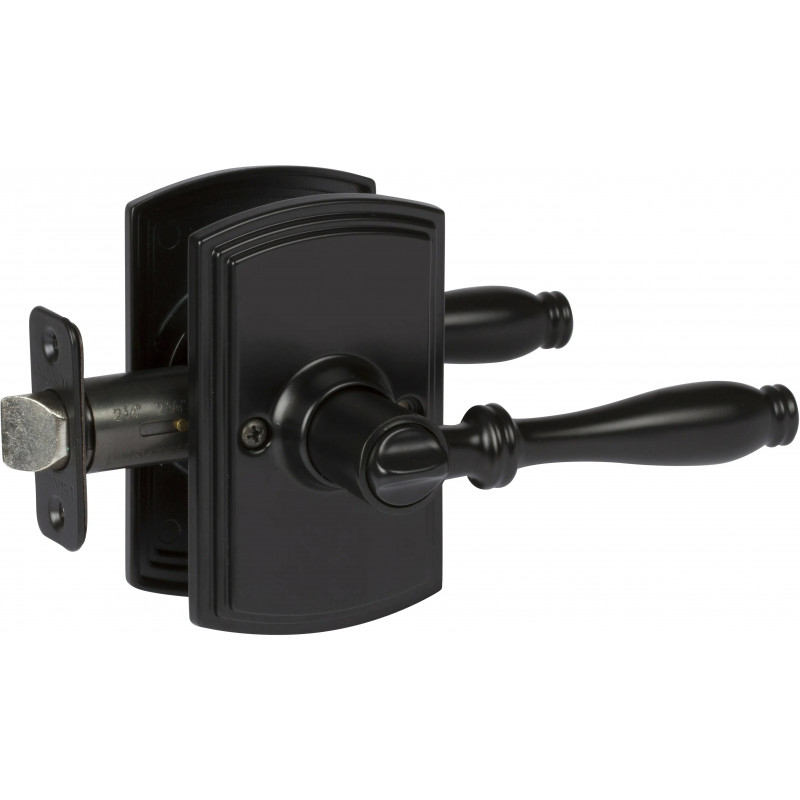

Delaney 36 Callan Sorado Grade 3 Leverset, Square Trim

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$80.85

23% Off

$105.00

Details: Delaney 36 Callan Sorado Grade 3 Leverset, Square Trim

Features

  • All Metal Construction
  • Reversible Handing (Left or Right)
  • KW1 Solid Brass 5 Pin Cylinder
  • Cylinder can be Removed for Easy Re-keying
  • Includes Round Corner Latch
  • Combination Screws for Wood or Metal Door Mounting
  • Concealed Screws

Specifications

Backset
2-3/4", 2-3/8"
Cross Bore
2-1/8"
Edge Bore
1"
Handle Style
Lever
Latch Face
Round Corner
Strikes
Full Lip Round Corner
Door Thickness
Adjustable from 1-3/8" to 1-3/4"
Lever Length
4-1/8"
Projection
2-5/16"

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
360104 Entrance,
360107 Entrance, Edged Bronze
364104 Passage,
364107 Passage, Edged Bronze
362104 Privacy,
362107 Privacy, Edged Bronze
365104 Dummy,
365107 Dummy, Edged Bronze
