Reduced price!

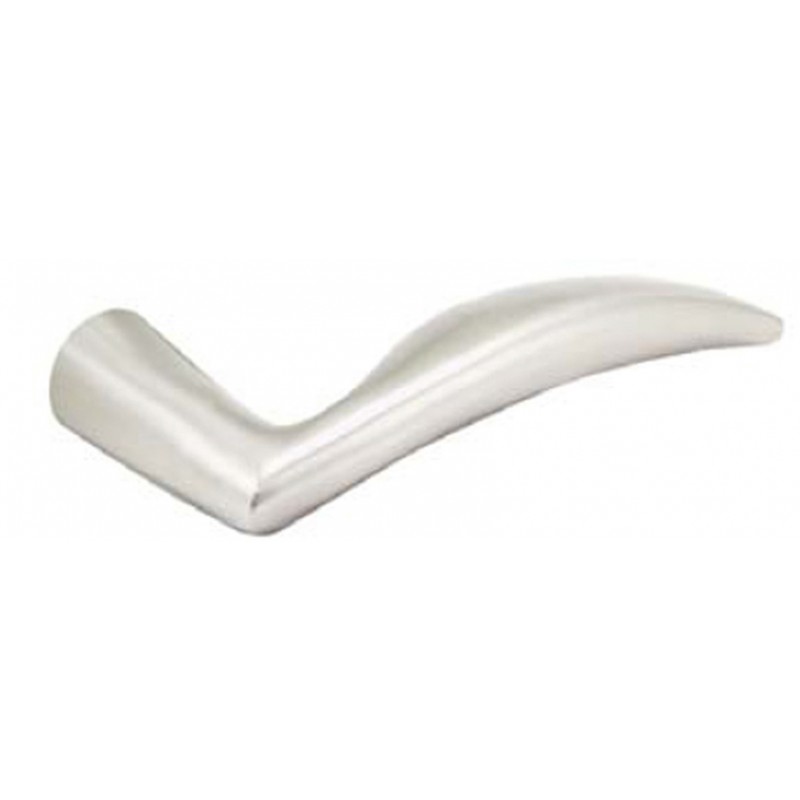

Cal-Royal Italia Series Siena Stainless Steel Lockset

View larger

Cal-Royal SIE Italia Series Siena Stainless Steel Lockset

Model: SIE-

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Cal-Royal SIE Italia Series Siena Stainless Steel Lockset

TUBULAR LATCH SET

Application

For residential and commercial interior doors with privacy, passage and dummy function

Material

Stainless Steel Levers, Knobs and Rose

Specifications

Door thickness: 1 ⅜" (35) to 1 ¾" (44)
Latch Backset: 2 ⅜" (60) standard, 2 ¾" (70) optional
Grade 2 Latch: CTG2 Adjustable 2 ⅜" (60) and 2 ¾" (70) (optional)
Handing: Most lever designs are non-handed, Handed designs are marked accordingly. Specify handing upon ordering
Latch Faceplate: 1" × 2 ¼" (25 × 57) square corner
Emergency Pin: Available as standard for privacy function
Strike(FLS): Full Lip Strike 1" × 2 ¼", ¼" round corner (standard)
Strike(TS): T-Strike 1 ⅛" × 2" square corner (standard)
Strike(ASA478 US32D): ANSI Strike 4 ⅞" × 1 ¼" (optional)

TUBULAR ENTRY SET

Application

For residential and commercial exterior and interior doors with entrance, privacy, passage and dummy function

Material

Stainless Steel Levers, Knobs and Escutcheons

Specifications

Door thickness: 1 9 ⁄16" (40) - 2 (50)
Latch Backset: 2 ⅜" (60) standard,2 ¾" (70) optional
Handing: Field reversible for passage and privacy function
Latch Faceplate: 1" × 2 ¼" (25 × 57) square corner
Strike(FLS): Full Lip Strike 1" × 2 ¼", ¼" round corner (standard)
Strike(TS): T-Strike 1 ⅛" × 2" square corner (standard)
Strike(ASA478 US32D): ANSI Strike 4 ⅞" × 1 ¼" (optional)

Grade 2 Latch Upgrade

Available for Entrance, Privacy and Passage functions of lever / knob

Downloads

Catalog

Cal-Royal Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
SIE-004-RS-US32	Right Handed, Entrance w/ Deadbolt, 2 3/4", Polished Stainless Steel, Scudo, Not Included
SIE-204-RG-US32	Privacy, Right Handed, 2 3/4", Polished Stainless Steel, Giro, Not Included
SIE-004-RS-US1	Flat Black, Right Handed, Entrance w/ Deadbolt, 2 3/4", Scudo, Not Included
SIE-304-LQ-US32D	Passage, 2 3/4", Left Handed, Quadro, Satin Stainless Steel, Not Included
SIE-204-RG-US1	Privacy, Flat Black, Right Handed, 2 3/4", Giro, Not Included
SIE-304-LQ-US32	Passage, 2 3/4", Polished Stainless Steel, Left Handed, Quadro, Not Included
SIE-208-LG-US32D	Privacy, Left Handed, Giro, 2 3/8" (standard), Satin Stainless Steel, Not Included
SIE-204-RQ-US32D	Privacy, Right Handed, 2 3/4", Quadro, Satin Stainless Steel, Not Included
SIE-304-LQ-US1	Passage, Flat Black, 2 3/4", Left Handed, Quadro, Not Included
SIE-208-LG-US32	Privacy, Polished Stainless Steel, Left Handed, Giro, 2 3/8" (standard), Not Included
SIE-208-LG-US1	Privacy, Flat Black, Left Handed, Giro, 2 3/8" (standard), Not Included
SIE-304-LS-US32D	Passage, 2 3/4", Left Handed, Scudo, Satin Stainless Steel, Not Included
SIE-204-RQ-US32	Privacy, Right Handed, 2 3/4", Polished Stainless Steel, Quadro, Not Included
SIE-40-LG-UL32D	Dummy, Left Handed, Giro, Satin Stainless Steel, Not Included
SIE-304-LS-US32	Passage, 2 3/4", Polished Stainless Steel, Left Handed, Scudo, Not Included
