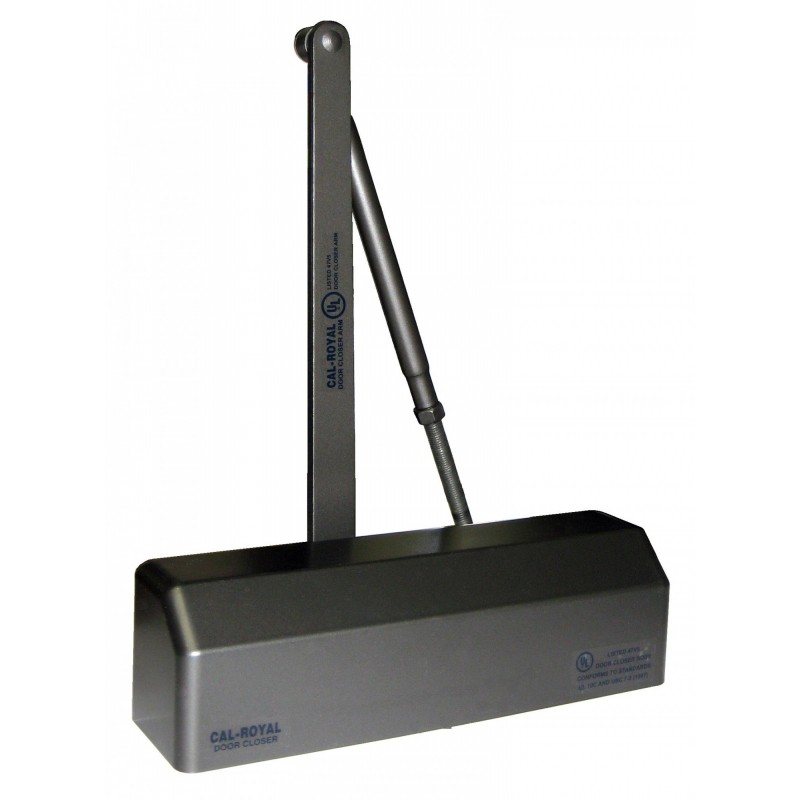

Cal-Royal 300P 300 Series Grade 1 ADA / Barrier Free Adjustable Door Closer With Full Cover

Model:

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Cal-Royal 300P 300 Series Grade 1 ADA / Barrier Free Adjustable Door Closer With Full Cover

The Cal Royal 300 PCOV door closer is great for an interior and exterior applications alike. Being adjustable for power sizes 3- 6 for exterior and 1- 4 for interior, this door closer can be used for all standard applications. Beyond that, the Cal Royal 300 PCOV has a standard back check and a heavy duty rack and pinion, which is the gear mechanism of the closer. Here are some more features of the device.

Features

Meets and Exceeds ANSI Standard 156.4 Grade 1
Universal Hole Pattern Offering Versatility And Precision Engineering For New And Retrofit Market
Multi Size Adjustable Commercial Door Closer
Sizes 1 Thru 4 and 3 Thru 6
Meeting Barrier Free Applications
Hydraulic Door Closer with Standard Back Check
Full Plastic Cover Is Standard Feature
Optional Adjustable Delayed Action For Handicapped Or Elderly
Full Cover Multi-size
Full Feature Closer
UL Listed, Conforms to Standards UL10C and UBC7- 2- 1997

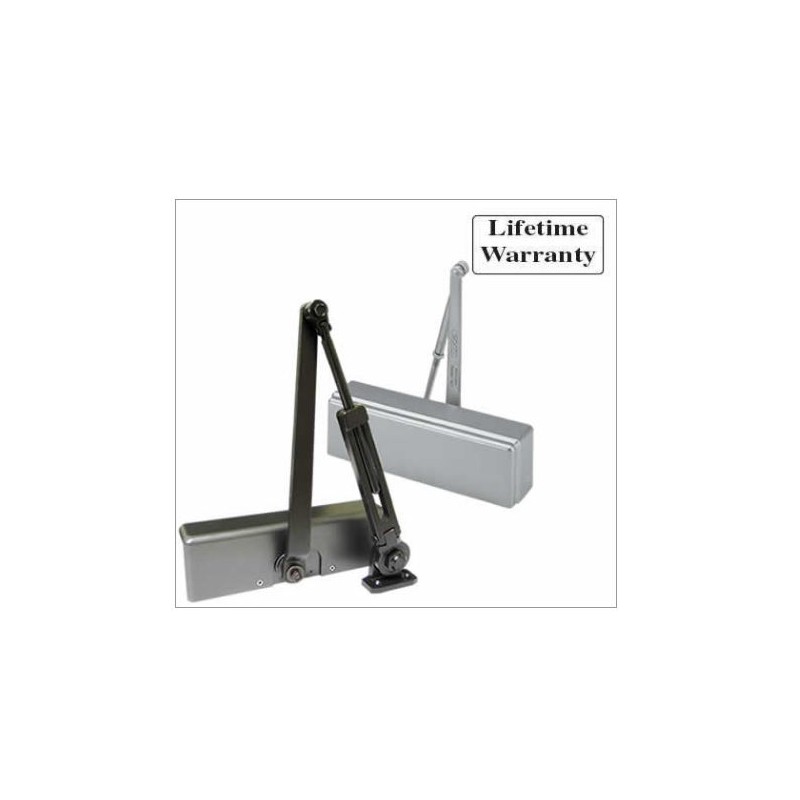

Lifetime Warranty
Factory tested to meet or exceed ANSI Â Standard 156.4, Grade 1
300 PBFCOV: Non-sized, fully adjustable 1 through 4, (Barrier Free ADA) interior doors. Full cover. For 30- 185 lbs door weight.
300 PCOV: Non-sized, fully adjustable 3 through 6, exterior doors. Full cover. For 85- 260 lbs door weight.
Standard adjustable back check intensity valve
Hydraulic door closer with standard adjustable back-check valve
Standard full plastic cover (2 5/8" W × 3" H × 10 1/8" L) COV/400
Universal Mounting - standard size #4 Mounting Holes. (9 - 1/16")

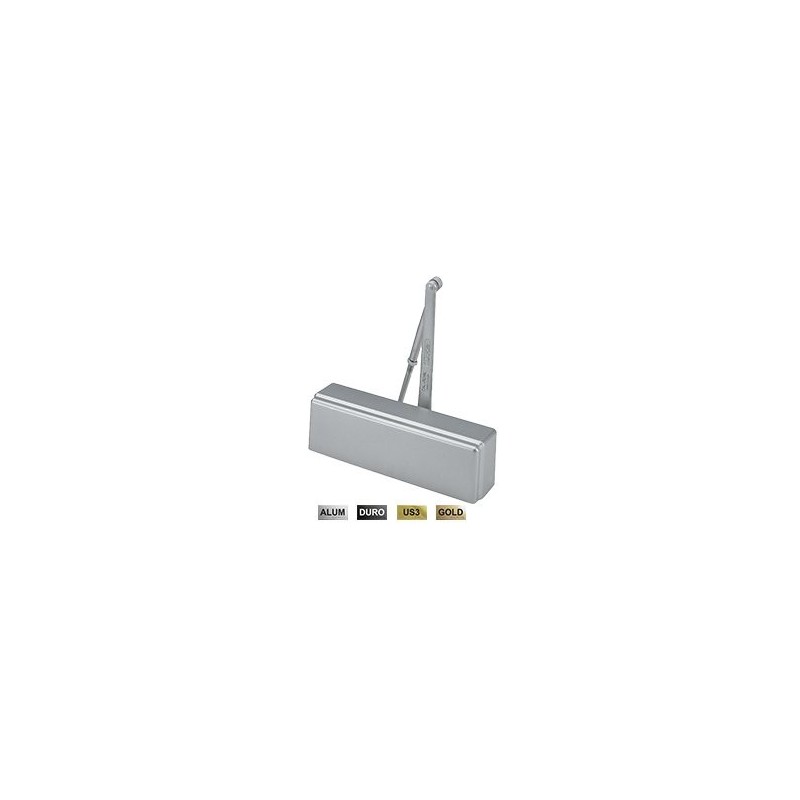

Finishes available: Alum, Dark Bronze (Duro), Gold, and US3
Dual valve, closing and latching speed controlled by two separate regulating valves
Universal application, non-handed, designed for all standard installations
Reinforced type adjustable tube arm
Rack and pinion operation contained in a high tensile precision cast with needle bearing aluminum housing for the highest quality
High quality hydraulic fluid for high lubricity and constant lubrication
The streamlined design permits installation on most commercial and residential applications without adaptors
Power adjustment bracket on regular arms (15% adjustments, Â± 7 1/2%)
Hold open arm optional (Part #301/302) for regular & parallel installations
Can be used for retrofit of Norton 1600 and Yale 50

Specifications

Length of Closer Body: 9- 3/4"
Horizontal Mounting Holes: 9- 1/16"
Vertical Mounting Holes: 3/4"
Height of Closer Body: 1- 3/4"
Projection from Door: 2- 7/8"

Style and Finish Availability

300PCOV: Aluminum, Duranodic, Gold, and US3
300PBFCOV: Aluminum, Duranodic, Gold, US15, US26D, US3, and US4
300PBFDACOV: Aluminum, Duranodic, Gold, and US3

Cal-Royal has focused on providing 'Innovative and Value Added' hardware products and accessories to the builders industry since 1983. In accepting this charter Cal-Royal has continued to be the leader in import hardware. Their product offering is designed to comply with the Americans with Disabilities Act (ADA) and to encompass all levels of ANSI classification Grades 1 2 and 3 as well as UL requirements. They offer a complete line of mortise locks exit devices door closers hinges and many other hardware and trim products.

Exterior (and Vestibule) Door Width
24"		30"			36"		42"		48"
300 Series	\|<—	Size 3	—>\|
	\|<—		Size 4			—>\|
	\|<—			Size 5				—>\|
	\|<—					Size 6				—>\|
Minimum door Width

Interior Door Width
24"		34"			38"			48"		54"		60"
300 Series	\|<—	Size 2	—>\|
	\|<—		Size 3			—>\|
	\|<—			Size 4					—>\|
	\|<—					Size 5					—>\|
	\|<—						Size 6					—>\|
Minimum door Width							Adjustable 1 thru 6

Cal-Royal Warranty

Cal-Royal Door Closers Cross References Chart

cal-royal	corbin russwin	dorma	dor-o-matic	global	hager	lcn	norton	pdq	parker	sargent	taylor	yale
900 FULL COVER	DC3200	8600FC	SC80FC	TC600	5200	1460FC	8501	5100/5500	---	1431	1900	3501
CR441	DC3000/DC6200	8900	SC70	TC4300	5100	4041	9500	7100	441BC	281/350	---	4400
CR801S SLIM COVER	DC3200 X M76	8600	SC80	TC500	5200SLC	1460-72	8301	---	---	1430	---	3301
CR801 FULL COVER	DC3200	8600FC	SC80FC	TC400	5200FC	1460FC	8501	5300	---	1431	---	3501
300	---	640/7300/7400	---	---	5300	1070/1370	1600	3100	900	1130	---	50
500	---	640/7300/7400	---	---	5300	1070/1370	1600	---	900	1130	---	50
700	4600	640	---	TC2200	5400	---	9300	---	500	---	600	2300
400	4600	640	---	TC300	5400	---	9300	---	500	---	500	2300

Door Closer Arm and Mounting Reference

MODEL	ARM						MOUNTING
MODEL	HOLD OPEN	REGULAR	PARALLEL	SUPER RIGID	TRACK	TRACK (HOLD-OPEN)	REGUALR ARM (PULL SIDE)	PARALLEL ARM (PUSH SIDE)	TOP JAMB (PUSH SIDE)
N900PBFA	O	Y	O	O	O	O	Y	Y	Y
N900PBFDA	O	Y	O	O	O	O	Y	Y	Y
CR441	O	Y	O	O	O	O	Y	Y	Y
CR441/TNDM
CR441DA
CR441DABC
CR441EHO	STD				STD	STD
CR801S	O	Y	O	O	O	O	Y	Y	Y
CR801SDA
CR801
CR801DA
300PCOV	O	Y	O	n/a	n/a	n/a	Y	Y	Y
300PBFCOV
300PBFDACOV
500PBF	O	Y	O	n/a	n/a	n/a	Y	Y	Y
720	O	Y	O	n/a	n/a	n/a	Y	Y	Y
730
730BC
740
740BC
750
750BC
420-P	O	Y	O	n/a	n/a	n/a	Y	Y	Y
SM430-P
430-P
430-PBC
440-P
O - Optional \| Y - Yes/Available \| STD - Standard \| *Not BHMA Certified

Available Model Numbers and Combinations

Model/SKU	Attributes
300PBFCOV ALUM	Not Included, Adjustable size 1-4, Aluminum
300PBFCOV DURO	Not Included, Adjustable size 1-4, Duranodic
300PBFCOV GOLD	Not Included, Adjustable size 1-4, Gold
300PCOV ALUM	Adjustable Size 3-6, Not Included, Aluminum
300PCOV DURO	Adjustable Size 3-6, Not Included, Duranodic
300PCOV GOLD	Adjustable Size 3-6, Not Included, Gold
300PBFDACOV ALUM	Adjustable size 1-4, Included, Aluminum
300PBFDACOV DURO	Adjustable size 1-4, Included, Duranodic
300PBFDACOV GOLD	Adjustable size 1-4, Included, Gold
