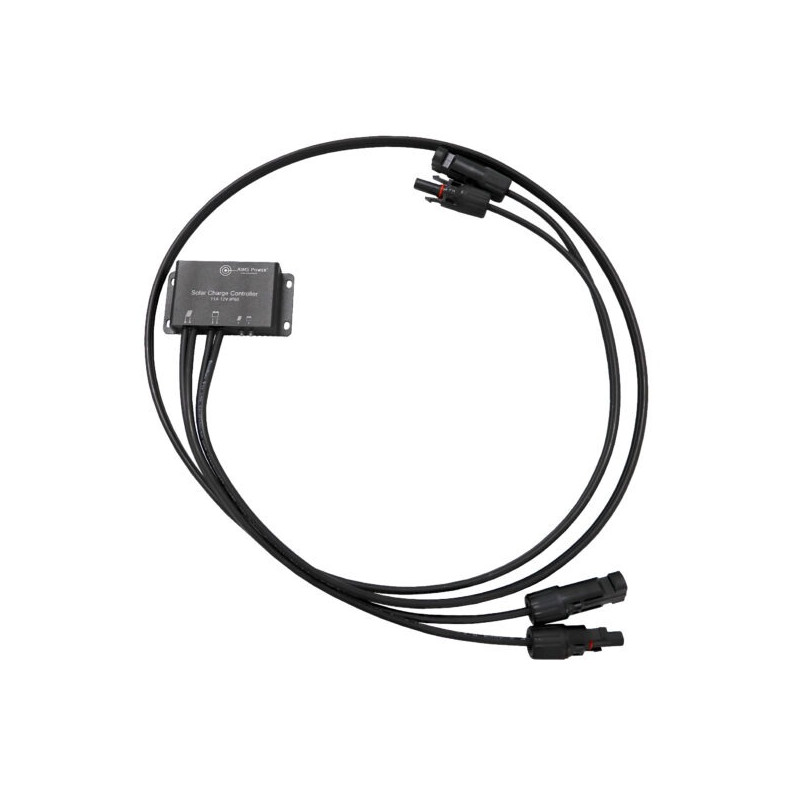

Aims Power SCC11ARPM Solar Charge Controller Waterproof 11 Amps with Cables

SCC11ARPM

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$59.99

Details: Aims Power SCC11ARPM Solar Charge Controller Waterproof 11 Amps with Cables

Super easy to install, waterproof solar charge controller. The controller includes the solar panel and battery cables for quick set up. Compact, but powerful measuring at only 4 inches. The built in MC4 cables allows for quick installation.

Features

  • Easy to install
  • Waterproof - IP68
  • Built in cables for easy extension using the MC4 connectors
  • LED indicators
  • 2 stage charger

Specifications

Max charge current
11A
Max PV input voltage
less than 30Voc
Max PV Input Power
190W (depending on sunlight)
Boost charge
14.2V
Float charge
13.8V
Boost charge recovery voltage
13.2V
Over discharge recovery voltage
11.1V
PV input cable length
13 inches
Battery output cable length
5 FT
Boost charge duration
2 hours
Operating temp
-32F to 140F / -35C to 60C
Weight
.5 lb unit, 1 lb shipped
Dimensions
3.25" X 1.75" x .625"

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
