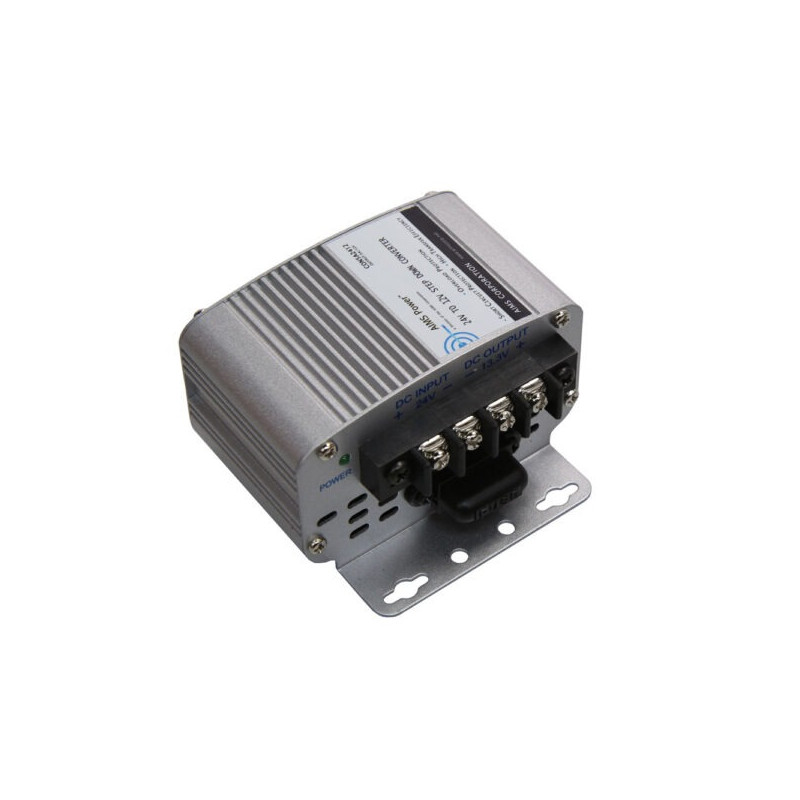

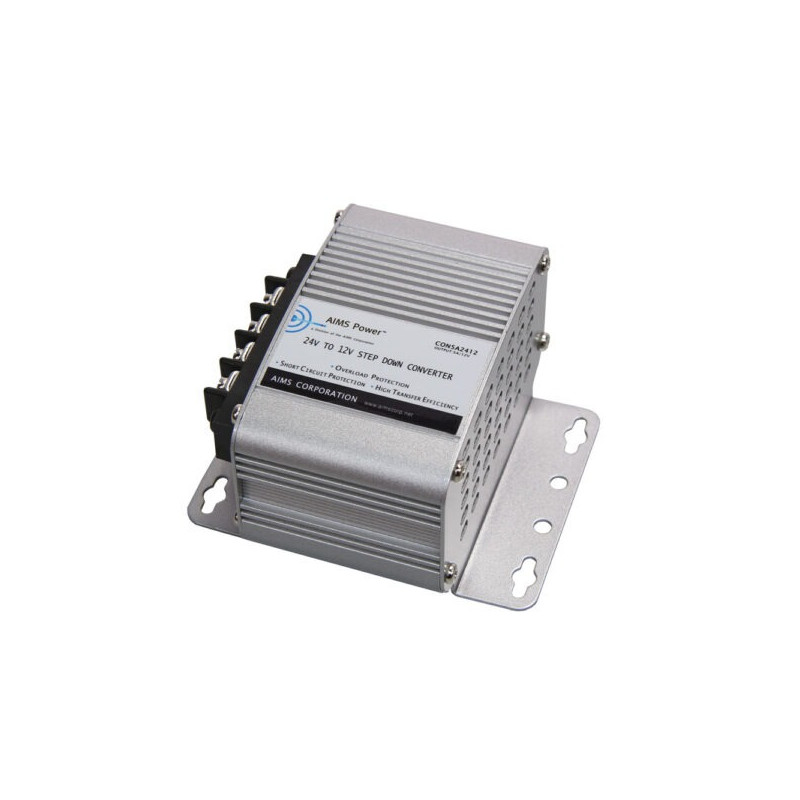

Aims Power CON5A2412 5 Amp 24V to 12V DC-DC Converter

CON5A2412

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$45.00

Details: Aims Power CON5A2412 5 Amp 24V to 12V DC-DC Converter

Also known as a buck converter, a step-down converter efficiently changes one level of voltage into another. This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at five amps.This 24V to 12VC DC to DC converter from AIMS Power has an aluminum case for optimal cooling. With this DC to DC converter, 24V to 12V step-down is easy and safe.

Features

  • 5 Amp 24 volt to 12 volt dc to dc converter
  • Green LED on front panel to confirm power on
  • Terminal block for DC input/output
  • Over Temperature protection
  • Over Load protection
  • DC Input Low Battery Shutdown
  • DC Input High Battery Shutdown
  • DC Output Short Protection
  • DC Output Over Current Protection
  • DC Output Over Voltage Protection
  • Transformer based
  • Aluminum case for optimal cooling
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor
  • CE EN61000-6-3:2007+A1:2011
  • CE EN61000-6-1:2007

Specifications

DC Input Voltage
20-37 Vdc
DC Output Voltage
12.5-13.5 Vdc
Output Current
5 amps
Output Current Max
6 amps
Conversion Effiency
More than 92%
DC Input Low Battery Shutdown
18 +/- 1 V
DC Input High Battery Shutdown
More than 38Vdc
DC Input Over Current Protection
3A Fuse
DC Input Polarity Protection
Fuse Protected
Over Temperature Protection
150 +/- 5 degrees F
DC Output Short Protection
Yes
DC Output Over Current Protection
6 amps
DC Output Over Voltage Protection
TVS Diode
Unit Weight
0.57 lbs
Unit Size L × W × H
3.62 × 3.39 × 2.2 inches

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
