ABH Hardware

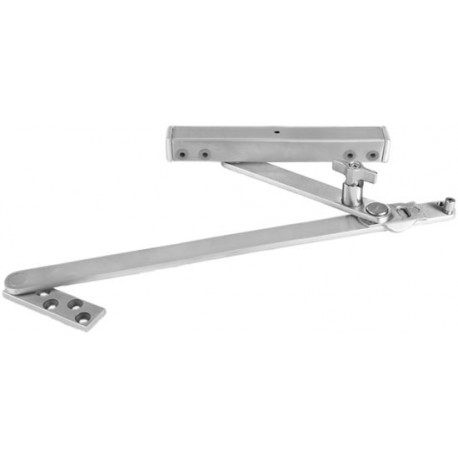

ABH Hardware, 8000 Series Surface Mount Overhead Extra Heavy Duty Door Holder

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$162.60

40% Off

$271.00

Details: ABH Hardware, 8000 Series Surface Mount Overhead Extra Heavy Duty Door Holder

8000 Series Surface Mount Overhead Stop & Holder

Surface Mount, Heavy Duty

Features

  • Surface Mount
  • Heavy Duty
  • NY SCA approved
  • Stop and hold-open functions available
  • Single acting doors only
  • Non-handed
  • For interior or exterior use on frequent traffic and heavy weight doors
  • Standard installation from 85° to 110° of opening (5° increments)
  • Shock absorbing spring provides 3° to 5° cushion before dead-stop
  • Standard fasteners supplied with sex bolts for 1-3/4" to 2-1/4" thick door (see options for other door thickness)
  • UL Listed as Miscellaneous Fire Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hurs (stop function only)
  • Average weight per unit = 5 lbs

Options

"AJB"
Angle Jam Brackets
"LL"
For lead-lined door applications
"LS" Option
Less Spring
"SEC"
Fasteners
"THICK"
Special Door Thickness
Special
Contact ABH if the dimension, hardware or specifications differ from what is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
8020 S8 Stop, Painted White, 27" - 32-7/16"
8011 US32D Hold Open, Satin Stainless Steel, 32-1/2" - 38-11/16"
8022 US9 Stop, 38-3/4" - 42-7/16", Bright bronze - clear coated
8011 US4 Satin Brass, Hold Open, 32-1/2" - 38-11/16"
8011 US10B Dark Bronze, Hold Open, 32-1/2" - 38-11/16"
8011 US10 Satin Bronze, Hold Open, 32-1/2" - 38-11/16"
8011 US3 Bright Brass, Hold Open, 32-1/2" - 38-11/16"
8011 US32 Bright Stainless Steel, Hold Open, 32-1/2" - 38-11/16"
8011 US26 Bright Chrome, Hold Open, 32-1/2" - 38-11/16"
8011 S1 Painted Aluminum, Hold Open, 32-1/2" - 38-11/16"
8011 S2 Painted Brass, Hold Open, 32-1/2" - 38-11/16"
8011 S3 Painted Bronze, Hold Open, 32-1/2" - 38-11/16"
8011 S4 Hold Open, Painted Black, 32-1/2" - 38-11/16"
8011 S5 Painted Dark Bronze, Hold Open, 32-1/2" - 38-11/16"
8011 S8 Hold Open, Painted White, 32-1/2" - 38-11/16"
