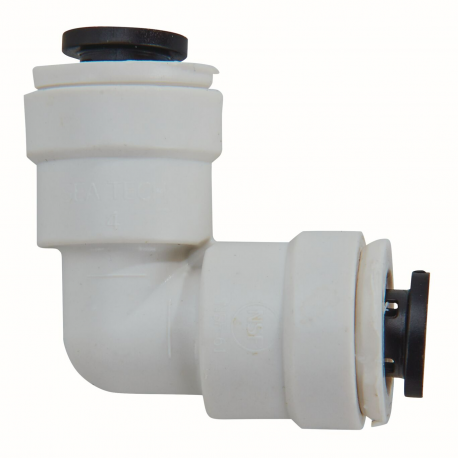

Watts PL-30 PEX Quick Connect Pipe Elbow

View larger

Watts PL-30 Mini Elbow

Model:

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Watts PL-30 Mini Elbow

This AquaLock mini elbow works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.

Features

No tools required for installation or removal
Rotates under pressure after installed for high flexibility during installation
Can be used for hot and cold water applications, including behind the wall applications
Works with plastic or soft copper tubing
Zero-leak connections
25-year limited warranty

Specifications

Inlet Connection Size: (PL-3002):1/4 IN;(PL-3032):1/2 IN;( PL-3022):3/8 IN
Inlet Connection Type: Push to connect
Lead Free: YES
Maximum Working Pressure-BAR: 10.30
Maximum Working Pressure-PSI: 150
Maximum Working Temperature-Celsius: 20.00
Maximum Working Temperature-Fahrenheit: 70
Minimum Temperature - Celsius: 0.56
Minimum Temperature-Fahrenheit: 33
Outlet Connection Size: (PL-3002):1/4 IN;(PL-3032):1/2 IN;( PL-3022):3/8 IN
Outlet Connection Type: Push to connect
Outlet Thread Type: Does Not Apply To Product
Suitable for Gas Service: No

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
