Reduced price! Rixson 127 Less All Parts 3/4" Offset Hung Floor Closer Body Only, Heavy Duty View larger

Rixson

Rixson 127 Less All Parts 3/4" Offset Hung Floor Closer Body Only, Heavy Duty

Note:-

"If a closer is needed for replacement, the arm, cover, cement case, top pivot and floor plate are omitted."

Item normally ships out within 7-10 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$1,634.83

25% Off

$2,179.77

Details: Rixson 127 Less All Parts 3/4" Offset Hung Floor Closer Body Only, Heavy Duty

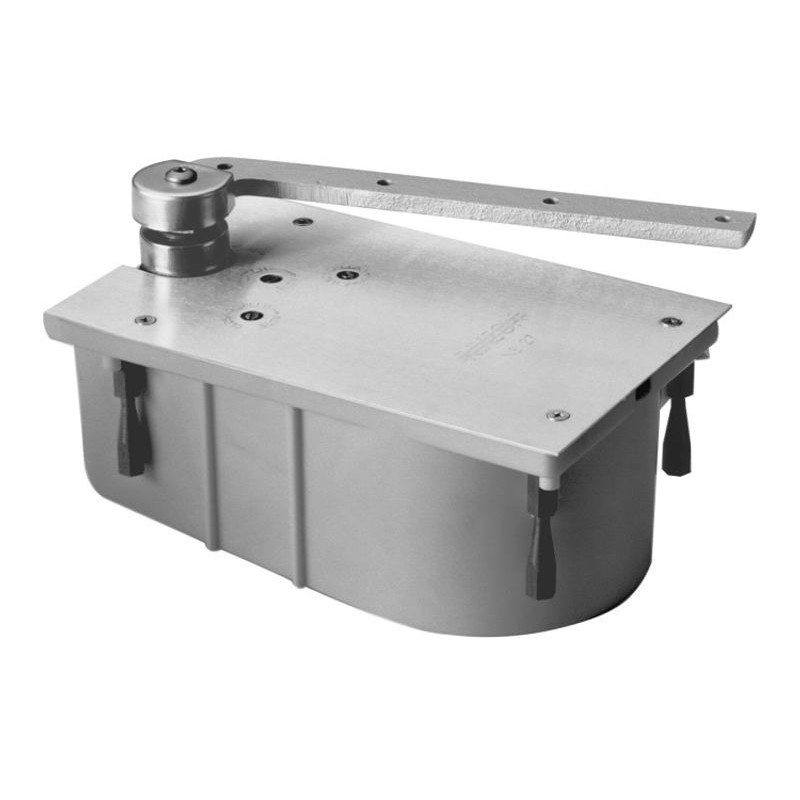

The 127 LAP is a 3/4" offset-hung floor closer body only (Less All Parts) for interior or exterior doors, designed for deep reveal door frame installation.

Features

  • Single acting, handed
  • Exterior or interior doors
  • 180 top pivot included
  • Deep reveal applications
  • M19 intermediate pivot(s) recommended for non-fire rated opening (order separately)
  • Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95° or 105°
  • Available non-hold open (N) or selective hold open (S) at same degree as dead stop
  • Separate and independent valves for closing speed, latch speed, and backcheck
  • Available with floor plate or threshold installation
  • Cycolac, rust-proof cement case
  • For arch top doors or applications where a 180 top pivot cannot be used, supply at least two M190 load-bearing intermediate pivots, mounted together at the top of the vertical edge (do not use 119 intermediate pivot)
  • Extended spindles available in 1/2" increments up to 2" longer than standard
  • Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot; each additional 30" (762mm) warrants another intermediate pivot
  • Door width up to 4' 0" (1219mm)
  • Door weight up to 250lbs.

Benefits

  • Closer has a tapered spindle and uses a unique bottom arm to allow door installation
  • Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
  • Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop
  • Built-in positive dead stop prevents door from swinging beyond the desired opening degree
  • Multiple valves provide precision adjustment and enhanced control
  • Weight of door is supported by floor closer
  • Aesthetically appealing way to support and control the door

Certifications

  • Buy American Act
  • Certain models UL Listed (F prefix)
  • Certain models meet ANSI A117.1 (PH prefix)
  • Trade Agreement Act (TAA)
