  5. INOX ED93F-MED0836 Grade 1 Heavy Duty, Mortise Exit Device, 36" Fire Rated, Satin Stainless Steel

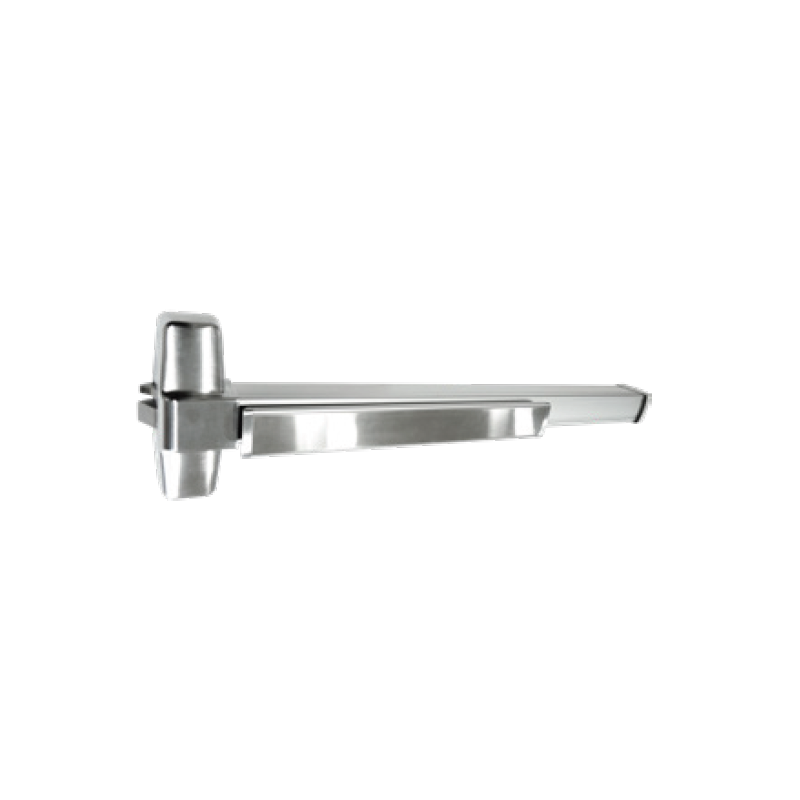

Reduced price! INOX ED93F Mortise, 36" Fire Rated, Finish-Satin Stainless Steel View larger

Inox Unison

INOX ED93F-MED0836 Grade 1 Heavy Duty, Mortise Exit Device, 36" Fire Rated, Satin Stainless Steel

ED93F-MED0836-

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$1,294.40

20% Off

$1,618.00

?

Details: INOX ED93F-MED0836 Grade 1 Heavy Duty, Mortise Exit Device, 36" Fire Rated, Satin Stainless Steel

ANSI/BHMA 156.5 Grade 1 Heavy Duty Mortise Exit Device

Features

  • INOX ED93F-MED mortise exit devices are suited for most single door applications. They can also be used on double doors when using open backed strikes
  • UL listed for Fire Exit Hardware, meets ANSI A156.3 Grade 1 standards and installs on a standard 86 pocket prep
  • Non-handed with a universal design that allows them to easily retro?t the Von Duprin 99 series installation when paired with INOX exit device trim
  • Fits all doors up to 36" in width and 1-3/4" in thickness. 48" width devices can be ordered as an option

Specifications

Device Lengths
3' - 2'2" to 3' (660mm to 914mm) door size, 4' - 2'9" to 4' (838mm to 1219mm) door size
Strikes
Standard ANSI Strike
Dogging Options
Dogging not available on this device
Electric Options
Alarm Kit 36" and 48" available; 1. QLR - Motor Driven Retraction, 2. REX - Request-to-Exit Switch, 3. LBM - Latchbolt Monitor Switch
Miscellaneous Options
GBK Glass Bead Kit, PA Panic Armor
Fasteners & Sex Bolts
Furnished with wood & machine screws
Mortise Lock
Grade 1 for 1-3/4" thick doors, reversible, 2-3/4" backset
Device Centerline from Finished Floor
41" (1041mm)
Center Case Dimensions
8-3/32" x 2-13/16" x 2-15/32" (206mm x 71mm x 63mm)
Mechanism Case Dimensions
2-3/16" w x 1-15/16" (55.4mm x 49.1mm)
Projections
Pushbar Neutral 3-3/4" (95.3mm), Pushbar Depressed 2-15/16" (74.5mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
