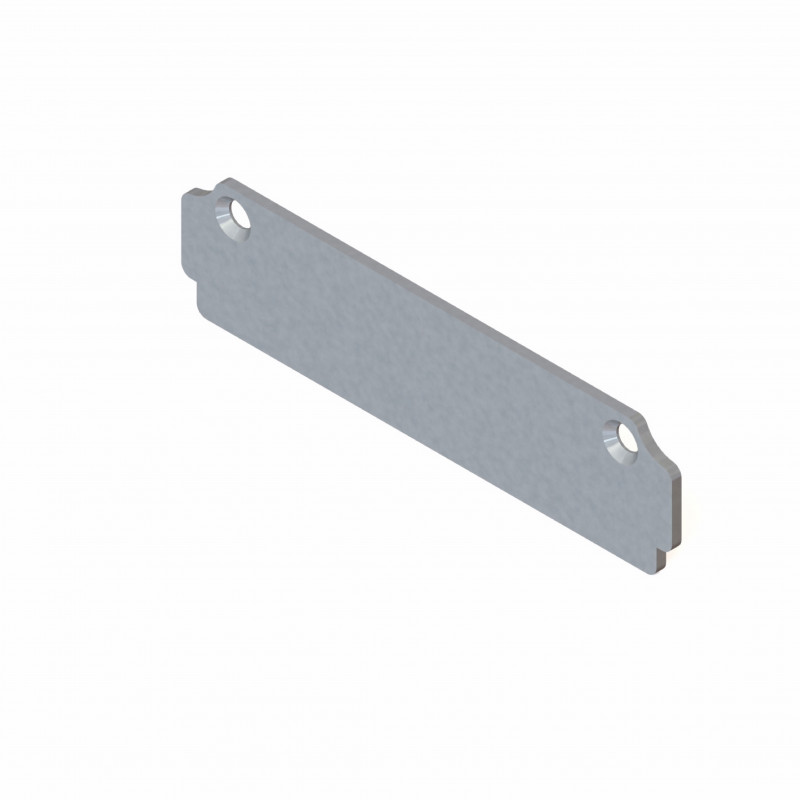

HES 1006-103 Full Keeper Shims for 1006 Series Electric Strikes

Reduced price! HES 1006-103 Full Keeper Shims for 1006 Series Electric Strikes

View larger

HES 1006-103 Full Keeper Shims for 1006 Series Electric Strikes

Model: 1006-103

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

HES Warranty

HES Compatibility Chart

Complete, One Box, Solutions	Standard, Models
HES		Folger Adam	Adams Rite	Von Duprin	RCI	Trine	SDC
1006CS, 1006CLB	1006J	712-75, 732-75		6211, 6400	F2164	4100	55
1006CS, 1006CLB	1006K, 1006KD, 1006KM	742-75		6210, 6400	F2164	4100
1006CS, 1006CDB	1006A, 1006AD, 1006AM
1006CS, 1006CDB	1006N, 1006ND, 1006NM			6210	F2164
1006CS, 1006CDB	1006T, 1006TD
1006CS, 1006CDB	1006H, 1006HD, 1006HM				F2164
1006CS, 1006CDB	1006E
1006CS	1006Z
	1006R
	1006J2	310-2, 310-2 3/4		6215, 6224, 6226
1006CDB	1006H-2	310-3-1		6216
4500C		742-75	7240, 7270	6210	F2164	4100
5000C	5000-501		7140, 7340, 7410, 7411	4200, 5100	L6514		25-4U
5000C	5000-501A		7101, 7160, 7300, 7440	4200, 5100	L6504		25-4U
	5000-502		7110, 7310, 7410	5100	L6508
	5000-503		7130, 7430		L6507
	5000-504
5200C	5200-501			5100	S6514, 7114, 7314	2012	45-4S
5200C	5200-501A			5100	S6504, 7104, 7304		45-4R
	5200-502			5100	S6508, 7108, 7308	2002	45-7R
	5200-503				S6507, 7107, 7307	2678	145-6R
	5200-504
7000C	7000-791	712, 732	7400, 7401, 7440
7000C	7000-792		7410, 7411
	7000-783		74R1, 74R2
	7000-786
	7000-789
7501	7501
8000C	8000-801, 8000-801A
	8000-801E, 8000-802, 8000-803
	8500 Series
9400	9400				0563	4850
9500	9500			6300	F0162	4800F
9600	9600				0162	4800
		310-20B		6222, 6225
		310-4		6212
9700	9700	310-4S				4801
		310-4-1, 310-4-2, 310-4-3, 310-4-30
		310-6-1, 310-6-2, 310-6-3, 310-6-8, 310-6-30

NOTE:This chart is offered as a convenience only. Reference should be made to the idividual manufactuer's catalogs for complete data as to exact equivalents. There may be some variation in physical size, electrical characteristics and durability between strikes of different manufacturers. HES assumes no liability for differenes between items compared. When compatibility is a concern, contact Customer Support at 800-626-7590 for application assistance. NOTE: The 109 trim adapter may be required for a neater appearance in retro fit application where the strike lop dimensions exceed 3-3/8". NOTE:This chart details the HES and Folger Adam products that can replace competitors products, but not necessarily the reverse.

Lock Cross Reference

ANSI Lock Description	Manufactuter	Electric Strikes
Mortise, Locksets, Mortise lockset, without a deadbolt	Arrow, Baldwin, Best, Marks, Omnia, PDQ	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006KM, RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 742-75
	Corbin Russwin, ML2000 and, Arrow	1600CS, 1006CS, 1600CLB, RF1006CLB, IC1006CLB 1600-1LB, 1006-KM, , RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 8500-852K, RF8500-852K, IC8500-852K, 742-75
	Sargent 7700, 8100, Schlage L*	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD, 1500C, 4500C, RF4500, IC4500, *8500-852L, RF8500-852L, IC8500-, 852L(Schlage L), 742-75
	Sargent 7900, 8200, 9200	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KM, RF1006-KM, IC1006-KM, 1500C, 4500C, 8500-851M, RF8500-851M, IC8500-851M, 742-75
	Accurate, Falcon, Kaba, Ilco/Unican, Yale 8700, (manufactured, after 2005), Yale 8800	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD 1500C, 4500C, RF4500, IC4500, 8500-852M, RF8500-852M, IC8500-852M
Mortise, Locksets Mortise lockset, with a , 1" deadbolt	Accurate, Almet, Arrow, Baldwin, Best, Marks, Corbin, Russwin, Falcon, Omnia, PDQ Schlage	1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AM, 1006-HM, 1006-, NM, 1006T*
Mortise, Locksets Mortise lockset, with a , 1" deadbolt	Sargent, Yale	1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AD*, 1006-HD, 1006-ND
Cylindrical , lockset Latchbolt for, aluminum stile, doors	All, manufacturers	5000, RF5000, IC5000, 1600-1LB, 1006-J, 7000C, RF7000, 1500C, IC7000, 5200, RF5200, IC5200
Cylindrical , lockset Cylindrical lockset, up to 5/8" throw	All manufacturers	1600CS, 1006CS, 5000, RF5000, IC5000, 7000C, RF7000, IC7000, 8000, RF8000, IC8000, 8300, RF8300, IC8300, V3, 712, 310-2
Cylindrical , lockset Cylindrical lockset, up to 3/4" throw	All Manufacturers	1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-J, RF1006-J, IC1006-J, 5200, RF5200, IC5200, 1500C, 4500C, RF4500, IC4500, 4500, RF7500, IC7500, 712-75, 310-75
Rim mounted Rim mounted exit, device up to 1/2", throw	All Manufacturers	7000-789, RF7000-789, IC7000-789, 9400, RF9400, IC9400
Rim mounted Rim mounted exit, device up to 3/4", throw	All Manufacturers	7000-783, RF7000-783, IC7000-783, 7000-786, RF7000-786, IC7000-786, 9500, RF9500, IC9500, 9600, RF9600, IC9600, 310-4
Rim mounted Rim mounted exit, deadbolt	Corbin Russwin, (Secure Bolt), Yale (Square, Bolt),	9700, 310-4S

HES and Folger Adam electric strikes are designed to be installed in accordance with the ANSI/BHMA A156.31 4-7/8" jam preparation.

When accommodating a cylindrical lock, the electric strike is to be installed centerline to centerline.

When accommodating a mortise lock, the centerline of the electric strike is to be installed 3/8" above the centerline of the mortise lock, except asnoted for individual strikes. Folger Adam 712 series and 310 series will need special alignment with used with a mortise lock.

HES electric strikes are all non-handed and designed for installation in hollow metal, concrete filled metal, aluminum and wood jambs.

Folger Adam electric strikes are all non-handed and designed for installation in hollow metal, aluminum and wood jambs.
