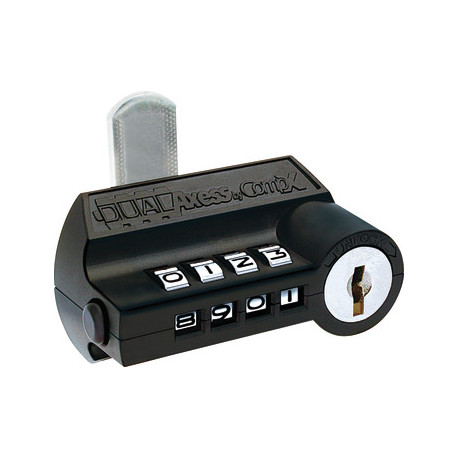

Hafele 235.62. Combination Cam Lock , DualAxess

Model: 235.62.

Write a review

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hafele 235.62. Combination Cam Lock , DualAxess

Features

Open using either a combination or override key
Once unlocked, rotate the housing 90D clockwise to unlatch
Combination can only be changed with the override key and current combination
Replaces standard cam locks to allow keyless access using your own personal code
Retrofits into an existing 19 mm (3/4") hole
Mounts vertically or horizontally on flush, overlay, or lipped/overlay applications
Attach the provided cam for 90D and can be re-oriented

Specifications

Dim. (L x W x H): 63 x 36 x 52 mm
Data-driven technical data table: 2305
Material: Lock housing: Die-cast, Cylinder: Brass
Cylinder length: 22 mm
Cylinder length: 7/8"
with key: Yes
Supplied with: 2 keys, Straight cam, Offset cam, Spacer, Spur washer, Cylinder nut, 2 screws

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government,
Retail & Strip Malls
Multifamily & Mixed-Use
