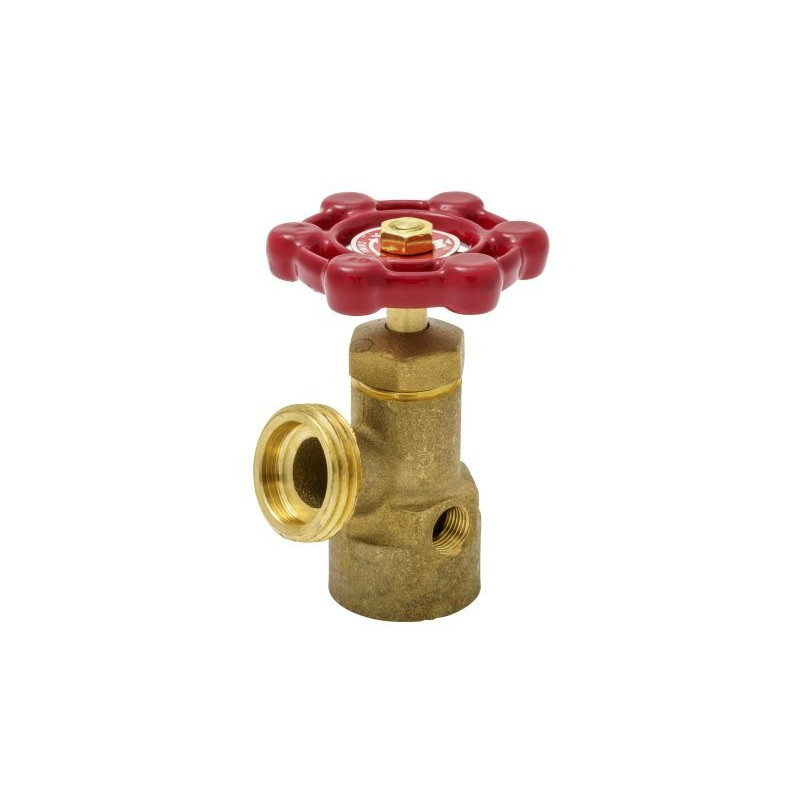

B&K LLC 102-194 Evaporative Cooler Valve, Brass, 3/4-In. FHT

View larger

BK Products 102-194 Evaporative Cooler Valve, Brass, 3/4-In. FHT

Model: 102-194

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: BK Products 102-194 Evaporative Cooler Valve, Brass, 3/4-In. FHT

The ProLine Series Evaporative Cooler Valve is essentially a boiler drain with a side tap allowing you to run a supply line to your evaporative cooler. The multi-turn handle provides for easy on/off operation with minimal effort. While turned to the off position the flow through the side tap is not obstructed providing continued supply to the evaporative cooler.

Features

Side tap allows water to flow to evaporative cooler
1/2-in FIP side tap connection
Built of brass for a long durable product life
Cast iron handle allows for easy on/off operation
3/4-in MHT outlet
Threaded inlet and branch complies with ANSI B1.20.1
MHT outlet complies with ANSI B1.20.7

Specifications

Inlet Diameter (in): 3/4
Inlet Connection: FHT
Outlet Diameter (in): 3/4
Outlet Connection: MHT
Working Pressure (PSI): 100
Maximum Temperature (degree F): 140
Working Temperature (degree F): 95
Minimum Temperature (degree F): 32
Product Material: Brass

Applications

residential and commercial plumbing

BK Products Warranty
