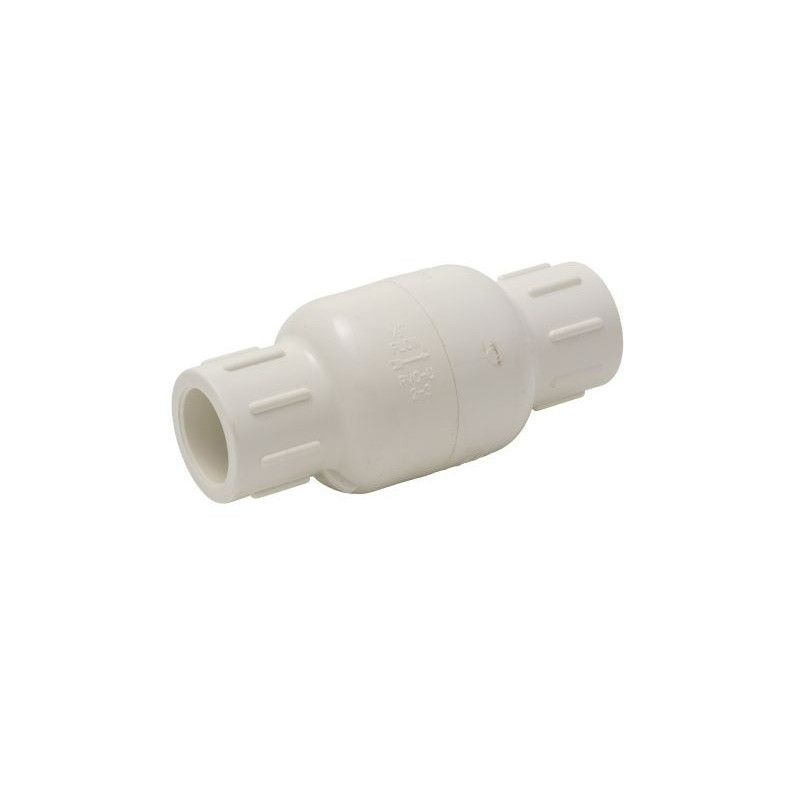

B&K LLC 101-60 PVC Check Valve, Solvent Weld, White, Schedule 40.

View larger

BK Products 101-60 PVC Check Valve, Solvent Weld, White, Schedule 40.

Model: 101-60

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: BK Products 101-60 PVC Check Valve, Solvent Weld, White, Schedule 40.

Permit water to flow in one direction within a line with the ProLine Series PVC Check Valve. It acts as a backflow prevention device to prevent water from backing up into the fresh water supply. A steel-spring poppet with a rubber o-ring is the internal mechanism preventing water backflow. An arrow is molded onto the valve body to ensure correct installation for proper flow control.

Features

Rated for 200 PSI at 73 degree F
Fits both Schedule 40 and Schedule 80 PVC pipe
Spring loaded poppet mechanism prevents backflow
Stainless steel spring for corrosion resistance and longer life
O-ring provides a water-tight seal
Not to be used for compressed air
Solvent ends comply with ASTM D2846

Specifications

Inlet Diameter (in): (101-603):1/2,( 101-604):3/4,( 101-605):1,( 101-606):1-1/4,( 101-607):1-1/2,( 101-608):2
Inlet Connection: SOLV
Outlet Diameter (in): (101-603):1/2,( 101-604):3/4,( 101-605):1,( 101-606):1-1/4,( 101-607):1-1/2,( 101-608):2
Outlet Connection: SOLV
Working Pressure (PSI): 150
Maximum Temperature (degree F): 113
Working Temperature (degree F): 73
Product Material: PVC
Minimum Temperature (degree F): 32
Minimum Pressure (PSI): 10

Applications

residential and commercial plumbing

BK Products Warranty
